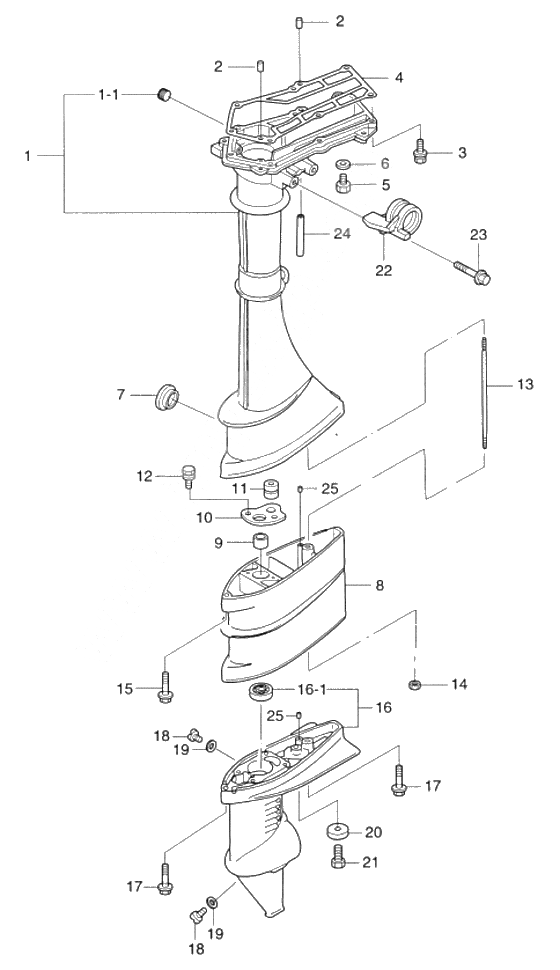

Drive shaft housing - gear case для Tohatsu MFS2A - 2006 года выпуска`
-
№АртикулНазвание
-
13ABQ61020-0 Drive shaft housing insin f2.5ab/3.5abDrive shaft housing insin f2.5ab/3.5ab
-
3ABQ61020-2 Drive shaft housing insin f2.5ab/3.5abDrive shaft housing insin f2.5ab/3.5ab
-
1-13H6-07257-0 Exhaust PlugExhaust Plug
-
2345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
3910113-5630 BoltBolt
-
43AB-61012-0 Drive Shaft Housing GasketDrive Shaft Housing Gasket
-
5910613-0808 BoltBolt
-
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
7369-61016-0 Grommet Drive Shaft HousingGrommet Drive Shaft Housing
-
83ABQ61100-0 Extension housing inlin f2.5ab/3.5ab
FOR TRANSOM LExtension housing inlin f2.5ab/3.5ab
FOR TRANSOM L -
93AB-60003-0 Drive shaft bushing
FOR TRANSOM LDrive shaft bushing
FOR TRANSOM L -
103AB-64332-0 Drive shaft bushing stopper
FOR TRANSOM LDrive shaft bushing stopper
FOR TRANSOM L -
11172-36008-0 Grommet
FOR TRANSOM LGrommet
FOR TRANSOM L -
12910113-5612 Bolt
FOR TRANSOM LBolt
FOR TRANSOM L -
133F0-61101-1 Stud Bolt
FOR TRANSOM LStud Bolt
FOR TRANSOM L -
14930113-0600 Nut
FOR TRANSOM LNut
FOR TRANSOM L -
153AB-60001-0 Bolt 6-30 precoated
FOR TRANSOM LBolt 6-30 precoated
FOR TRANSOM L -
3AB-60001-1 Bolt 6-30 precoatedBolt 6-30 precoated
-
163BMQ60000-0 Gear case f2.5ab/3.5abGear case f2.5ab/3.5ab
-
16-13AB-60213-0 Ball bearing 6000Ball bearing 6000
-
173AB-60001-0 Bolt 6-30 precoatedBolt 6-30 precoated
-
3AB-60001-1 Bolt 6-30 precoatedBolt 6-30 precoated
-
18332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
19332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
20338-60218-2 New partNew part
-
21910103-0616 BoltBolt
-
223ABQ62001-0 Steering bracketSteering bracket
-
3ABQ62001-1 Steering bracketSteering bracket
-
23910113-5835 BoltBolt
-
2498AB-3-0050 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
253AB-01111-0 Dowel Pin 6-12Dowel Pin 6-12
