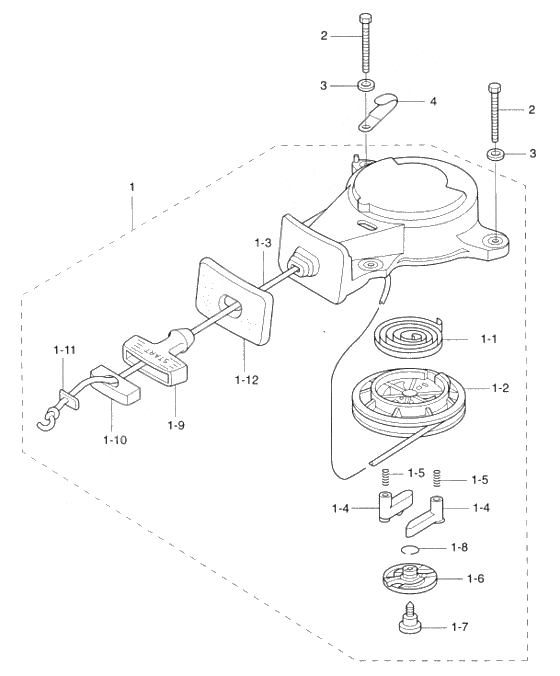

Recoil starter для Tohatsu MFS2A - 2006 года выпуска
-
№АртикулНазвание
-
13AB-05090-0 Recoil starterRecoil starter
-
1-13AB-05004-0 Starter SpringStarter Spring
-
1-103AB-05131-0 Rope anchorRope anchor
-
1-113AB-05134-0 Rope anchor plateRope anchor plate
-
1-123AA-67503-0 Seal Ruber,StaterSeal Ruber,Stater
-
1-23AB-05104-0 Reel f2.5a/3.5aReel f2.5a/3.5a
-
1-33AB-05013-0 New part
Ø 3.5-1200New part
Ø 3.5-1200 -
1-43AB-05003-0 RatchetRatchet
-
1-53AB-05012-0 Return SpringReturn Spring
-
1-63AB-05006-0 Friction PlateFriction Plate
-
1-73AB-05138-0 Starter shaft screwStarter shaft screw
-
1-83AB-05007-0 Friction SpringFriction Spring
-
1-93AB-05019-0 Starter HandleStarter Handle
-
2910103-0660 BoltBolt
-
33R0-66308-0 Washer
OR 3C8-66308-0Washer
OR 3C8-66308-0 -
4398-06972-0 Clamp,6.5-67PClamp,6.5-67P
