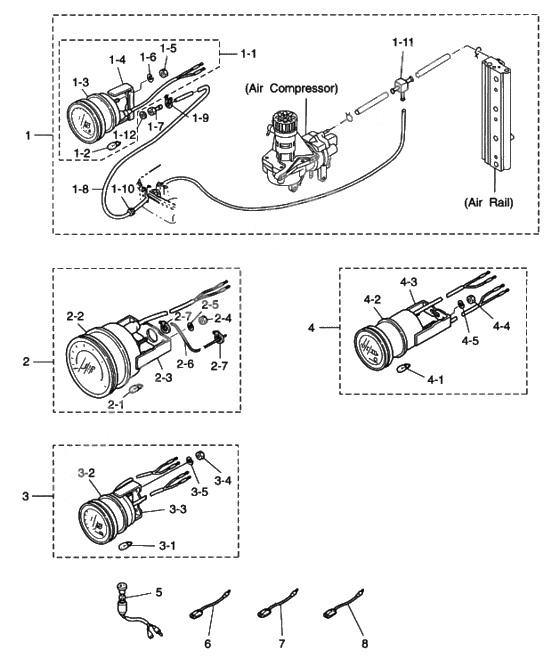

Optional parts (1) для Tohatsu MD115A - 2006 года выпуска`
-
№АртикулНазвание
-
13E0-72527-0 Water Pressure Meter KitWater Pressure Meter Kit
-
1-13E0-72598-0 Water Pressure Meter Ass'yWater Pressure Meter Ass'y
-
1-10345-67193-0 Grommet,16-2.5Grommet,16-2.5
-
1-11394-70013-0 Pipu Joint T-typePipu Joint T-type
-
1-12121-33159-0 Gasket 2-8-1Gasket 2-8-1
-
1-23B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
1-33B7-72655-0 Damper, MeterDamper, Meter
-
1-43B7-72663-0 Plate, FittingPlate, Fitting
-
1-5930203-0500 NutNut
-
1-6941303-0500 Spring WasherSpring Washer
-
1-73B7-72641-0 Nipple, Water Pressure MeterNipple, Water Pressure Meter
-
1-898AB-5-1000 New partNew part
-
1-9338-02215-0 ClipClip
-
23E0-72649-0 Speedometer 75mph Kit BSpeedometer 75mph Kit B
-
23E0-72648-0 Speedometer 50mph Kit BSpeedometer 50mph Kit B
-
2-13B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
2-23B7-72656-0 Damper, MeterDamper, Meter
-
2-33B7-72661-0 Plate, FittingPlate, Fitting
-
2-4930203-0500 NutNut
-
2-5941303-0500 Spring WasherSpring Washer
-
2-63B7-72650-0 Tube, Speedometer 6000mmTube, Speedometer 6000mm
-
2-73B7-72651-0 Band, SpeedometerBand, Speedometer
-
33E0-72529-0 Voltmeter Ass'yVoltmeter Ass'y
-
3-13B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
3-23B7-72655-0 Damper, MeterDamper, Meter
-
3-33B7-72662-0 Plate, FittingPlate, Fitting
-
3-4930203-0400 NutNut
-
3-5941303-0400 Spring WasherSpring Washer
-
43E0-72524-0 Hourmeter Ass'yHourmeter Ass'y
-
4-13B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
4-23B7-72655-0 Damper, MeterDamper, Meter
-
4-33B7-72664-0 Plate FittingPlate Fitting
-
4-4930203-0400 NutNut
-
4-5941303-0400 Spring WasherSpring Washer
-
5353-72521-1 Switch Meter LampSwitch Meter Lamp
-
6353-72546-0 Assist Cord(Red)
L=200Assist Cord(Red)
L=200 -
7353-72547-0 Assist Cord(blue)
L=200Assist Cord(blue)
L=200 -
8353-72548-0 Assist Cord(black)
L=200Assist Cord(black)
L=200
