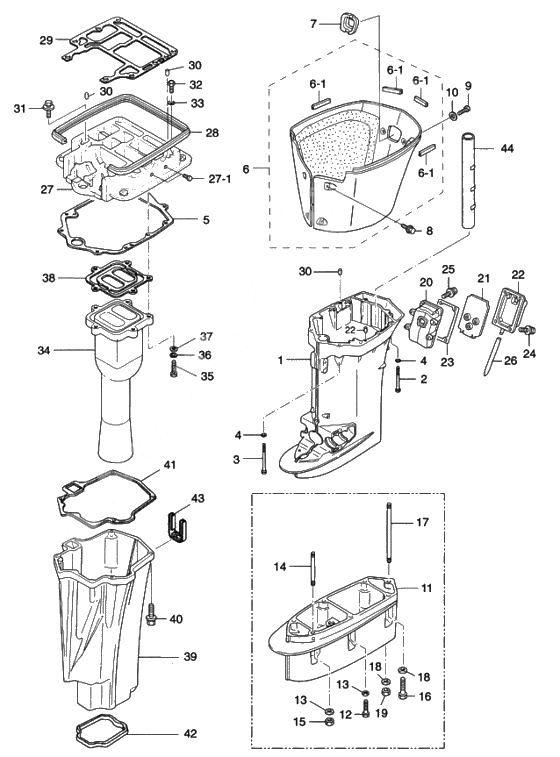

Drive shaft housing для Tohatsu MD115A - 2006 года выпуска`
-
№АртикулНазвание
-
13T1Q61030-0 Drive shaft housing l (amb)Drive shaft housing l (amb)
-
23C7-61017-1 Bolt,10-107Bolt,10-107
-
33C7-61018-1 Bolt,10-120Bolt,10-120
-
4940213-1000 WasherWasher
-
53C7-61012-0 Gasket drive shaft housingGasket drive shaft housing
-
63T1Q61225-0 Apron assy (amb)Apron assy (amb)
-
6-13T1-61213-0 Apron sealApron seal
-
73T1-61212-0 Apron grommetApron grommet
-
8910113-5612 BoltBolt
-
93T1-61184-0 Bolt & washerBolt & washer
-
9101E3-5616 Bolt & washerBolt & washer
-
103T1-61334-0 Bolt & washerBolt & washer
-
9101E3-5616 Bolt & washerBolt & washer
-
113B7Q61110-0 Extension housing ul (amb)
FOR TRANSOM ULExtension housing ul (amb)
FOR TRANSOM UL -
12916189-0835 Bolt 8-35
FOR TRANSOM ULBolt 8-35
FOR TRANSOM UL -
13940113-0800 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL -
14915313-0825 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL -
15930113-0800 Nut
FOR TRANSOM ULNut
FOR TRANSOM UL -
163B7-60001-2 Bolt, 10-40
FOR TRANSOM ULBolt, 10-40
FOR TRANSOM UL -
173B7-61112-0 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL -
18940213-1000 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL -
193B7-61114-0 Nut
FOR TRANSOM ULNut
FOR TRANSOM UL -
203T1Q61241-0 Idle exhaust passage (amb)Idle exhaust passage (amb)
-
213T1-61242-0 Separation idle exhaust passageSeparation idle exhaust passage
-
223T1Q61245-0 Cover idle exhaust passage (amb)Cover idle exhaust passage (amb)
-
233T1-61244-0 Gasket passage coverGasket passage cover
-
24910113-5620 BoltBolt
-
25910113-5635 BoltBolt
-
263T1-61097-0 Water outlet hoseWater outlet hose
-
273T1Q01300-0 Engine baseEngine base
-
27-13H6-07257-0 Exhaust PlugExhaust Plug
-
283B7-67116-0 Seal Rubber, Lower Cover
L=690Seal Rubber, Lower Cover
L=690 -
293C7-01303-0 Gasket, engine baseGasket, engine base
-
30345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
31910113-5635 BoltBolt
-
323C7-01312-0 Bolt, 8-50Bolt, 8-50
-
33940113-0800 WasherWasher
-
343T1-02311-0 Exhaust PipeExhaust Pipe
-
35910114-0835 BoltBolt
-
36941303-0800 Spring WasherSpring Washer
-
37940113-0800 WasherWasher
-
383C7-02312-0 Gasket, Exhaust PipeGasket, Exhaust Pipe
-
393D8-61180-0 Exhaust HousingExhaust Housing
-
40910113-5830 BoltBolt
-
413B7-61181-2 GasketGasket
-
423B7-61182-0 Grommet, exhaust housingGrommet, exhaust housing
-
433B7-61207-0 Grommet, Idle PortGrommet, Idle Port
-
443B7-61186-0 Reverse Gas PassageReverse Gas Passage
