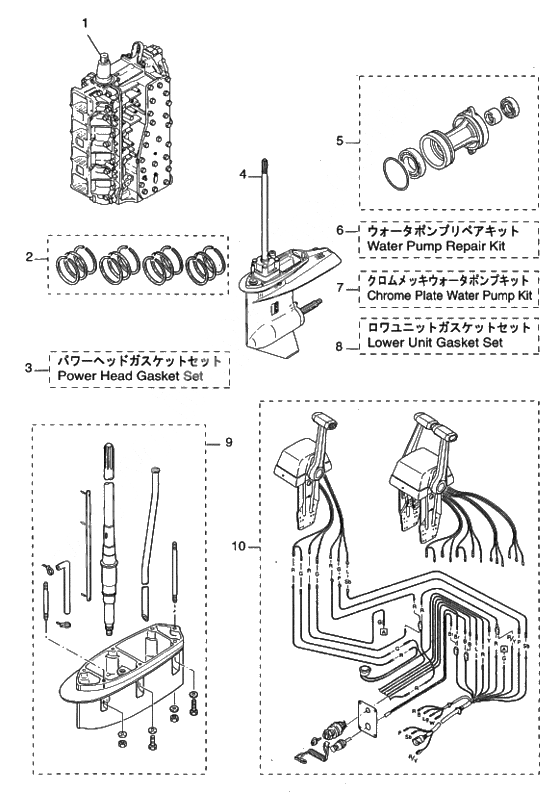

Assembly - kit для Tohatsu MD115A - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3T1B87110-0 Engine short block d115a
    INCL. ENGINE BASE GASKET & SPARK PLUG
    Engine short block d115a
    INCL. ENGINE BASE GASKET & SPARK PLUG
  • 3T1B87090-6 Engine short block d115a
    Engine short block d115a
  • 2
    3T1-87123-0 Piston ring set (standard)
    Piston ring set (standard)
  • 2
    3C7-00011-0 Piston ring 1st(std)
    Piston ring 1st(std)
  • 2
    3T1-87124-0 Piston ring set (.5mm o/z)
    Piston ring set (.5mm o/z)
  • 2
    3C7-00014-0 Поршневые кольца
    Поршневые кольца
  • 3
    3T1-87121-1 Power Head Gasket Set
    Power Head Gasket Set
  • 3T1-87121-3 Power Head Gasket Set
    Power Head Gasket Set
  • 3
    3T1-01005-0 Gasket cylinder head
    Gasket cylinder head
  • 3
    3T1-01024-0 Gasket cylinder head cover
    Gasket cylinder head cover
  • 3
    3T9-01032-0 Gasket,thermostat cap
    Gasket,thermostat cap
  • 3
    171-00053-0 O-Ring
    CRANK CASE HEAD
    O-Ring
    CRANK CASE HEAD
  • 3
    3T9-00121-0 Oil Seal,35-58-9
    LOWER SIDE
    Oil Seal,35-58-9
    LOWER SIDE
  • 3
    3C7-01215-0 Oil Seal, 19.6-35-10
    DRIVE SHAFT
    Oil Seal, 19.6-35-10
    DRIVE SHAFT
  • 3
    3C7-02305-0 Gasket, exhaust cover
    Gasket, exhaust cover
  • 3
    3C7-02104-1 Gasket inlet manifold
    Gasket inlet manifold
  • 3
    3T1-02245-0 Gasket air chamber cover
    Gasket air chamber cover
  • 3
    3T1-00121-0 Oil seal 35-58-9
    UPPER SIDE
    Oil seal 35-58-9
    UPPER SIDE
  • 3
    3C7-01403-0 O-Ring
    COIL BRACKET
    O-Ring
    COIL BRACKET
  • 3
    3B7-02235-0 O-Ring A
    FILTER
    O-Ring A
    FILTER
  • 3
    3B7-02236-0 O???? b
    FILTER
    O???? b
    FILTER
  • 3
    3C8-71016-0 Gasket 36-52-2
    OIL TANK
    Gasket 36-52-2
    OIL TANK
  • 3
    3C7-01303-0 Gasket, engine base
    Gasket, engine base
  • 3
    3T1-10104-0 Gasket throttle body
    Gasket throttle body
  • 4
    3C7Q87302-3 Lower unit (l)
    FOR TRANSOM L
    Lower unit (l)
    FOR TRANSOM L
  • 3C7Q87302-9 Lower unit (l)
    Lower unit (l)
  • 4
    3C7Q87304-3 Lower unit ul (amb)
    FOR TRANSOM UL
    Lower unit ul (amb)
    FOR TRANSOM UL
  • 3C7Q87304-9 Lower unit ul (amb)
    Lower unit ul (amb)
  • 5
    3B7Q87323-1 Propeller shaft housing assy (amb)
    Propeller shaft housing assy (amb)
  • 6
    3C7-87322-1 ウォ-タ-ポンプリペアキット
    ウォ-タ-ポンプリペアキット
  • 6
    3C7-65021-1 Impeller water pump
    Impeller water pump
  • 6
    3B7-65022-0 Key, water pump impeller
    Key, water pump impeller
  • 6
    3C7-65011-0 Liner Water Pump Case
    Liner Water Pump Case
  • 6
    3C7-65025-0 Guide Plate Water Pump
    Guide Plate Water Pump
  • 6
    3C7-65029-0 Gasket Pump Guide Plate
    Gasket Pump Guide Plate
  • 6
    3C7-65018-0 Seal Water Pump Case
    Seal Water Pump Case
  • 6
    916113-0885 Bolt
    Bolt
  • 6
    940113-0800 Washer
    Washer
  • 7
    3C7-65231-0 Chrome Plated Water Pump Kit
    Chrome Plated Water Pump Kit
  • 7
    3C7-65021-1 Impeller water pump
    Impeller water pump
  • 7
    3C7-65238-0 Liner chrome plated water pump case
    Liner chrome plated water pump case
  • 7
    3C7-65239-0 Guide plate chrome plated water pump
    Guide plate chrome plated water pump
  • 7
    3C7-65029-0 Gasket Pump Guide Plate
    Gasket Pump Guide Plate
  • 7
    3C7-65018-0 Seal Water Pump Case
    Seal Water Pump Case
  • 8
    3C7-87321-0 Lower Unit Gasket Set
    Lower Unit Gasket Set
  • 8
    3C7-61012-0 Gasket drive shaft housing
    Gasket drive shaft housing
  • 8
    3C7-02312-0 Gasket, Exhaust Pipe
    Gasket, Exhaust Pipe
  • 8
    3B7-61181-2 Gasket
    Gasket
  • 8
    332-60006-0 Gasket (8.1x15.1)
    Gasket (8.1x15.1)
  • 8
    3B7-60016-1 Gasket, 10.1-15-1
    Gasket, 10.1-15-1
  • 8
    3B7-60103-0 O-Ring
    PROPELLER SHAFT
    O-Ring
    PROPELLER SHAFT
  • 8
    3B7-60111-0 Oil seal, 30-50-12
    PROPELLER SHAFT
    Oil seal, 30-50-12
    PROPELLER SHAFT
  • 8
    3C7-60223-1 Oil seal, 22-42-7
    PUMP CASE LOWER
    Oil seal, 22-42-7
    PUMP CASE LOWER
  • 8
    3B7-65015-0 O-Ring
    PUMP CASE LOWER
    O-Ring
    PUMP CASE LOWER
  • 8
    346-64084-0 Shim, 35-41.9-0.5
    PUMP CASE LOWER OIL SEAL
    Shim, 35-41.9-0.5
    PUMP CASE LOWER OIL SEAL
  • 8
    3C7-65029-0 Gasket Pump Guide Plate
    Gasket Pump Guide Plate
  • 8
    3C7-65018-0 Seal Water Pump Case
    Seal Water Pump Case
  • 8
    345-66021-0 O-Ring
    CAM ROD
    O-Ring
    CAM ROD
  • 8
    3B7-66023-0 O-Ring
    BUSHING
    O-Ring
    BUSHING
  • 8
    3B7-60219-0 Packing, Trim Tab
    Packing, Trim Tab
  • 9
    3C7Q87314-0 Extension housing kit ul (amb)
    FOR TRANSOM UL
    Extension housing kit ul (amb)
    FOR TRANSOM UL
  • 3C7Q87314-2 Extension housing kit ul (amb)
    Extension housing kit ul (amb)
  • 9
    3B7Q61110-0 Extension housing ul (amb)
    Extension housing ul (amb)
  • 9
    916189-0835 Bolt 8-35
    Bolt 8-35
  • 9
    915313-0825 Stud Bolt
    Stud Bolt
  • 9
    930113-0800 Nut
    Nut
  • 9
    940113-0800 Washer
    Washer
  • 9
    3B7-60001-2 Bolt, 10-40
    Bolt, 10-40
  • 9
    3B7-61112-0 Stud Bolt
    Stud Bolt
  • 9
    940213-1000 Washer
    Washer
  • 9
    3B7-61114-0 Nut
    Nut
  • 9
    3C7-64303-2 Drive Shaft UL
    Drive Shaft UL
  • 9
    3B7-66014-1 Cam Rod UL
    Cam Rod UL
  • 9
    951403-3516 New part
    New part
  • 9
    951403-3510 New part
    New part
  • 9
    98AL-4-0920 Lube pipe (1 ea.=1m) must use 393011600m check valve
    Lube pipe (1 ea.=1m) must use 393011600m check valve
  • 98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valve
    Lube pipe (1 ea.=1m) must use 393011600m check valve
  • 9
    3C7-65120-0 Water Pipe UL
    Water Pipe UL
  • 10
    3T5Q84490-1 Binnacle mount control box kit single 40/50/70/90 tldi (amb)
    SEE FIGURES 24-4 & 24-9
    Binnacle mount control box kit single 40/50/70/90 tldi (amb)
    SEE FIGURES 24-4 & 24-9
  • 10
    3T5Q84540-1 Binnacle mount control box kit dual 40/50/70/90 tldi (amb)
    FOR TWIN N.A.F.N.
    Binnacle mount control box kit dual 40/50/70/90 tldi (amb)
    FOR TWIN N.A.F.N.
