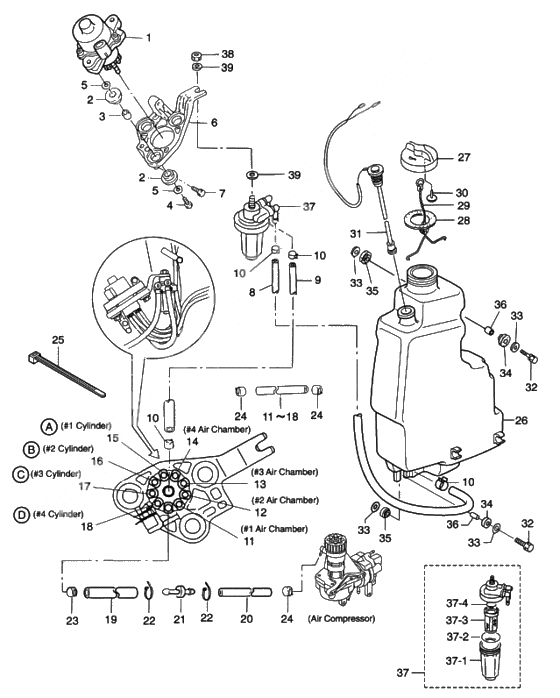

Oil pump для Tohatsu MD115A - 2006 года выпуска`
-
№АртикулНазвание
-
13T1-09010-0 Electric oil pumpElectric oil pump
-
2345-67113-0 Mount RubberMount Rubber
-
33C7-67114-0 Spacer 8.4-12-17Spacer 8.4-12-17
-
4910113-0835 BoltBolt
-
53B7-63730-0 WasherWasher
-
63T7-09072-0 Bracket, Oil PumpBracket, Oil Pump
-
7910103-7630 BoltBolt
-
899AA-6-1000 Vinyl Pipe
OIL TANK - OIL FILTERVinyl Pipe
OIL TANK - OIL FILTER -
999AA-6-1000 Vinyl Pipe
OIL FILTER - OIL PUMPVinyl Pipe
OIL FILTER - OIL PUMP -
10121-35143-0 ClipClip
-
1199AA-2-1000 Vinyl Pipe
OIL PUMP - #1 AIR BOXVinyl Pipe
OIL PUMP - #1 AIR BOX -
1299AA-2-1000 Vinyl Pipe
OIL PUMP - #2 AIR BOXVinyl Pipe
OIL PUMP - #2 AIR BOX -
1399AA-2-1000 Vinyl Pipe
OIL PUMP - #3 AIR BOXVinyl Pipe
OIL PUMP - #3 AIR BOX -
1499AA-2-1000 Vinyl Pipe
OIL PUMP - #4 AIR BOXVinyl Pipe
OIL PUMP - #4 AIR BOX -
1599AA-2-1000 Vinyl Pipe
OIL PUMP - #1 CYLINDERVinyl Pipe
OIL PUMP - #1 CYLINDER -
1699AA-2-1000 Vinyl Pipe
OIL PUMP - #2 CYLINDERVinyl Pipe
OIL PUMP - #2 CYLINDER -
1799AA-2-1000 Vinyl Pipe
OIL PUMP - #3 CYLINDERVinyl Pipe
OIL PUMP - #3 CYLINDER -
1899AA-2-0180 Vinyl pipe (1 ea.=1 meter)
OIL PUMP - #4 CYLINDERVinyl pipe (1 ea.=1 meter)
OIL PUMP - #4 CYLINDER -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
1999AA-4-0040 Vinyl pipe (1 ea.=1 meter)
OIL PUMP - NIPPLE JOINTVinyl pipe (1 ea.=1 meter)
OIL PUMP - NIPPLE JOINT -
99AA-4-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
2099AA-2-1000 Vinyl Pipe
NIPPLE JOINT - AIR COMPRESSORVinyl Pipe
NIPPLE JOINT - AIR COMPRESSOR -
213T7-09076-0 Joint, NippleJoint, Nipple
-
223T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
23151-35002-0 ClipClip
-
243B7-09052-0 Clip 6.8Clip 6.8
-
369-70098-2 Clip 6.8Clip 6.8
-
25369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
263T1-71010-0 Oil TankOil Tank
-
273C8-71015-0 Cap Oil TankCap Oil Tank
-
283C8-71016-0 Gasket 36-52-2Gasket 36-52-2
-
293C8-71017-0 Hook Tank CapHook Tank Cap
-
303C8-71018-0 Check Valve Oil TankCheck Valve Oil Tank
-
313T9-71020-0 Oir Level SensorOir Level Sensor
-
32910103-6630 BoltBolt
-
33346-67115-0 WasherWasher
-
34346-67113-0 Mount RubberMount Rubber
-
353B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
36346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
373C7-71030-0 Filter Ass'yFilter Ass'y
-
37-13B7-02237-0 CupCup
-
37-23B7-02235-0 O-Ring AO-Ring A
-
37-33C7-71033-0 FilterFilter
-
37-43B7-02236-0 O???? bO???? b
-
38930113-0800 NutNut
-
39940113-0800 WasherWasher
