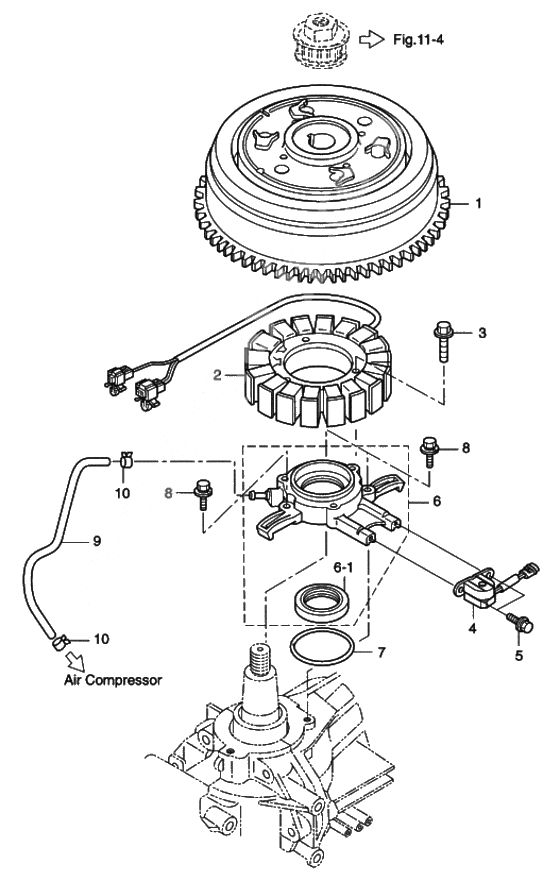

Magneto для Tohatsu MD115A - 2006 года выпуска`
-
№АртикулНазвание
-
13T1-06191-0 Flywheel cupFlywheel cup
-
23T1-06123-0 AlternatorAlternator
-
3910103-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
43T1-06145-0 Pick-up coil-(cps)
CRANK POSITION SENSORPick-up coil-(cps)
CRANK POSITION SENSOR -
5910103-6512 BoltBolt
-
63T1-06007-0 Coil bracket assy (with oil seal)
WITH OIL SEALCoil bracket assy (with oil seal)
WITH OIL SEAL -
6-13T1-00121-0 Oil seal 35-58-9Oil seal 35-58-9
-
73C7-01403-0 O-RingO-Ring
-
8910103-5620 BoltBolt
-
999AA-2-1000 Vinyl Pipe
COMPRESSOR - COIL BRACKETVinyl Pipe
COMPRESSOR - COIL BRACKET -
103B7-09052-0 Clip 6.8Clip 6.8
-
369-70098-2 Clip 6.8Clip 6.8
