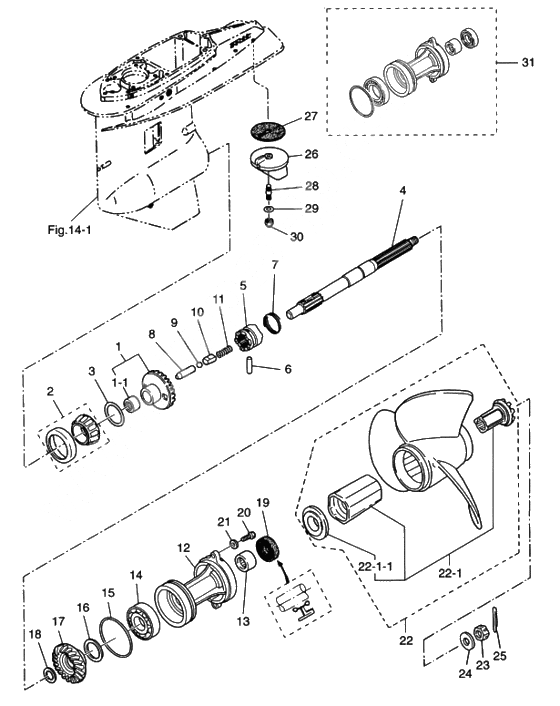

Gear case (propeller shaft) для Tohatsu MD115A - 2006 года выпуска`

№

Артикул

Название
1

3C7-64010-0 Bevel Gear A Ass'y

Bevel Gear A Ass'y

25 490 ₽
1-1

3B7-64011-0 Needle Bearing, 25-32-26

Needle Bearing, 25-32-26

2 500 ₽
2

3C7-60215-0 Bearing, 30209

Bearing, 30209

3 820 ₽
3

3B7-64015-0 Shim, 47-57-0.15

Shim, 47-57-0.15

140 ₽
3

3B7-64016-0 Shim, 47-57-0.1

Shim, 47-57-0.1

210 ₽
4

3B7-64211-0 Propeller Shaft

Propeller Shaft

31 090 ₽
5

3C7-64215-0 Clutch

Clutch

20 050 ₽
6

3B7-64218-0 Clutch Pin

Clutch Pin

280 ₽
7

3B7-64219-1 Snap, Clutch Pin

Snap, Clutch Pin

650 ₽
8

3B7-64223-0 Push rod, clutch

Push rod, clutch

640 ₽
9

965002-1609 Ball

Ball

320 ₽
10

3B7-64222-0 Spring Holder, Clutch

Spring Holder, Clutch

1 780 ₽
11

346-64221-0 Spring Clutch

Spring Clutch

170 ₽
12

3B7Q60101-1 Housing propeller shaft (amb)

Housing propeller shaft (amb)

14 920 ₽
13

3B7-60211-0 Needle Bearing, 30-40-30

Needle Bearing, 30-40-30

3 690 ₽
14

9601-0-6208 Ball bearing, 6208

Ball bearing, 6208

1 950 ₽
15

3B7-60103-0 O-Ring

O-Ring

1 310 ₽
16

3B7-64036-0 Shim , 42-50-0.15

Shim , 42-50-0.15

140 ₽
16

3B7-64037-0 Shim, 42-50-0.1

Shim, 42-50-0.1

140 ₽
17

3C7-64093-0 Bevel Gear C

Bevel Gear C

0 ₽
18

3B7-64032-0 Washer, t=3.2

Washer, t=3.2

1 150 ₽
18

3B7-64034-0 Washer, t=3.0

Washer, t=3.0

1 150 ₽
18

3B7-64035-0 Washer, t=3.0

Washer, t=3.0

1 150 ₽
19

3B7-60111-0 Oil seal, 30-50-12

Oil seal, 30-50-12

3 290 ₽
20

3C7-60108-0 Bolt 8-30 precoated

Bolt 8-30 precoated

280 ₽
21

940213-0800 Washer

Washer

60 ₽
22

3T1W64523-0 Prop m-11 115tldi only (14 x 11 pitch)
OLD PART NO. 3E0W64176-0

Prop m-11 115tldi only (14 x 11 pitch)
OLD PART NO. 3E0W64176-0

27 650 ₽
3T1B64523-0 Prop m-11 115tldi only (14 x 11 pitch)

Prop m-11 115tldi only (14 x 11 pitch)

27 710 ₽
22

3T1W64527-0 Prop m-13 115tldi only (14.0 x 13 pitch)
OLD PART NO. 3E0W64181-0

Prop m-13 115tldi only (14.0 x 13 pitch)
OLD PART NO. 3E0W64181-0

24 030 ₽
3T1B64527-0 Prop m-13 115tldi only (14.0 x 13 pitch)

Prop m-13 115tldi only (14.0 x 13 pitch)

28 980 ₽
22

3T1W64532-0 Prop m-15 115tldi only (13.75 x 15 pitch)
OLD PART NO. 3E0W64185-0

Prop m-15 115tldi only (13.75 x 15 pitch)
OLD PART NO. 3E0W64185-0

24 030 ₽
22

3T1W64534-0 Prop m-16 115tldi only (13.25 x 16 pitch)
OLD PART NO. 3E0W64187-0

Prop m-16 115tldi only (13.25 x 16 pitch)
OLD PART NO. 3E0W64187-0

27 650 ₽
3T1B64534-0 Prop m-16 115tldi only (13.25 x 16 pitch)

Prop m-16 115tldi only (13.25 x 16 pitch)

27 710 ₽
22

3T1W64536-0 Prop m-17 115tldi only (13.25 x 17 pitch)
OLD PART NO. 3E0W64189-0

Prop m-17 115tldi only (13.25 x 17 pitch)
OLD PART NO. 3E0W64189-0

24 030 ₽
3T1B64536-0 Prop m-17 115tldi only (13.25 x 17 pitch)

Prop m-17 115tldi only (13.25 x 17 pitch)

27 710 ₽
22

3T1W64541-0 Prop m-19 115tldi only (13.0 x 19 pitch)
OLD PART NO. 3E0W64194-0

Prop m-19 115tldi only (13.0 x 19 pitch)
OLD PART NO. 3E0W64194-0

27 650 ₽
3T1B64541-0 Prop m-19 115tldi only (13.0 x 19 pitch)

Prop m-19 115tldi only (13.0 x 19 pitch)

27 710 ₽
22

3T1W64545-0 Prop m-21 115tldi only (12.75 x 21 pitch)
OLD PART NO. 3E0W64196-0

Prop m-21 115tldi only (12.75 x 21 pitch)
OLD PART NO. 3E0W64196-0

27 650 ₽
3HKB64545-0 Prop m-21 115tldi only (12.75 x 21 pitch)

Prop m-21 115tldi only (12.75 x 21 pitch)

27 710 ₽
22-1

3T1-64238-0 Propeller hub kit md115 tldi
OLD PART NO. 3E0-64238-0

Propeller hub kit md115 tldi
OLD PART NO. 3E0-64238-0

14 890 ₽
22-1-1

3E0-64235-0 Foward Thrust Washer

Foward Thrust Washer

6 940 ₽
23

353-64121-0 Nut Propeller

Nut Propeller

1 150 ₽
24

345-64124-0 Washer

Washer

600 ₽
25

951503-0325 Split Pin

Split Pin

210 ₽
26

3B7-60217-1 Trim Tab

Trim Tab

1 670 ₽
27

3B7-60219-0 Packing, Trim Tab

Packing, Trim Tab

540 ₽
28

915303-0825 Stud Bolt

Stud Bolt

280 ₽
29

940103-0800 Washer -> 940113-0800

Washer -> 940113-0800

120 ₽
30

930403-0800 Nylon Nut

Nylon Nut

280 ₽
31

3B7Q87323-1 Propeller shaft housing assy (amb)

Propeller shaft housing assy (amb)

14 840 ₽
