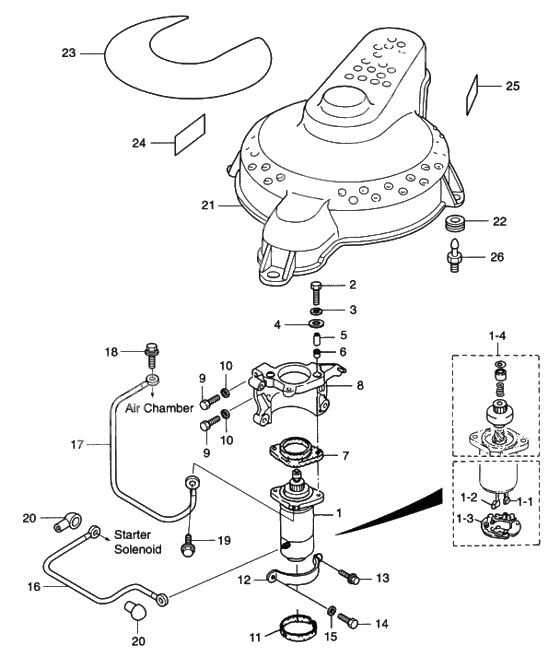

Electric parts (starter motor) для Tohatsu MD115A - 2006 года выпуска`
-
№АртикулНазвание
-
1353-76010-4 Starter Motor Ass'yStarter Motor Ass'y
-
1-1353-76012-3 Brush (+)Brush (+)
-
1-2353-76013-3 Brush (-)Brush (-)
-
1-3353-76017-1 Brush SpringBrush Spring
-
1-4353-76015-1 Pinion Ass'yPinion Ass'y
-
2910103-0840 BoltBolt
-
3941303-0800 Spring WasherSpring Washer
-
43B7-63730-0 WasherWasher
-
53C7-76003-0 Spacer 8.4-12-21.5Spacer 8.4-12-21.5
-
63C7-76004-0 Mount Rubber AMount Rubber A
-
73C7-76005-0 Mount Rubber BMount Rubber B
-
83T1B05101-0 Bracket starter motorBracket starter motor
-
9916114-0845 BoltBolt
-
10941322-0800 Spring WasherSpring Washer
-
113C7-76007-0 Rubber Starter MotorRubber Starter Motor
-
12353-76009-2 Band Starter MotorBand Starter Motor
-
13910113-5840 BoltBolt
-
14910103-0820 BoltBolt
-
15940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
163U1-76141-0 Starter cable (l=400mm)
L=500Starter cable (l=400mm)
L=500 -
173T1-76141-0 Starter cord (l=300mm)
L=300Starter cord (l=300mm)
L=300 -
18910103-5612 BoltBolt
-
19910103-5816 BoltBolt
-
203A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
213T1-06301-0 Cover ring gearCover ring gear
-
223T1-67005-0 Grommet 16-2.5Grommet 16-2.5
-
233T1-72181-0 Caution decalCaution decal
-
243Y9-72194-0 Label FuseLabel Fuse
-
253Y7-72026-0 Spark Plug DecalSpark Plug Decal
-
261E0-36056-0 Ring gear cover hookRing gear cover hook
