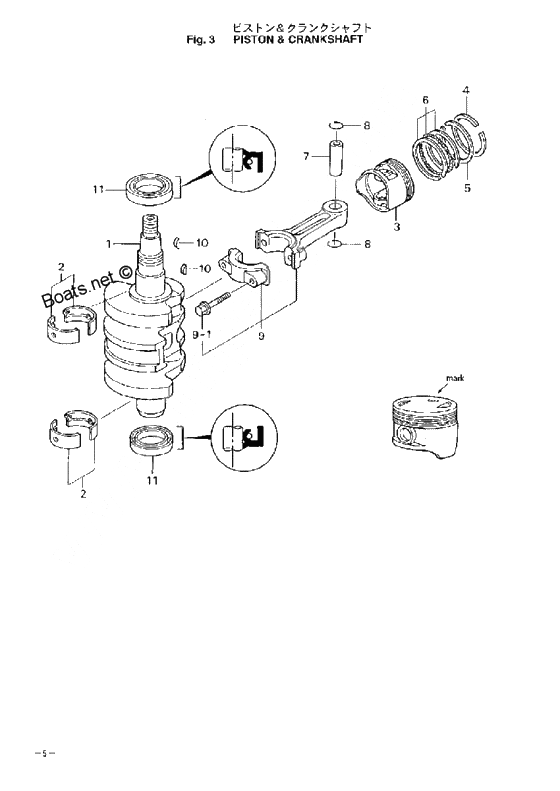

Piston & crank shaft для Tohatsu MFS9.8A2 - 2005 года выпуска`
-
№АртикулНазвание
-
13V1-00030-1 Crankshaft Ass'y
# 010322XD-Crankshaft Ass'y
# 010322XD- -
23V1-07407-0 Bearing(Black)
t=1.5, 0/0.006Bearing(Black)
t=1.5, 0/0.006 -
23V1-07408-0 Bearring(brown)
t=1.5, 0.006/0.012Bearring(brown)
t=1.5, 0.006/0.012 -
33V1-00004-0 Piston 0.5mm o/s
OptionPiston 0.5mm o/s
Option -
33V1-00001-0 PistonPiston
-
43V1-00011-0 Piston Ring TOPPiston Ring TOP
-
43V1-00014-0 Piston Ring 0.5mm O/S
OptionPiston Ring 0.5mm O/S
Option -
53V1-00012-0 Piston Ring 2ndPiston Ring 2nd
-
53V1-00015-0 Piston Ring 2nd (0.5mm O/S)
OptionPiston Ring 2nd (0.5mm O/S)
Option -
63V1-00016-0 Piston Ring Oil 0.5mm O/S
OptionPiston Ring Oil 0.5mm O/S
Option -
63V1-00013-0 Piston Ring OilPiston Ring Oil
-
7332-00021-0 Палец поршняПалец поршня
-
8350-00024-1 Clip piston pinClip piston pin
-
93V1-00040-0 Connecting RodConnecting Rod
-
9-13H6-00059-0 Bolt, Connecting RodBolt, Connecting Rod
-
103T5-10131-0 Key, Drive PulleyKey, Drive Pulley
-
113V1-00121-0 Oil Seal 30-45-8Oil Seal 30-45-8
