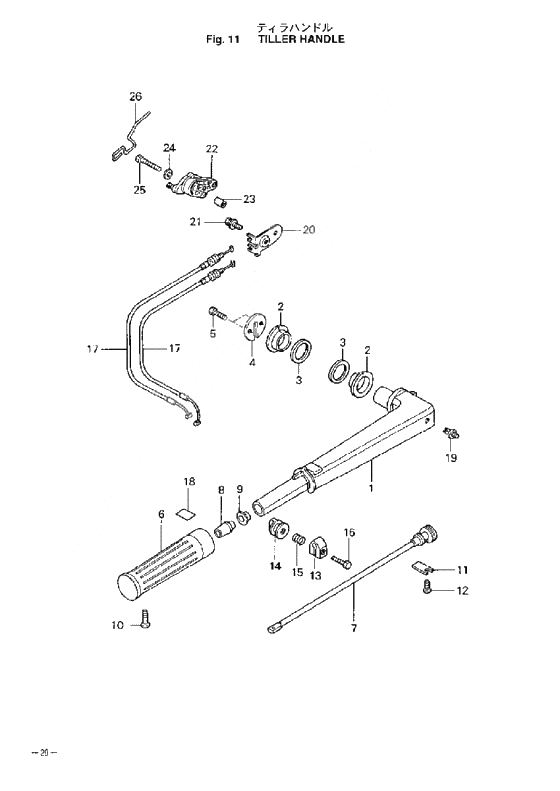

Steering handle (tiller handle) для Tohatsu MFS9.8A2 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3V1S63011-0 Румпель
    for MF & EF
    Румпель
    for MF & EF
  • 2
    3V1-63102-0 Bushing
    for MF & EF
    Bushing
    for MF & EF
  • 3
    3V1-63108-1 Washer
    for MF & EF
    Washer
    for MF & EF
  • 4
    3V1-63107-0 Cover
    for MF & EF
    Cover
    for MF & EF
  • 6
    3R3-63012-0 Grip
    for MF & EF
    Grip
    for MF & EF
  • 7
    3V1-63041-0 Throttle Shaft
    for MF & EF
    Throttle Shaft
    for MF & EF
  • 8
    3H6-63048-0 Rubber, Shrottle Shaft
    for MF & EF
    Rubber, Shrottle Shaft
    for MF & EF
  • 9
    3H6-63510-0 Bushing
    for MF & EF
    Bushing
    for MF & EF
  • 10
    921803-0518 Stud Bolt
    for MF & EF
    Stud Bolt
    for MF & EF
  • 11
    3B2-63063-0 Supporter Throttle Shaft
    for MF & EF
    Supporter Throttle Shaft
    for MF & EF
  • 13
    3V1-63035-0 Friction Picece
    for MF & EF
    Friction Picece
    for MF & EF
  • 14
    3V1-63077-0 Adjusting Nut
    for MF & EF
    Adjusting Nut
    for MF & EF
  • 15
    3V1-63036-0 Spring Washer
    for MF & EF
    Spring Washer
    for MF & EF
  • 17
    3V1-63600-0 Throttle Wire
    for MF & EF
    Throttle Wire
    for MF & EF
  • 18
    3V9-72019-0 Label,Throttle
    for MF & EF
    Label,Throttle
    for MF & EF
  • 19
    350-67154-0 New part
    for MF & EF
    New part
    for MF & EF
  • 20
    3V1-63508-0 Throttle wire bracket
    Throttle wire bracket
  • 21
    910113-5612 Bolt
    Bolt
  • 22
    3V1-63622-0 Throttle Dram
    Throttle Dram
  • 23
    346-67114-0 Spacer 6.2-9-15.7
    Spacer 6.2-9-15.7
  • 24
    3C8-66308-0 New part
    New part
  • 26
    3V1-63617-1 Throttle Rod
    # 023322XD-
    Throttle Rod
    # 023322XD-
