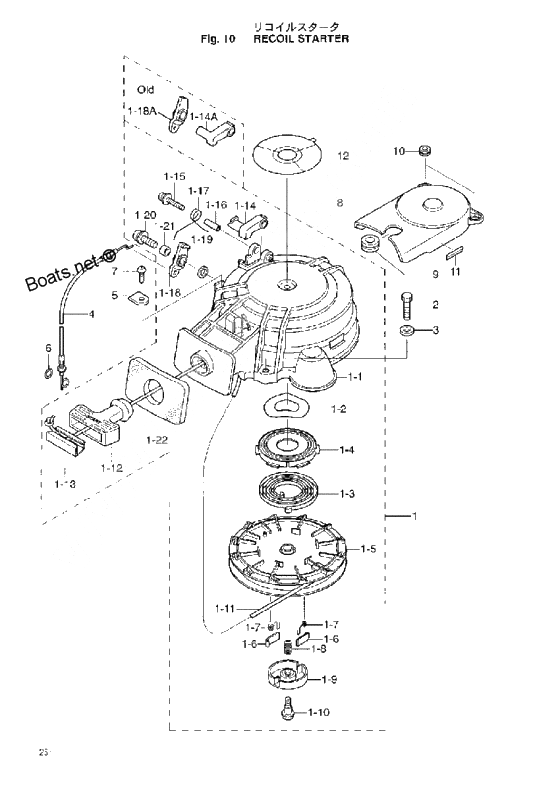

Recoil starter для Tohatsu MFS9.8A2 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3AA-05090-0 Recoil starter
    # 023322XD-
    Recoil starter
    # 023322XD-
  • 1
    3V1-05090-0 Recoil starter ass'y
    -# 018314XD
    Recoil starter ass'y
    -# 018314XD
  • 1-1
    3AA-05098-0 Starter Case
    , # 023322XD-
    Starter Case
    , # 023322XD-
  • 1-1
    3V1-05098-0 Starter Case
    , -# 018314XD
    Starter Case
    , -# 018314XD
  • 1-10
    3R1-05138-1 Bolt, Starter Shaft
    , or 3B2-05138-0
    Bolt, Starter Shaft
    , or 3B2-05138-0
  • 1-11
    3AA-05013-0 Stater Rope
    , тИЕ4.5 - 1620, or 3B2-05013-0
    Stater Rope
    , тИЕ4.5 - 1620, or 3B2-05013-0
  • 1-12
    3AA-05019-0 Stater Handle
    , # 023322XD-
    Stater Handle
    , # 023322XD-
  • 1-12
    3R1-05019-0 Starter Handle
    , -# 018314XD
    Starter Handle
    , -# 018314XD
  • 1-13
    3R1-05131-0 Rope anchor
    Rope anchor
  • 1-14
    3AA-05252-0 Stater Lock
    , # 023322XD-
    Stater Lock
    , # 023322XD-
  • 1-14A
    3R1-05252-0 Starter Lock
    , -# 018314XD, or 338-05252-0
    Starter Lock
    , -# 018314XD, or 338-05252-0
  • 1-15
    921503-5430 Stud Bolt
    Stud Bolt
  • 1-16
    3R1-05255-0 Coller Starter Lock Shaft
    Coller Starter Lock Shaft
  • 1-17
    3R1-05216-0 Spring, Starter Lock
    Spring, Starter Lock
  • 1-18
    3AA-05253-0 Cam stater lock
    Cam stater lock
  • 1-18A
    3V1-05253-0 Starter lock cam
    Starter lock cam
  • 1-19
    940113-0600 Washer
    Washer
  • 1-2
    3V1-05259-0 Washer
    Washer
  • 1-20
    921503-7616 Stud Bolt
    Stud Bolt
  • 1-21
    3R1-05215-0 collar,6.1-8-6.5
    collar,6.1-8-6.5
  • 1-22
    3AA-67503-0 Seal Ruber,Stater
    Seal Ruber,Stater
  • 1-3
    3R1-05004-0 Stater Spring
    -# 018314XD or 3B2-05010-0 (with Case)
    Stater Spring
    -# 018314XD or 3B2-05010-0 (with Case)
  • 1-3
    3AA-05004-0 Spring Washer
    , # 023322XD-
    Spring Washer
    , # 023322XD-
  • 1-4
    3R1-05125-0 Case, Stater Spring
    Case, Stater Spring
  • 1-5
    3V1-05104-1 Reel
    Reel
  • 1-6
    3R1-05003-1 Ratchet
    , or 3B2-05003-0
    Ratchet
    , or 3B2-05003-0
  • 1-7
    3R1-05012-0 Return Spring
    Return Spring
  • 1-8
    3R1-05007-0 Spring Washer
    , or 369-05007-0
    Spring Washer
    , or 369-05007-0
  • 1-9
    3R1-05006-1 Friction Plate
    , or 3B2-05006-0
    Friction Plate
    , or 3B2-05006-0
  • 3
    3C8-66308-0 New part
    2 for EF & EP
    New part
    2 for EF & EP
  • 4
    3V1-05207-0 Wire,Starter Lock
    Wire,Starter Lock
  • 5
    332-66033-0 Retainer Cam Shift
    Retainer Cam Shift
  • 6
    3C7-03271-0 O-Ring
    O-Ring
  • 7
    3V1-05913-0 Tapping Screw
    Old Part No. 3V1-05208-0
    Tapping Screw
    Old Part No. 3V1-05208-0
  • 8
    3V1-06308-0 Cover Belt
    Cover Belt
  • 9
    3V1-06302-0 Rubber Mount
    Rubber Mount
  • 10
    172-36008-0 Grommet
    Grommet
  • 11
    3H6-72026-0 Label, Spark Plug
    Label, Spark Plug
  • 12
    3R0-72181-0 Caution Label B
    Caution Label B
