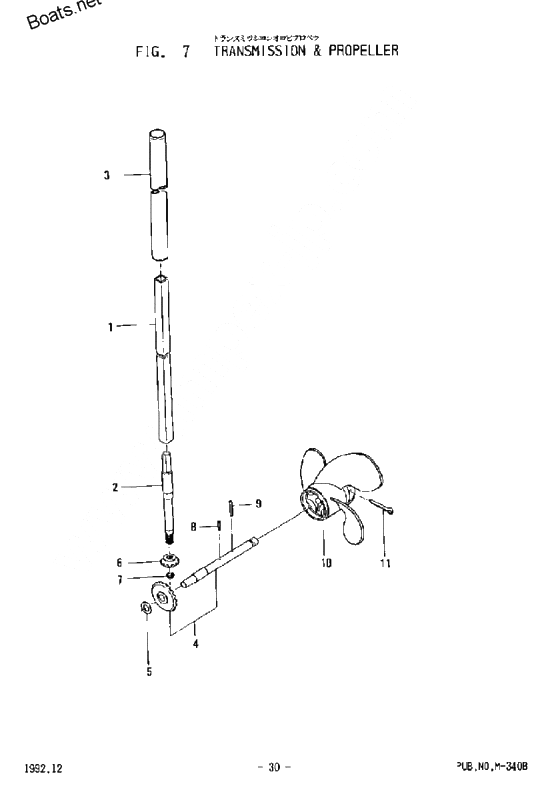

Transmission & propeller для Tohatsu M2.5A - 2005 года выпуска`
-
№АртикулНазвание
-
1309-64312-1 Drive shaft s upperDrive shaft s upper
-
1309-64313-1 Drive shaft l upperDrive shaft l upper
-
2309-64311-1 Drive shaft lowerDrive shaft lower
-
3309-64322-0 Guard pipe s drive shaftGuard pipe s drive shaft
-
3309-64323-0 Guard pipe l drive shaftGuard pipe l drive shaft
-
4309-64210-0 Propeller shaft ass'yPropeller shaft ass'y
-
5309-64012-0 Liner, bevel gear aLiner, bevel gear a
-
6309-64020-0 Bevel Gear BBevel Gear B
-
7945-32080-0 E-RingE-Ring
-
8309-65022-0 Шпонка крылаткиШпонка крылатки
-
9309-64122-1 Shear pin?309-64122-0Shear pin?309-64122-0
-
10309-64106-0 Prop 3 blade resin (7.4 dia. x 5.7 pitch)
66581-Prop 3 blade resin (7.4 dia. x 5.7 pitch)
66581- -
10309-64107-0 Propeller g6 (aluminium) (3x188x
Option, 66581Propeller g6 (aluminium) (3x188x
Option, 66581 -
10314-64103-0 Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plasticProp 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
-
314B64103-0 Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plasticProp 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
-
11951503-0435 New partNew part
-
1309-64312-1 Drive shaft s upperDrive shaft s upper
-
1309-64313-1 Drive shaft l upperDrive shaft l upper
-
2309-64311-1 Drive shaft lowerDrive shaft lower
-
3309-64322-0 Guard pipe s drive shaftGuard pipe s drive shaft
-
3309-64323-0 Guard pipe l drive shaftGuard pipe l drive shaft
-
4309-64210-0 Propeller shaft ass'yPropeller shaft ass'y
-
5309-64012-0 Liner, bevel gear aLiner, bevel gear a
-
6309-64020-0 Bevel Gear BBevel Gear B
-
7945-32080-0 E-RingE-Ring
-
8309-65022-0 Шпонка крылаткиШпонка крылатки
-
9309-64122-1 Shear pin?309-64122-0Shear pin?309-64122-0
-
10309-64106-0 Prop 3 blade resin (7.4 dia. x 5.7 pitch)
66581-Prop 3 blade resin (7.4 dia. x 5.7 pitch)
66581- -
10309-64107-0 Propeller g6 (aluminium) (3x188x
Option, 66581Propeller g6 (aluminium) (3x188x
Option, 66581 -
10314-64103-0 Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plasticProp 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
-
314B64103-0 Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plasticProp 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
-
11951503-0435 New partNew part
