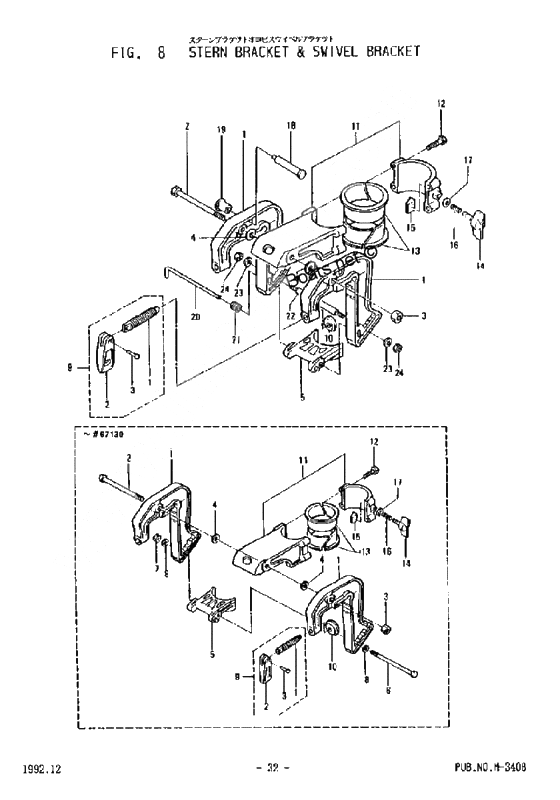

Stern bracket & swivel bracket для Tohatsu M2.5A - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    309-62111-0 Stern bracket
    -61630
    Stern bracket
    -61630
  • 1
    309-62111-2 Stern bracket
    Blue, Interchangeable with Older and Newer Parts, 61631-81965
    Stern bracket
    Blue, Interchangeable with Older and Newer Parts, 61631-81965
  • 1
    332-62103-0 Винт струбцины
    -61630
    Винт струбцины
    -61630
  • 1
    309S62111-4 Stern bracket
    Gray, Not Interchangeable, 81966-
    Stern bracket
    Gray, Not Interchangeable, 81966-
  • 1
    369-62103-0 Винт струбцины
    Interchangeable with Older and Newer, Parts, 61631-
    Винт струбцины
    Interchangeable with Older and Newer, Parts, 61631-
  • 2
    309-62115-0 Bolt, stern bracket
    -61630
    Bolt, stern bracket
    -61630
  • 2
    307-62102-0 Handle, clamp screw
    Blue, -81965
    Handle, clamp screw
    Blue, -81965
  • 2
    309-62115-1 Bolt, stern bracket
    Interchangeable with Older and Newer, Parts, 61631-
    Bolt, stern bracket
    Interchangeable with Older and Newer, Parts, 61631-
  • 2
    N07-62102-0 Handle, clamp screw
    Gray, Not Interchangeable, 81966-
    Handle, clamp screw
    Gray, Not Interchangeable, 81966-
  • 3
    930406-0800 Nylon Nut
    Nylon Nut
  • 3
    332-62104-0 Pin, clamp screw
    Pin, clamp screw
  • 4
    307-62116-0 Washer, stern bracket
    Washer, stern bracket
  • 5
    309-62212-0 Thrust supporter
    Blue, -81965
    Thrust supporter
    Blue, -81965
  • 5
    309-62212-2 Thrust supporter
    Gray, Not Interchangeable, 81966-
    Thrust supporter
    Gray, Not Interchangeable, 81966-
  • 6
    309-62211-0 Bolt thrust supporter
    Bolt thrust supporter
  • 7
    930-46060-0 Nut, thrust supporter
    Nut, thrust supporter
  • 8
    940-13060-0 Washer
    Washer
  • 9
    307-62100-0 Clamp screw assy
    -61630
    Clamp screw assy
    -61630
  • 9
    369-62100-0 Clamp screw assy
    Blue, Interchangeable with Older and Newer Parts, 61631-81965
    Clamp screw assy
    Blue, Interchangeable with Older and Newer Parts, 61631-81965
  • 10
    332-62101-0 Pad clamp screw
    Pad clamp screw
  • 11
    309-62320-0 Swivel bracket assy
    Blue, -81965
    Swivel bracket assy
    Blue, -81965
  • 11
    N09-62391-0 Swivel bracket assy a
    Gray, Not Interchangeable, 81966-
    Swivel bracket assy a
    Gray, Not Interchangeable, 81966-
  • 11
    N09-62392-0 Swivel bracket assy b
    Gray, Not Interchangeable, 81966-
    Swivel bracket assy b
    Gray, Not Interchangeable, 81966-
  • 13
    309-62321-1 Pivot bushing
    Pivot bushing
  • 14
    309S62442-1 Steering adjust screw
    Gray, Not Interchangeable, 81966-
    Steering adjust screw
    Gray, Not Interchangeable, 81966-
  • 14
    309-62442-0 Steering adjust screw
    Blue, -81965
    Steering adjust screw
    Blue, -81965
  • 15
    309-62441-1 Friction Piece
    Friction Piece
  • 16
    309-62446-0 Steering adjust spring
    Steering adjust spring
  • 18
    309-62464-0 Tilt Stopper
    67131-
    Tilt Stopper
    67131-
  • 19
    309-62463-0 Knob Tilt Stopper
    67131-
    Knob Tilt Stopper
    67131-
  • 20
    309-62121-0 Thrust Rod
    67131-
    Thrust Rod
    67131-
  • 22
    309-62118-0 Distance piece bracket
    67131-
    Distance piece bracket
    67131-
  • 1
    309-62111-0 Stern bracket
    -61630
    Stern bracket
    -61630
  • 1
    309-62111-2 Stern bracket
    Blue, Interchangeable with Older and Newer Parts, 61631-81965
    Stern bracket
    Blue, Interchangeable with Older and Newer Parts, 61631-81965
  • 1
    332-62103-0 Винт струбцины
    -61630
    Винт струбцины
    -61630
  • 1
    309S62111-4 Stern bracket
    Gray, Not Interchangeable, 81966-
    Stern bracket
    Gray, Not Interchangeable, 81966-
  • 1
    369-62103-0 Винт струбцины
    Interchangeable with Older and Newer, Parts, 61631-
    Винт струбцины
    Interchangeable with Older and Newer, Parts, 61631-
  • 2
    309-62115-0 Bolt, stern bracket
    -61630
    Bolt, stern bracket
    -61630
  • 2
    307-62102-0 Handle, clamp screw
    Blue, -81965
    Handle, clamp screw
    Blue, -81965
  • 2
    309-62115-1 Bolt, stern bracket
    Interchangeable with Older and Newer, Parts, 61631-
    Bolt, stern bracket
    Interchangeable with Older and Newer, Parts, 61631-
  • 2
    N07-62102-0 Handle, clamp screw
    Gray, Not Interchangeable, 81966-
    Handle, clamp screw
    Gray, Not Interchangeable, 81966-
  • 3
    930406-0800 Nylon Nut
    Nylon Nut
  • 3
    332-62104-0 Pin, clamp screw
    Pin, clamp screw
  • 4
    307-62116-0 Washer, stern bracket
    Washer, stern bracket
  • 5
    309-62212-0 Thrust supporter
    Blue, -81965
    Thrust supporter
    Blue, -81965
  • 5
    309-62212-2 Thrust supporter
    Gray, Not Interchangeable, 81966-
    Thrust supporter
    Gray, Not Interchangeable, 81966-
  • 6
    309-62211-0 Bolt thrust supporter
    Bolt thrust supporter
  • 7
    930-46060-0 Nut, thrust supporter
    Nut, thrust supporter
  • 8
    940-13060-0 Washer
    Washer
  • 9
    307-62100-0 Clamp screw assy
    -61630
    Clamp screw assy
    -61630
  • 9
    369-62100-0 Clamp screw assy
    Blue, Interchangeable with Older and Newer Parts, 61631-81965
    Clamp screw assy
    Blue, Interchangeable with Older and Newer Parts, 61631-81965
  • 10
    332-62101-0 Pad clamp screw
    Pad clamp screw
  • 11
    309-62320-0 Swivel bracket assy
    Blue, -81965
    Swivel bracket assy
    Blue, -81965
  • 11
    N09-62391-0 Swivel bracket assy a
    Gray, Not Interchangeable, 81966-
    Swivel bracket assy a
    Gray, Not Interchangeable, 81966-
  • 11
    N09-62392-0 Swivel bracket assy b
    Gray, Not Interchangeable, 81966-
    Swivel bracket assy b
    Gray, Not Interchangeable, 81966-
  • 13
    309-62321-1 Pivot bushing
    Pivot bushing
  • 14
    309S62442-1 Steering adjust screw
    Gray, Not Interchangeable, 81966-
    Steering adjust screw
    Gray, Not Interchangeable, 81966-
  • 14
    309-62442-0 Steering adjust screw
    Blue, -81965
    Steering adjust screw
    Blue, -81965
  • 15
    309-62441-1 Friction Piece
    Friction Piece
  • 16
    309-62446-0 Steering adjust spring
    Steering adjust spring
  • 18
    309-62464-0 Tilt Stopper
    67131-
    Tilt Stopper
    67131-
  • 19
    309-62463-0 Knob Tilt Stopper
    67131-
    Knob Tilt Stopper
    67131-
  • 20
    309-62121-0 Thrust Rod
    67131-
    Thrust Rod
    67131-
  • 22
    309-62118-0 Distance piece bracket
    67131-
    Distance piece bracket
    67131-
