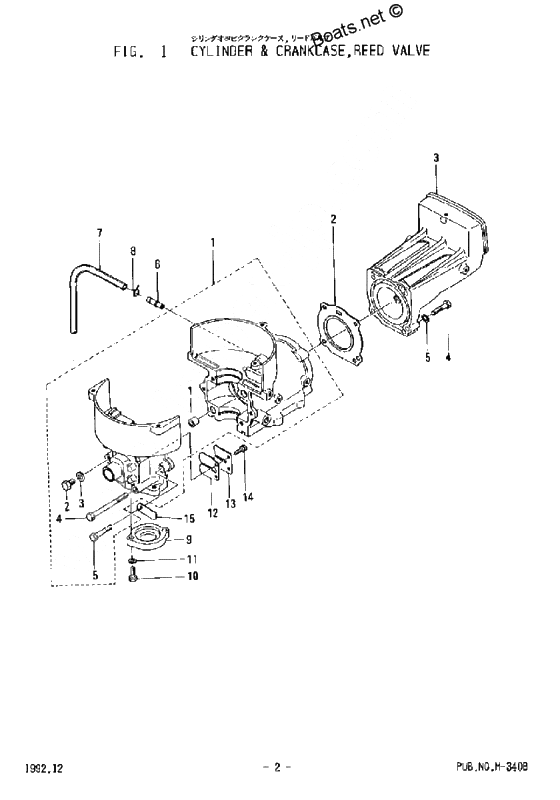

Cylinder & crankcase, reed valve для Tohatsu M2.5A - 2005 года выпуска

  • №
    Артикул
    Название
  • 1-00
    309-01100-0 Cylinder & crankcase assy
    -67130
    Cylinder & crankcase assy
    -67130
  • 1-00
    309-01100-1 Cylinder & crankcase assy
    Blue, Interchangeable with Older and Newer Parts, 67131-81965
    Cylinder & crankcase assy
    Blue, Interchangeable with Older and Newer Parts, 67131-81965
  • 1-1
    332-01111-0 Knock, crankcase
    D7-D10.16-9.3MM
    Knock, crankcase
    D7-D10.16-9.3MM
  • 1-2
    910-61080-8 Plug, crankcase
    Plug, crankcase
  • 1-3
    332-60006-0 Gasket (8.1x15.1)
    Gasket (8.1x15.1)
  • 1-4
    910-14066-5 Bolt a, crankcase
    Bolt a, crankcase
  • 1-5
    910-11063-0 Bolt b, crankcase
    Bolt b, crankcase
  • 2-00
    309-01005-1 Gasket, Cyl. Head
    Gasket, Cyl. Head
  • 309-01005-2 Gasket, Cyl. Head
    Gasket, Cyl. Head
  • 3-00
    314-01001-0 Cylinder head
    Blue, -81965
    Cylinder head
    Blue, -81965
  • 4-00
    916-14063-0 Bolt, cylinder head
    Bolt, cylinder head
  • 5-00
    940-11060-0 Washer
    Washer
  • 6-00
    309-01135-0 Drain nipple
    Drain nipple
  • 7-00
    9807-3-0150 Drain pipe
    D3-D7-150MM
    Drain pipe
    D3-D7-150MM
  • 98AB-301000 Drain pipe
    Drain pipe
  • 8-00
    338-01133-0 Clip
    Clip
  • 9-00
    309-01210-0 Crank case head
    Crank case head
  • 11-00
    941303-0600 New part
    New part
  • 12-00
    309-02111-0 Floato Valve Assy
    Floato Valve Assy
  • 13-00
    309-02113-0 Стопорный клапан
    Стопорный клапан
  • 14-00
    921-51741-2 Screw (w/washers), reed valve
    Screw (w/washers), reed valve
  • 15-00
    309-06972-0 Clamp,6.5-47.5P
    Clamp,6.5-47.5P
  • 1-00
    309-01100-0 Cylinder & crankcase assy
    -67130
    Cylinder & crankcase assy
    -67130
  • 1-00
    309-01100-1 Cylinder & crankcase assy
    Blue, Interchangeable with Older and Newer Parts, 67131-81965
    Cylinder & crankcase assy
    Blue, Interchangeable with Older and Newer Parts, 67131-81965
  • 1-1
    332-01111-0 Knock, crankcase
    D7-D10.16-9.3MM
    Knock, crankcase
    D7-D10.16-9.3MM
  • 1-2
    910-61080-8 Plug, crankcase
    Plug, crankcase
  • 1-3
    332-60006-0 Gasket (8.1x15.1)
    Gasket (8.1x15.1)
  • 1-4
    910-14066-5 Bolt a, crankcase
    Bolt a, crankcase
  • 1-5
    910-11063-0 Bolt b, crankcase
    Bolt b, crankcase
  • 2-00
    309-01005-1 Gasket, Cyl. Head
    Gasket, Cyl. Head
  • 309-01005-2 Gasket, Cyl. Head
    Gasket, Cyl. Head
  • 3-00
    314-01001-0 Cylinder head
    Blue, -81965
    Cylinder head
    Blue, -81965
  • 4-00
    916-14063-0 Bolt, cylinder head
    Bolt, cylinder head
  • 5-00
    940-11060-0 Washer
    Washer
  • 6-00
    309-01135-0 Drain nipple
    Drain nipple
  • 7-00
    9807-3-0150 Drain pipe
    D3-D7-150MM
    Drain pipe
    D3-D7-150MM
  • 98AB-301000 Drain pipe
    Drain pipe
  • 8-00
    338-01133-0 Clip
    Clip
  • 9-00
    309-01210-0 Crank case head
    Crank case head
  • 11-00
    941303-0600 New part
    New part
  • 12-00
    309-02111-0 Floato Valve Assy
    Floato Valve Assy
  • 13-00
    309-02113-0 Стопорный клапан
    Стопорный клапан
  • 14-00
    921-51741-2 Screw (w/washers), reed valve
    Screw (w/washers), reed valve
  • 15-00
    309-06972-0 Clamp,6.5-47.5P
    Clamp,6.5-47.5P
