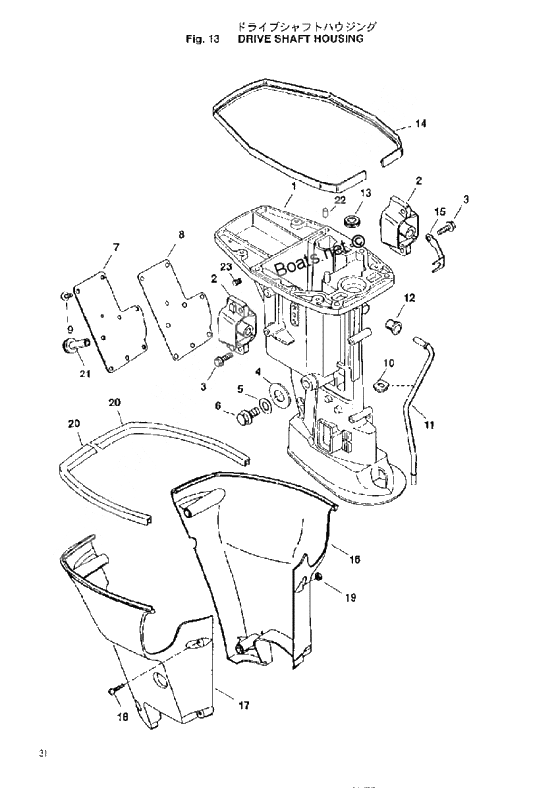

Drive shaft housing для Tohatsu MFS18B2 - 2004 года выпуска`
-
№АртикулНазвание
-
13R3S61020-1 Drive shaft housing s""
ShortDrive shaft housing s""
Short -
13R3S61030-1 Drive shaft housing l
LongDrive shaft housing l
Long -
23R3-61301-0 Mount rubber upperMount rubber upper
-
43R3-67017-0 Grommet, Oil DrainGrommet, Oil Drain
-
53R3-07406-0 WasherWasher
-
63R3-07405-1 Bolt, DrainBolt, Drain
-
73R3-61208-0 Cover, idle portCover, idle port
-
83R3-61207-0 Gasket, idle parts coverGasket, idle parts cover
-
9910114-7616 BoltBolt
-
103R3-65204-0 Guide Rubber, Water PipeGuide Rubber, Water Pipe
-
113H8-65100-0 Water pipe s
ShortWater pipe s
Short -
113H8-65110-0 Water Pipe L
LongWater Pipe L
Long -
123R3-65206-1 Seal Rubber, 9.9B/15BSeal Rubber, 9.9B/15B
-
13350-01215-1 Oil SealOil Seal
-
143R3-67116-0 РезинаРезина
-
153R3-65205-0 Rook Plate, Water PipeRook Plate, Water Pipe
-
163R3S67004-0 Cover, drive shaft housing(l)Cover, drive shaft housing(l)
-
173R3S67003-0 Cover, drive shaft housing(r)Cover, drive shaft housing(r)
-
203R3-61213-0 Seal Rubber, ApronSeal Rubber, Apron
-
213R3-61212-0 Grommet, Idle PortGrommet, Idle Port
-
22345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
233H6-07257-0 Exhaust PlugExhaust Plug
