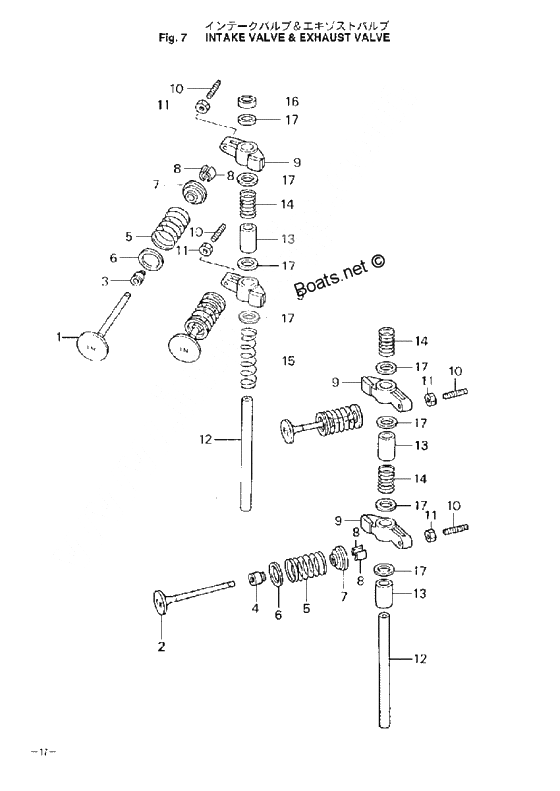

Intake valve, exhaust valve для Tohatsu MFS18B2 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3R3-07201-0 Floato Valve Assy
    Floato Valve Assy
  • 2
    3R0-07202-0 Exhausut Valve
    Exhausut Valve
  • 3
    3R3-07204-0 Seal, In Valve Stem
    Black
    Seal, In Valve Stem
    Black
  • 4
    3R3-07206-0 Seal, EX Valve Stem
    Green
    Seal, EX Valve Stem
    Green
  • 5
    3H6-07203-1 Пружина клапана
    L=35
    Пружина клапана
    L=35
  • 6
    3H6-07205-0 Seat, Valve Spring
    Seat, Valve Spring
  • 7
    3H6-07221-0 Retaine,int. & Exh.
    Retaine,int. & Exh.
  • 8
    3H6-07223-0 Cotter
    Cotter
  • 9
    3R0-07235-0 Rocker,arm
    18B#0001-,15B#11371-, 9.9B#11275-
    Rocker,arm
    18B#0001-,15B#11371-, 9.9B#11275-
  • 10
    3R0-07238-0 Stud Bolt
    18B#00001-, 15B#11371-, 9.9B#11274
    Stud Bolt
    18B#00001-, 15B#11371-, 9.9B#11274
  • 11
    3H8-07237-0 Nut
    Nut
  • 12
    3H8-07226-0 Shaft, rocker arm
    Shaft, rocker arm
  • 13
    3H8-07239-0 Collar, Rocker Arm Shaft
    Collar, Rocker Arm Shaft
  • 14
    3H8-07225-0 Spring Washer
    L=30
    Spring Washer
    L=30
  • 15
    3H8-07229-0 Spring Washer
    L=51
    Spring Washer
    L=51
  • 16
    3R3-07227-0 Washer
    Washer
