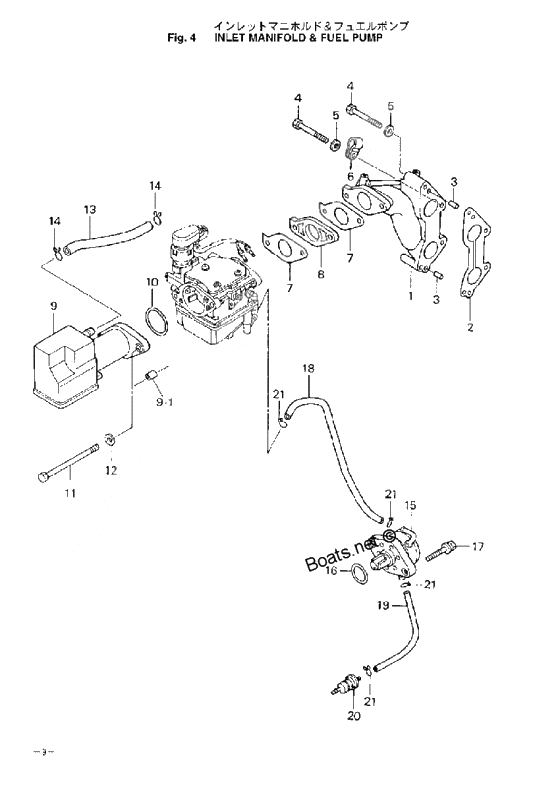

Inlet manifold, fuel pump для Tohatsu MFS18B2 - 2004 года выпуска
-
№АртикулНазвание
-
13R3-02010-1 Inlet Manifold
#11775-Inlet Manifold
#11775- -
23R3-02104-1 Gasket,Inlet Manifold
#11775-Gasket,Inlet Manifold
#11775- -
3345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
4916114-0645 BoltBolt
-
6345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
73R0-02011-0 Gasket, carburetorGasket, carburetor
-
83R0-03952-0 InsulatorInsulator
-
93V9-02410-0 Air SilencerAir Silencer
-
9-13A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
103F3-02012-0 O-RingO-Ring
-
113R0-03215-0 Bolt,6-100Bolt,6-100
-
123C8-66308-0 New part
or 3C8-66308-0New part
or 3C8-66308-0 -
143C7-02215-0 ClipClip
-
153H8-04000-1 Fuel Pump Ass'yFuel Pump Ass'y
-
16345-62415-0 O-RingO-Ring
-
20369-02230-0 Фильтр топливныйФильтр топливный
-
21338-02215-0 ClipClip
