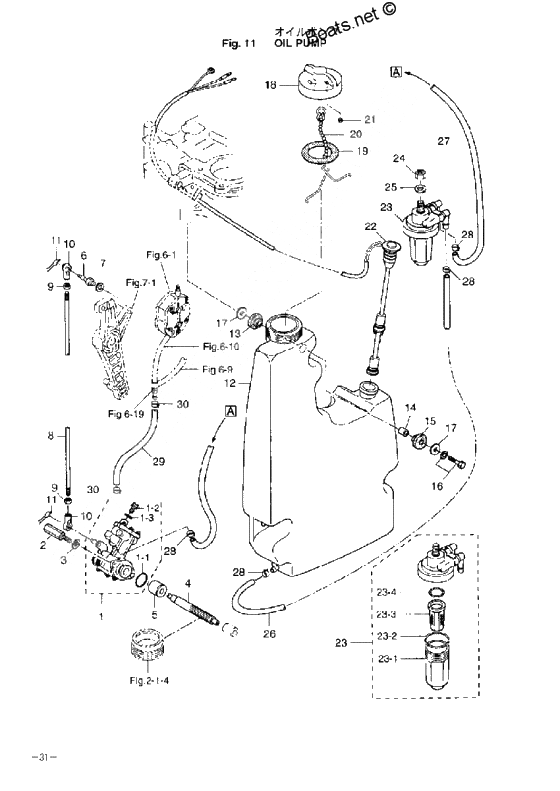

Oil pump для Tohatsu M140A2 - 2004 года выпуска`
-
№АртикулНазвание
-
13C7-09000-0 Oil Pump Ass'yOil Pump Ass'y
-
1-13B7-09002-0 O-RingO-Ring
-
1-23B7-09004-0 Bolt, Air VentBolt, Air Vent
-
1-33B7-09006-0 WasherWasher
-
23B7-09050-0 Bolt, oil pumpBolt, oil pump
-
3941303-0600 New partNew part
-
43B7-09065-0 Driven gear, oil pumpDriven gear, oil pump
-
53B7-09069-0 BushingBushing
-
63B7-05244-0 Ball joint cBall joint c
-
83C7-09053-0 Link rod oil pumpLink rod oil pump
-
9930103-0500 Nut
or 930106-0500Nut
or 930106-0500 -
103B7-05243-0 New partNew part
-
11951703-0500 Snap RetainerSnap Retainer
-
123C7-71070-2 Oil TankOil Tank
-
133B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
14346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
15346-67113-0 Mount RubberMount Rubber
-
16910103-6630 BoltBolt
-
17346-67115-0 WasherWasher
-
183C8-71015-0 Cap Oil TankCap Oil Tank
-
193C8-71016-0 Gasket 36-52-2Gasket 36-52-2
-
203C8-71017-0 Hook Tank CapHook Tank Cap
-
213C8-71018-0 Check Valve Oil TankCheck Valve Oil Tank
-
223C7-71020-0 New partNew part
-
233C7-71030-0 Filter Ass'yFilter Ass'y
-
23-13B7-02237-0 CupCup
-
23-23B7-02235-0 O-Ring AO-Ring A
-
23-33C7-71033-0 FilterFilter
-
23-43B7-02236-0 O???? bO???? b
-
2699AA-6-1000 Vinyl PipeVinyl Pipe
-
283B7-09054-0 Clip @ 9.5
тИЕ9.5Clip @ 9.5
тИЕ9.5 -
3AB-35143-0 Clip @ 9.5Clip @ 9.5
-
2999AA-4-0480 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
99AA-4-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
303C7-09056-0 Clip 8.5
тИЕ8Clip 8.5
тИЕ8
