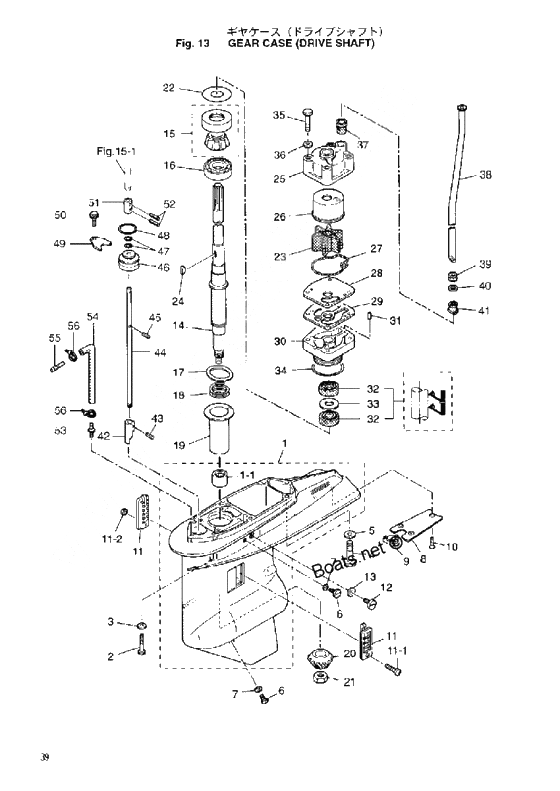

Gear case (drive shaft) для Tohatsu M140A2 - 2004 года выпуска`
-
№АртикулНазвание
-
13C7S60000-5 Gear case ass'yGear case ass'y
-
1-13C7-60211-1 Needle Bearing 28.6-38.1-3Needle Bearing 28.6-38.1-3
-
3940203-0800 WasherWasher
-
43B7-60001-2 Bolt, 10-40Bolt, 10-40
-
6332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
7332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
83B7-60012-1 Plate, Gear CasePlate, Gear Case
-
93B7-60013-0 Hole Plug, Gear CaseHole Plug, Gear Case
-
113C7-60235-1 Water Strainer SetWater Strainer Set
-
11-1921503-0445 Stud BoltStud Bolt
-
123B7-60015-1 Water PlugWater Plug
-
133B7-60016-0 O-RingO-Ring
-
143C7-64303-2 Drive Shaft UL
for Transom UL""Drive Shaft UL
for Transom UL"" -
143C7-64302-2 Drive shaft l
FOR TRANSOM LDrive shaft l
FOR TRANSOM L -
153C7-60213-0 Bearing 0506Bearing 0506
-
163C7-60214-0 Bearing 16007Bearing 16007
-
173C7-60210-0 Wave Washer D=47.2Wave Washer D=47.2
-
183C7-64327-0 Spring Drive ShaftSpring Drive Shaft
-
193C7-64328-0 Guide Drive Shaft SpringGuide Drive Shaft Spring
-
203C7-64020-0 Bevel Gear BBevel Gear B
-
213B7-64027-0 Nut, Bevel Gear BNut, Bevel Gear B
-
22353-64014-0 Shim, 52-60.5-0.3Shim, 52-60.5-0.3
-
22353-64015-0 Shim,52-60.5-0.15Shim,52-60.5-0.15
-
22353-64016-0 Shim,52-60.5-0.1Shim,52-60.5-0.1
-
233C7-65021-1 Impeller water pumpImpeller water pump
-
243B7-65022-0 Key, water pump impellerKey, water pump impeller
-
253C7-65016-0 Water Pump CaseWater Pump Case
-
263C7-65011-0 Liner Water Pump CaseLiner Water Pump Case
-
273C7-65018-0 Seal Water Pump CaseSeal Water Pump Case
-
283C7-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
293C7-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
303C7-65017-2 Pump Case Lower
120A #21102-140A #11108Pump Case Lower
120A #21102-140A #11108 -
31334-65012-0 СтопорСтопор
-
323C7-60223-1 Oil seal, 22-42-7Oil seal, 22-42-7
-
33346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
343B7-65015-0 O-RingO-Ring
-
36940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
373C7-65014-0 Lower Seal Rubber Water PipeLower Seal Rubber Water Pipe
-
383C7-65110-0 Water Pipe L
FOR TRANSOM LWater Pipe L
FOR TRANSOM L -
383C7-65120-0 Water Pipe UL
FOR TRANSOM XLWater Pipe UL
FOR TRANSOM XL -
393C7-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
40345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
413C7-65204-0 Locking Rubber Water PipeLocking Rubber Water Pipe
-
423B7-66011-1 Clutch CamClutch Cam
-
43951403-3516 New partNew part
-
443B7-66014-1 Cam Rod UL
for Transom UL""Cam Rod UL
for Transom UL"" -
443B7-66013-1 Cam Rod L
FOR TRANSOM LCam Rod L
FOR TRANSOM L -
45951403-3510 New partNew part
-
463B7-66031-1 Bushing, Cam Rod / O-Ring,1.9-6.8Bushing, Cam Rod / O-Ring,1.9-6.8
-
47345-66021-0 O-RingO-Ring
-
483B7-66023-0 O-RingO-Ring
-
49353-66024-0 StopperStopper
-
50910103-6612 BoltBolt
-
51353-66241-1 New partNew part
-
533C7-60017-0 Nipple 6-1/8Nipple 6-1/8
-
553C7-60018-0 ЗолотникЗолотник
-
56353-84398-0 Band Lead WireBand Lead Wire
