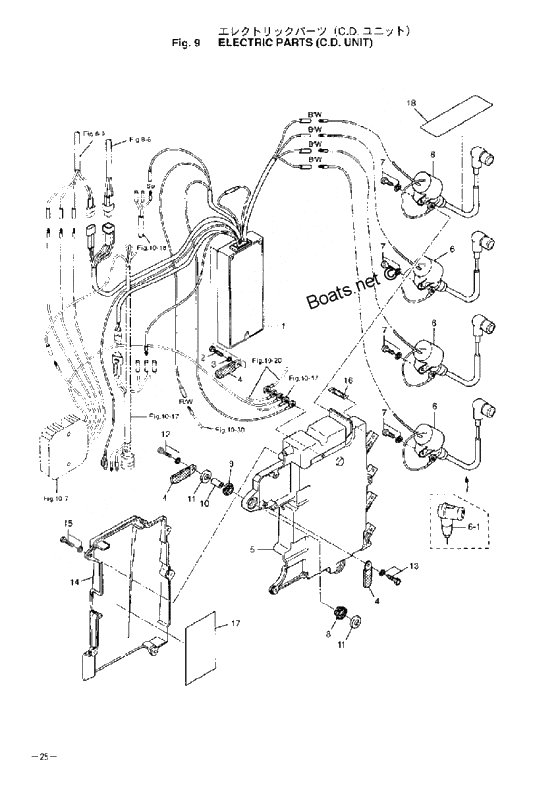

Electric parts (c.d. unit) для Tohatsu M140A2 - 2004 года выпуска`

№

Артикул

Название
1

3C7-06160-1 C.D. Unit
140A2 # 12195-, 120A2 # 21756-

C.D. Unit
140A2 # 12195-, 120A2 # 21756-

53 620 ₽
2

910403-0540 Bolt

Bolt

150 ₽
3

940103-0500 Washer

Washer

90 ₽
4

309-06972-0 Clamp,6.5-47.5P

Clamp,6.5-47.5P

190 ₽
5

3C7-06901-1 Electric bracket
120A2 #21739-140A2 #12174

Electric bracket
120A2 #21739-140A2 #12174

7 200 ₽
6

3C7-06050-0 Ignition coil ass'y

Ignition coil ass'y

5 850 ₽
6

3C7-06040-0 Ignition Coil
OPT

Ignition Coil
OPT

4 580 ₽
6-1

346-06999-0 Plug cap(registance)

Plug cap(registance)

1 010 ₽
6-1

3C7-06921-0 Prug cap (with waterproof registance)

Prug cap (with waterproof registance)

4 610 ₽
6-1

3B2-06921-0 Plug cap

Plug cap

980 ₽
6-2

3B2-06926-0 Terminal plug cap

Terminal plug cap

660 ₽
8

3B7-06920-0 Mount Rubber, 8.5-14-2.5

Mount Rubber, 8.5-14-2.5

140 ₽
9

346-67113-0 Mount Rubber

Mount Rubber

290 ₽
10

346-67114-0 Spacer 6.2-9-15.7

Spacer 6.2-9-15.7

170 ₽
11

346-67115-0 Washer

Washer

320 ₽
12

910103-6630 Bolt

Bolt

170 ₽
13

910103-6612 Bolt

Bolt

290 ₽
14

3C7-06902-2 Cover electric bracket
140A2 # 12174 - 120A2 # 21739 -

Cover electric bracket
140A2 # 12174 - 120A2 # 21739 -

2 500 ₽
16

353-76213-0 Fuse(20ah)
20A

Fuse(20ah)
20A

190 ₽
17

3C7-72028-0 Label wiring diagram

Label wiring diagram

450 ₽
18

3C8-72181-0 Caution label

Caution label

200 ₽
