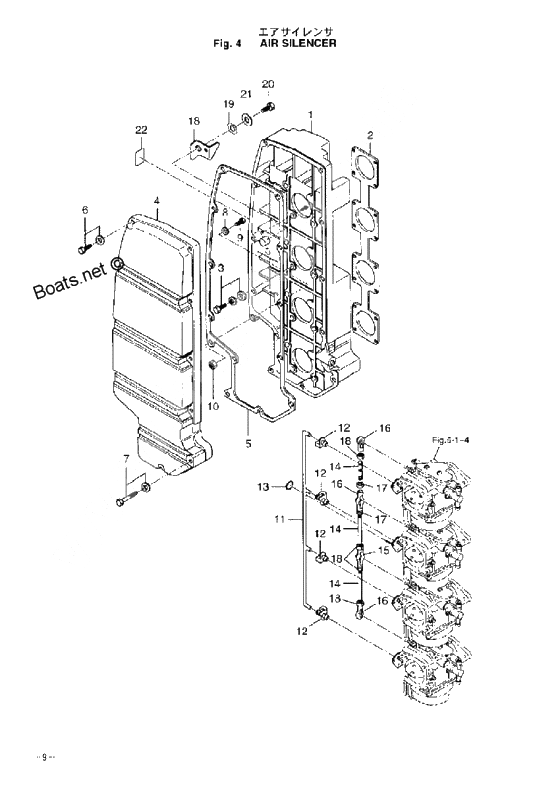

Air silencer для Tohatsu M140A2 - 2004 года выпуска`
-
№АртикулНазвание
-
13C7-02411-2 Air Silencer
with Rivet, 2-5Air Silencer
with Rivet, 2-5 -
23C7-02414-0 Gasket, air silencerGasket, air silencer
-
33C7-02420-1 Bolt, 6-20(precoated)Bolt, 6-20(precoated)
-
43C7-02415-2 Cover, air silencerCover, air silencer
-
53C7-02418-2 Gasket, air silencer coverGasket, air silencer cover
-
8940113-0600 WasherWasher
-
8940103-0600 WasherWasher
-
9921503-0625 Stud BoltStud Bolt
-
10930103-0600 NutNut
-
113C7-67191-1 Rod choke valveRod choke valve
-
12345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
-
133C7-03271-0 O-RingO-Ring
-
14353-63709-0 Throttle RodThrottle Rod
-
153B7-05229-0 Cap b, ball jointCap b, ball joint
-
163B7-05243-0 New partNew part
-
17930103-0500 Nut
or 930106-0500Nut
or 930106-0500 -
183B7-67152-0 РукояткаРукоятка
-
19941403-1000 WasherWasher
-
20910103-0610 BoltBolt
-
21346-67115-0 WasherWasher
-
223B7-72015-0 Label, chokeLabel, choke
