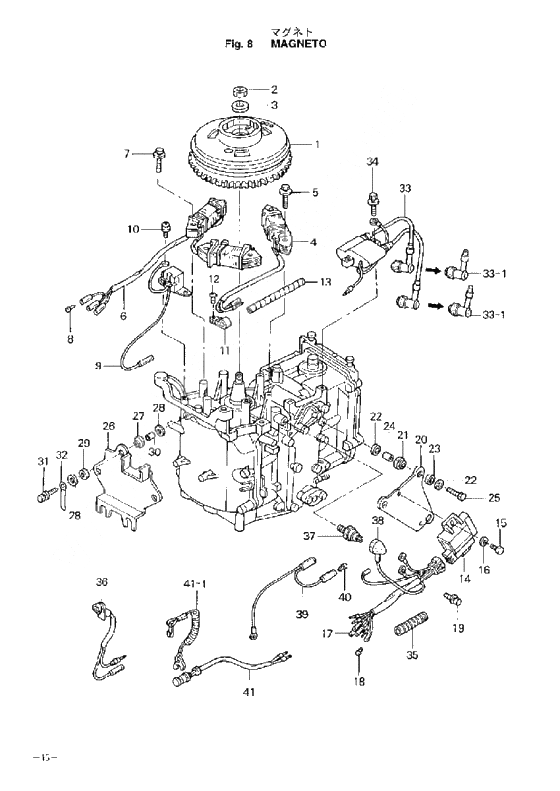

Magneto для Tohatsu MFS9.8A - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3V1-06091-0 Flywheel cup
    FF-51 with Ring Gear
    Flywheel cup
    FF-51 with Ring Gear
  • 2
    369-00132-0 Nut Magneto
    Nut Magneto
  • 3
    940121-1200 Washer
    Washer
  • 4
    3V1-06021-0 Exciter coil
    Exciter coil
  • 6
    3V1-06023-0 Alternator
    for EF & EP
    Alternator
    for EF & EP
  • 8
    3A3-76037-0 Plug B Cable Terminal
    White" Cable for EF & EP"
    Plug B Cable Terminal
    White" Cable for EF & EP"
  • 9
    3V1-06071-0 Pulsar Coil
    Pulsar Coil
  • 10
    921503-0512 Stud Bolt
    Stud Bolt
  • 11
    336-06973-0 Clamp Lead Wire
    Alternator & Exciter Cable
    Clamp Lead Wire
    Alternator & Exciter Cable
  • 12
    921503-5612 Stud Bolt
    Stud Bolt
  • 13
    3V1-76148-0 Spiral Tube Protector
    тИЕ10-100 Alternator and Exciter Cable
    Spiral Tube Protector
    тИЕ10-100 Alternator and Exciter Cable
  • 14
    3V1-06060-0 Cd unit
    Cd unit
  • 15
    3V1-06864-0 Bolt, 6 - 16 pre-coated
    Bolt, 6 - 16 pre-coated
  • 16
    3C8-66308-0 New part
    New part
  • 17
    3V1-06167-0 Cd unit cord ass'y
    Cd unit cord ass'y
  • 20
    3V1-06061-0 Cd unit bracket
    Cd unit bracket
  • 21
    3T5-06920-0 Mount Rubber
    Mount Rubber
  • 23
    3B7-06305-0 Mount Rubber, 9-16-4.3
    Mount Rubber, 9-16-4.3
  • 24
    3A0-76079-0 Collar, 6.2-9-7.5
    Collar, 6.2-9-7.5
  • 26
    3V1-06900-0 Electric bracket
    EF & EP
    Electric bracket
    EF & EP
  • 32
    3T4-06972-0 Плата струбцины
    EP
    Плата струбцины
    EP
  • 33
    3V1-06040-0 Ignition Coil
    Ignition Coil
  • 33-1
    3H6-06999-0 Plug Cap (Registance)
    Plug Cap (Registance)
  • 35
    3V1-06133-0 Protector
    тИЕ34 - 07 for MF
    Protector
    тИЕ34 - 07 for MF
  • 36
    3R3-71040-0 Pilot Lamp Ass'y
    Pilot Lamp Ass'y
  • 37
    3H6-07611-0 Switch, Oil Pressure
    Switch, Oil Pressure
  • 38
    3H6-07612-0 Grommet, oil pressure switch
    Grommet, oil pressure switch
  • 39
    3V5-72678-0 Separate Cord(Black)
    Separate Cord(Black)
  • 41
    398-06830-0 Safety Switch Ass'y
    for MF & EF
    Safety Switch Ass'y
    for MF & EF
  • 41-1
    353-06821-0 Lock, lanyard stop switch
    Lock, lanyard stop switch
