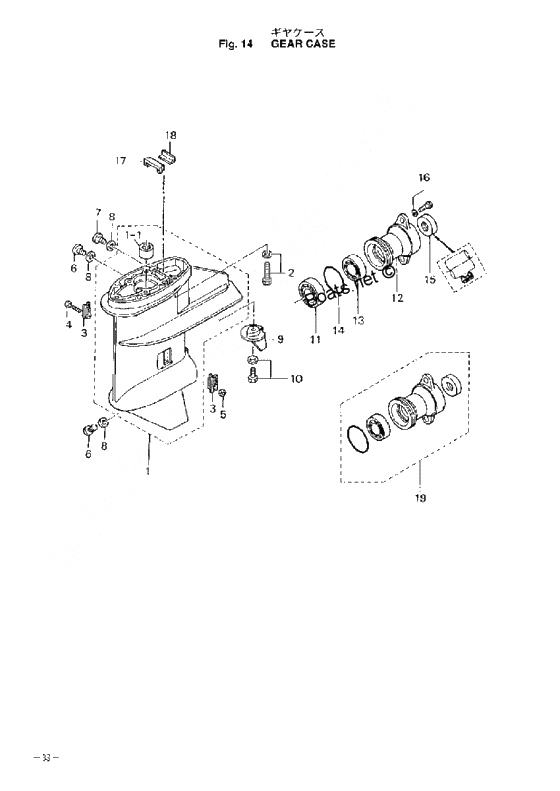

Gear case для Tohatsu MFS9.8A - 2003 года выпуска`
-
№АртикулНазвание
-
13V1S60000-0 Gear case assyGear case assy
-
3AAS60000-0 Gear case assyGear case assy
-
1-13V1-60211-0 Roller BearingRoller Bearing
-
33V1-60206-0 Water StrainerWater Strainer
-
6332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
8332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
93V1-60217-0 Trim TabTrim Tab
-
119601-0-6204 Ball BearingBall Bearing
-
123B2S60101-0 Housing, Propeller ShaftHousing, Propeller Shaft
-
139601-0-6004 Ball BearingBall Bearing
-
14345-65015-0 O-RingO-Ring
-
15369-60111-0 Oil SealOil Seal
-
173V1-60041-0 Water Seal RubberWater Seal Rubber
-
183V1-60042-0 Water Seal PlateWater Seal Plate
-
193B2S60100-0 Propeller shaft housing ass'yPropeller shaft housing ass'y
Все узлы модели:
- Assembly kit
- Bracket
- Caburetor
- Camshaft & oil pump
- Cowl
- Cylinder head
- Cylinder
- Drive shaft housing
- Drive system & water pump
- Electric parts
- Fuel tank (integral)
- Gauges, riging & maintenance
- • Gear case
- Intake manifold & fuel pump
- Intake valve & exhaust valve
- Magneto
- Piston & crank shaft
- Recoil starter
- Remote control
- Shift
- Tiller handle
