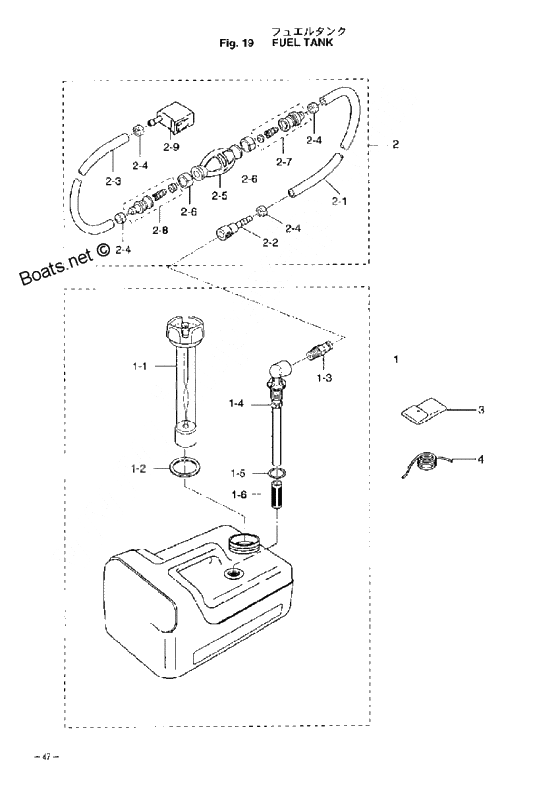

Fuel tank (integral) для Tohatsu MFS9.8A - 2003 года выпуска`
-
№АртикулНазвание
-
13B2-70167-0 New part
UniqueNew part
Unique -
1-13B2-70050-0 Fuel gauge vented cap ass'yFuel gauge vented cap ass'y
-
1-23C7-70021-0 Cap gasketCap gasket
-
1-33E0-70270-0 New partNew part
-
1-43B2-70155-0 Fuel PickupFuel Pickup
-
1-53C7-70199-0 O-RingO-Ring
-
1-63C7-70113-0 FilterFilter
-
23H6-70200-0 New part
L=3040New part
L=3040 -
2-23B2-70281-0 New partNew part
-
2-4332-70201-0 ClampClamp
-
2-53C7-70211-0 Primer BulbPrimer Bulb
-
2-63C7-70217-0 ClampClamp
-
2-73C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
2-83C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
2-9394-70250-0 Соединитель топливныйСоединитель топливный
-
33H6-72100-0 TOOL ASS'YTOOL ASS'Y
-
43B7-72201-0 Канат
тИЕ6-1600Канат
тИЕ6-1600
