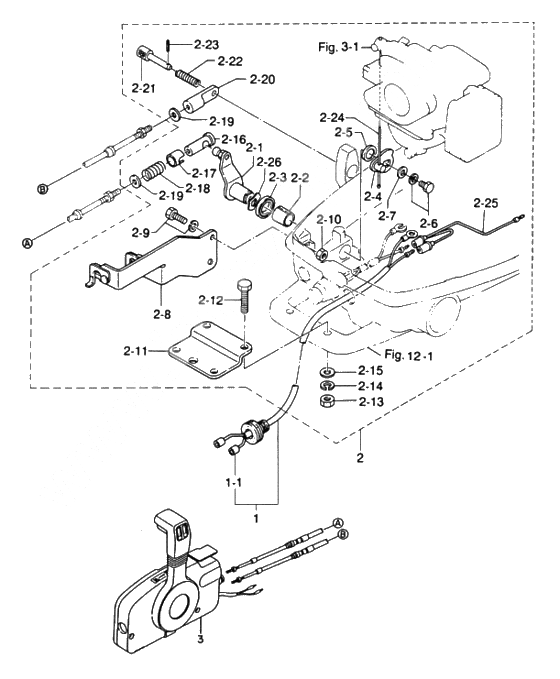

Optional parts (1) accessories (remote control) для Tohatsu M5B - 2003 года выпуска
-
№АртикулНазвание
-
1369-83846-0 R.c.stop cord(2.0m)R.c.stop cord(2.0m)
-
1369-83848-0 R.c. stop cord 3.2mR.c. stop cord 3.2m
-
1369-83853-0 R.c. stop cord 3.9mR.c. stop cord 3.9m
-
1369-83858-0 R.c. Stop Cord 5.9mR.c. Stop Cord 5.9m
-
1-1345-66226-0 Grommet, 17-3Grommet, 17-3
-
2369-83880-2 S.r.c. fitting parts ass'yS.r.c. fitting parts ass'y
-
2-1369-83726-0 Throttle leverThrottle lever
-
2-10930103-0600 Nut
OR 930113-0600Nut
OR 930113-0600 -
2-11369-83830-2 Plate, Traring HookPlate, Traring Hook
-
2-12910103-0830 New part
OR 910113-0830New part
OR 910113-0830 -
2-13930103-0800 Nut
OR 930113-0800Nut
OR 930113-0800 -
2-14941303-0800 Spring WasherSpring Washer
-
2-15940103-0800 Washer -> 940113-0800
OR 940113-0800Washer -> 940113-0800
OR 940113-0800 -
2-163A1-83722-0 Ball holderBall holder
-
2-17332-83723-0 Cap ball jointCap ball joint
-
2-18332-83724-0 Spring ball jointSpring ball joint
-
2-19332-83725-0 WasherWasher
-
2-2369-67105-0 BushingBushing
-
2-20369-83715-1 Sleeve B GuideSleeve B Guide
-
2-21332-83728-0 Lock PinLock Pin
-
2-22332-83729-0 Spring WasherSpring Washer
-
2-23951403-0212 Spring WasherSpring Washer
-
2-24369-83863-0 Throttle WireThrottle Wire
-
2-253H6-83883-0 Separate CordSeparate Cord
-
2-26941403-1400 New partNew part
-
2-3338-67147-0 New partNew part
-
2-4369-83887-0 Lever throttle wireLever throttle wire
-
2-5369-83888-0 Collar throttle wire leverCollar throttle wire lever
-
2-6910103-6612 BoltBolt
-
2-73R0-66308-0 Washer
OR 3C8-66308-0Washer
OR 3C8-66308-0 -
2-8369-83820-0 Cable clip ass'yCable clip ass'y
-
2-9910103-6616 BoltBolt
-
33B7-84360-0 Single remote control box ass'y(rc5d)
TOHATSUSingle remote control box ass'y(rc5d)
TOHATSU -
3373-84360-2 Single remote control box ass'y (rc8d)
NISSANSingle remote control box ass'y (rc8d)
NISSAN
