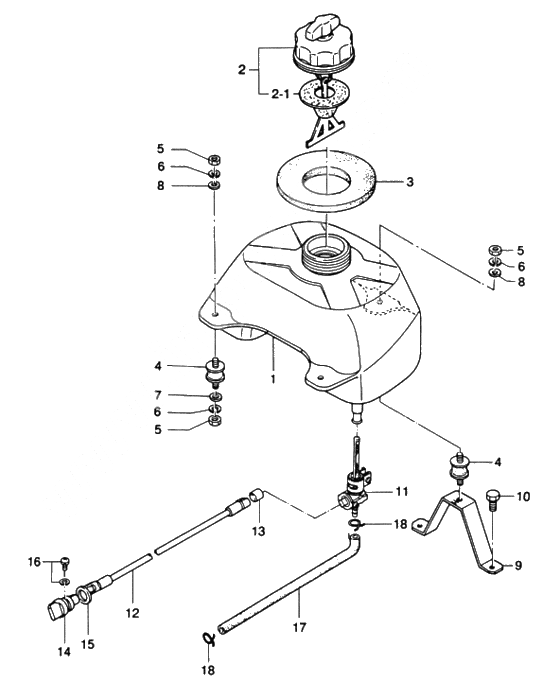

Integral fuel tank - 5b model для Tohatsu M5B - 2003 года выпуска
-
№АртикулНазвание
-
1369-70316-2 Fuel tank completeFuel tank complete
-
2393-70020-5 Fuel tank cap ass'yFuel tank cap ass'y
-
2-13D6-70021-0 GasketGasket
-
3369-70036-2 Seal rubber fuel tankSeal rubber fuel tank
-
4369-70057-0 Mount rubber fuel tankMount rubber fuel tank
-
5930103-0600 Nut
OR 930113-0600Nut
OR 930113-0600 -
6941303-0600 New partNew part
-
73R0-66308-0 Washer
OR 3C8-66308-0Washer
OR 3C8-66308-0 -
8345-05122-0 New partNew part
-
9369B70312-0 Stay fuel tankStay fuel tank
-
369-70312-1 Stay fuel tankStay fuel tank
-
10910114-0616 BoltBolt
-
11369-70311-0 Fuel CockFuel Cock
-
12369-70061-0 Rod fuel cockRod fuel cock
-
13353-72544-0 Tube,fuel cock rodTube,fuel cock rod
-
14369-70062-0 Knob fuel cock rodKnob fuel cock rod
-
15369-70063-0 Rubber Fuel Cock Rod KnobRubber Fuel Cock Rod Knob
-
16921503-6410 Stud BoltStud Bolt
-
17369-70315-0 Труба топливнаяТруба топливная
-
18338-02215-0 ClipClip
