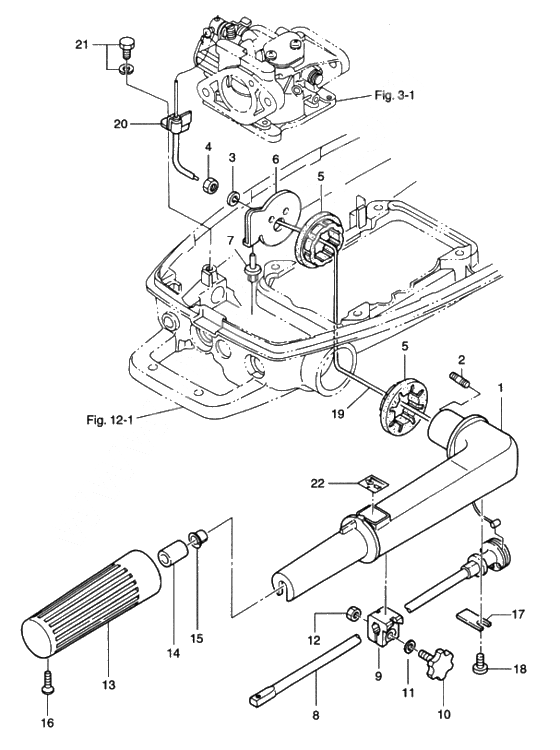

Handle - throttle для Tohatsu M5B - 2003 года выпуска`
-
№АртикулНазвание
-
13B2S63011-1 Рулевой рычаг и кабельРулевой рычаг и кабель
-
23B2-63104-1 Stud BoltStud Bolt
-
3941303-0600 New partNew part
-
4930103-0600 Nut
OR 930113-0600Nut
OR 930113-0600 -
5369-63102-0 New partNew part
-
6369-63103-1 Stopper starter handleStopper starter handle
-
7350-67154-0 New partNew part
-
83B2-63041-0 Throttle ShaftThrottle Shaft
-
93B2-63035-1 Friction Piece GripFriction Piece Grip
-
103B2-63034-0 Adjust ScrewAdjust Screw
-
11940103-0600 Washer
OR 940113-0600Washer
OR 940113-0600 -
12930103-0600 Nut
OR 930113-0600Nut
OR 930113-0600 -
13369-63012-1 GripGrip
-
14345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
15350-63046-0 BushingBushing
-
16920803-0518 Stud BoltStud Bolt
-
173B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
18921503-0612 Stud Bolt
OR 921513-0612Stud Bolt
OR 921513-0612 -
19369-63600-1 Throttle WireThrottle Wire
-
20369-63508-0 Bracket throttle wireBracket throttle wire
-
21910121-6612 BoltBolt
-
22369-72019-1 Lable throttleLable throttle
Все узлы модели:
- BRACKET REVERSE LOCK ARM
- CYLINDER CRANK CASE ASS`Y
- HANDLE THROTTLE
- INTEGRAL FUEL TANK
- OPTIONAL PARTS ACCESSORIE (REMOTE CONTROL)
- OPTIONAL PARTS (ACCESSORIES)
- OPTIONAL PARTS ACCESSORIES (REMOTE CONTROL)
- PISTON CRANK SHAFT
- RECOIL STARTER STARTER LOCK
- Assembly kit
- Bracket - reverse lock arm
- Carburetor
- Cylinder - crank case assembly
- Drive shaft housing
- Gear case (drive shaft)
- Gear case (propeller shaft)
- • Handle - throttle
- Integral fuel tank - 5b model
- Magneto
- Motor cover
- Optional parts (1) accessories (remote control)
- Optional parts (2) accessories
- Piston & crank shaft
- Recoil starter & starter lock
- Separate fuel tank (plastic) - 5bs model
- Shift
