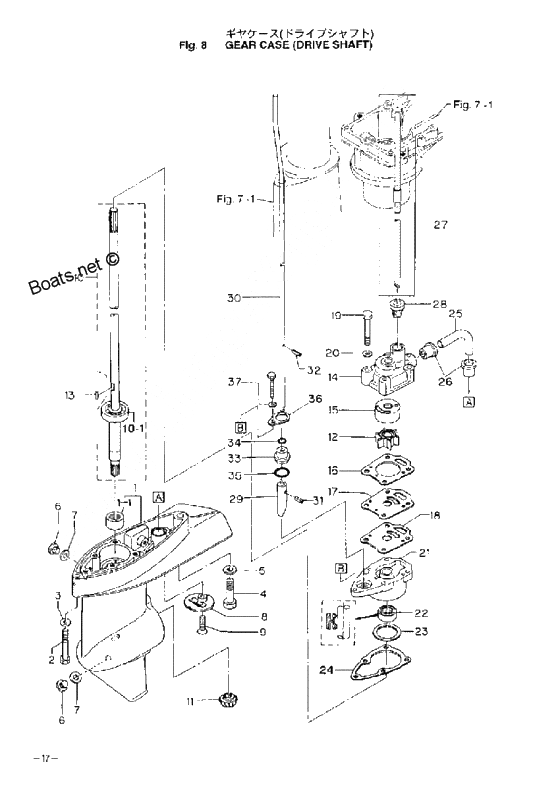

Gear case (drive shaft) для Tohatsu M4C - 2003 года выпуска`
-
№АртикулНазвание
-
1369S60000-2 Gear case ass'y
5B # 16748-, 4C # 80467-Gear case ass'y
5B # 16748-, 4C # 80467- -
1-1369-60211-0 Needle BearingNeedle Bearing
-
3940113-0600 WasherWasher
-
6332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
7332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
8369-60206-0 Water StrainerWater Strainer
-
9921803-0620 Stud BoltStud Bolt
-
10369-64301-0 Drive Shaft S
for Transom S""Drive Shaft S
for Transom S"" -
10369-64302-0 Drive shaft l
for Transom L""Drive shaft l
for Transom L"" -
10369-64303-0 Drive Shaft UL
for Transom UL""Drive Shaft UL
for Transom UL"" -
10-19601-0-6300 Ball BearingBall Bearing
-
11369-64020-2 Bevel Gear BBevel Gear B
-
12369-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
13369-65022-0 Key water pump impellerKey water pump impeller
-
14369-65016-0 Water Pump CaseWater Pump Case
-
15369-65011-0 Liner Water Pump CaseLiner Water Pump Case
-
16369-65018-0 Gasket water pump caseGasket water pump case
-
17369-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
18369-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
21369-65017-1 Pump Case LowerPump Case Lower
-
22369-60223-0 Oil SealOil Seal
-
23369-64081-1 Shim, 26. 5-34. 8-0.1Shim, 26. 5-34. 8-0.1
-
24369-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
25369-65035-0 Water Pipe LowerWater Pipe Lower
-
26369-65036-0 Seal Rubber Water Pipe LowerSeal Rubber Water Pipe Lower
-
27369-65100-0 Water pipe s
for Transom S""Water pipe s
for Transom S"" -
27369-65110-0 Water Pipe L
for Transom L""Water Pipe L
for Transom L"" -
27369-65120-0 Water Pipe UL
for Transom UL""Water Pipe UL
for Transom UL"" -
28369-65014-0 Seal rubber lower water pipeSeal rubber lower water pipe
-
29369-66011-0 Clutch CamClutch Cam
-
30369-66014-0 Cam Rod UL
for Transom UL""Cam Rod UL
for Transom UL"" -
30369-66012-0 Cam rod s
for Transom S'"Cam rod s
for Transom S'" -
30369-66013-0 Cam Rod L
for Transom L""Cam Rod L
for Transom L"" -
31951407-0310 Spring WasherSpring Washer
-
32951407-0312 Spring WasherSpring Washer
-
33369-66031-0 Bushing Cam RodBushing Cam Rod
-
34369-66021-1 O?????2.5-4.9O?????2.5-4.9
-
35332-66032-0 O?????2.4-15.4O?????2.4-15.4
-
36369-66033-0 Stopper Cam Rod BushingStopper Cam Rod Bushing
-
1369S60000-1 Gear Case
5B # 16748- 4C # 80467-Gear Case
5B # 16748- 4C # 80467- -
1-1369-60211-1 * Needle Bearin.e:, 14-20-12* Needle Bearin.e:, 14-20-12
-
2916113-0644 BoltBolt
-
3940113-0599 WasherWasher
-
4916113-0834 BoltBolt
-
5940113-0799 WasherWasher
-
6332-60005-1 Oil PlugOil Plug
-
7332-60006-1 Gasket, 8.1-15-1Gasket, 8.1-15-1
-
8369-60206-1 Water StrainerWater Strainer
-
9921803-0619 ScrewScrew
-
10369-64301-1 Drive Shaft s"
for Transom "S"Drive Shaft s"
for Transom "S" -
10369-64302-1 Drive Shaft L"
for Transom "L"Drive Shaft L"
for Transom "L" -
10369-64303-1 Drive Shaft UL"
for Transom "UL"Drive Shaft UL"
for Transom "UL" -
10-19601-0-6299 * Ball Bearing, 6300* Ball Bearing, 6300
-
11369-64020-1 Bevel Gear B"Bevel Gear B"
-
12369-65021-0 Impeller, Water PumpImpeller, Water Pump
-
13369-65022-1 Key, Water Pump lmpellerKey, Water Pump lmpeller
-
14369-65016-1 Pump Case UpperPump Case Upper
-
15369-65011-1 Liner, Pump CaseLiner, Pump Case
-
16369-65018-1 Gasket, Pump CaseGasket, Pump Case
-
17369-65025-1 Guide Plate, Water PumpGuide Plate, Water Pump
-
18369-65029-1 Gasket, Guide PlateGasket, Guide Plate
-
19916113-0644 BoltBolt
-
20940113-0599 WasherWasher
-
21369-65017-0 Pump Case LowerPump Case Lower
-
22369-60223-1 Oil Seal, 10-24-8Oil Seal, 10-24-8
-
23369-64081-0 Shim, 26.5-34.8-0.1Shim, 26.5-34.8-0.1
-
23369-84082-0 Shim, 26.5-34.8-0.15Shim, 26.5-34.8-0.15
-
24369-65020-1 Gasket, Pump Case LowerGasket, Pump Case Lower
-
25369-65035-1 Water Pipe LowerWater Pipe Lower
-
26369-65036-0 Seal Rubber, Water Pipe LowerSeal Rubber, Water Pipe Lower
-
27369-65100-0 Water Pioe s"
for Transom "S"Water Pioe s"
for Transom "S" -
27369-65110-0 Water Pipe "L"
for Transom "L"Water Pipe "L"
for Transom "L" -
27369-65120-0 Water Pipe UL"
for Transom "UL"Water Pipe UL"
for Transom "UL" -
28369-65014-0 Seal Rubber Lower, Water PipeSeal Rubber Lower, Water Pipe
-
29369-66011-0 Clutch CamClutch Cam
-
30369-66012-0 Cam Rod S"
for Transom "S"Cam Rod S"
for Transom "S" -
30369-66013-0 Cam Rod L"
for Transom "L"Cam Rod L"
for Transom "L" -
30369-66014-0 Cam Rod UL"
for Transom "UL"Cam Rod UL"
for Transom "UL" -
31951407-0310 Spring Pin, 3-10Spring Pin, 3-10
-
32951407-0312 Spring Pin, 3-12Spring Pin, 3-12
-
33369-66031-0 Bushing, Cam RodBushing, Cam Rod
-
34369-66021-1 0-Ring, 2.5-4.90-Ring, 2.5-4.9
-
35332-66032-0 0-Ring, 2.4-15.40-Ring, 2.4-15.4
-
36369-66033-0 Stonner, Cam Rod BushingStonner, Cam Rod Bushing
-
37910103-5625 Bolt
or 9101 13-5625Bolt
or 9101 13-5625
