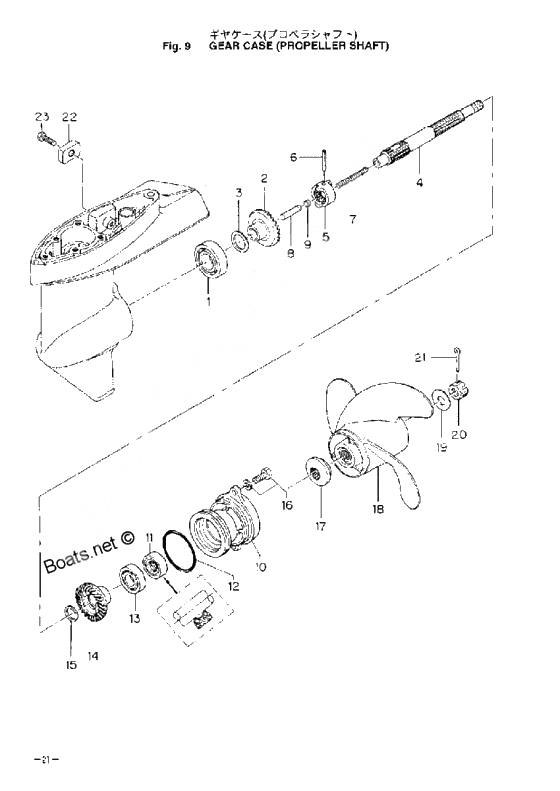

Gear case (propeller shaft) для Tohatsu M4C - 2003 года выпуска

№

Артикул

Название
1

9601-0-6004 Ball Bearing

Ball Bearing

2 440 ₽
2

369-64010-2 Bevel Gear A Ass'y (with Bushing)

Bevel Gear A Ass'y (with Bushing)

7 890 ₽
2

369-64015-0 Shim 21-28-0.15

Shim 21-28-0.15

660 ₽
3

369-64014-0 Shim 21-28-0.1

Shim 21-28-0.1

660 ₽
4

369-64211-1 Propeller Shaft

Propeller Shaft

13 170 ₽
5

301-64215-1 Clutch

Clutch

5 370 ₽
6

301-64217-0 Pin Clutch

Pin Clutch

260 ₽
7

393-64221-0 Spring Clutch

Spring Clutch

410 ₽
8

369-64223-0 Push Rod Clutch

Push Rod Clutch

1 220 ₽
9

369-64222-0 Spring holder clutch

Spring holder clutch

470 ₽
10

369S60101-1 Housing, Propeller Shaft

Housing, Propeller Shaft

2 860 ₽
11

369-60111-0 Oil Seal

Oil Seal

1 230 ₽
12

345-65015-0 O-Ring

O-Ring

360 ₽
13

9601-0-6002 Ball Bearing

Ball Bearing

2 440 ₽
14

369-64030-2 Bevel Gear C

Bevel Gear C

0 ₽
15

369-64032-0 Washer

Washer

630 ₽
17

369-64231-1 Thrust holder propeller

Thrust holder propeller

650 ₽
18

369-64518-1 Prop 4/5/6hp (7.9 dia. x 9 pitch)

Prop 4/5/6hp (7.9 dia. x 9 pitch)

9 630 ₽
369B64518-1 Prop 4/5/6hp (7.9 dia. x 9 pitch)

Prop 4/5/6hp (7.9 dia. x 9 pitch)

22 030 ₽
18

369-64514-1 Prop 4/5/6hp (7.7 dia. x 7 pitch)
4C Std. for Transom S", "L""

Prop 4/5/6hp (7.7 dia. x 7 pitch)
4C Std. for Transom S", "L""

9 630 ₽
3R1B64514-1 Prop 4/5/6hp (7.7 dia. x 7 pitch)

Prop 4/5/6hp (7.7 dia. x 7 pitch)

16 840 ₽
18

369-64516-2 Prop 4/5/6hp (7.7 dia. x 8 pitch)
5B/5BS Std. for Transom S", "L", and "UL""

Prop 4/5/6hp (7.7 dia. x 8 pitch)
5B/5BS Std. for Transom S", "L", and "UL""

9 340 ₽
3R1B64516-1 Prop 4/5/6hp (7.7 dia. x 8 pitch)

Prop 4/5/6hp (7.7 dia. x 8 pitch)

0 ₽
19

369-64124-0 Washer

Washer

840 ₽
20

369-64121-0 Nut Propeller

Nut Propeller

1 230 ₽
21

951503-0318 New part

New part

240 ₽
22

3H6-60218-0 Anode
5B # 16748-, 4C # 80467-

Anode
5B # 16748-, 4C # 80467-

980 ₽
23

910103-0616 Bolt

Bolt

140 ₽
1

9601-0-6004 Ball Beari ng, 6004

Ball Beari ng, 6004

2 440 ₽
2

369-64010-2 Bevel Gear "A"

Bevel Gear "A"

7 890 ₽
3

369-64014-0 Shim, 21-28-0.1

Shim, 21-28-0.1

660 ₽
3

369-64015-0 Shim, 21-28-0.15

Shim, 21-28-0.15

660 ₽
4

369-64211-1 Propeller Shaft

Propeller Shaft

13 170 ₽
5

301-64215-1 Clutch

Clutch

5 370 ₽
6

301-64217-0 Spring Pin, 3.5-28

Spring Pin, 3.5-28

260 ₽
7

393-64221-0 Spring, Clutch

Spring, Clutch

410 ₽
8

369-64223-0 Push Rod, Clutch

Push Rod, Clutch

1 220 ₽
9

369-64222-0 Spring Holder, Clutch

Spring Holder, Clutch

470 ₽
10

369S60101-1 Housing, Prooeller Shaft

Housing, Prooeller Shaft

2 860 ₽
11

369-60111-0 Oil Seal 15-28-10

Oil Seal 15-28-10

1 230 ₽
12

345-65015-0 0-Ring, 3.2-47

0-Ring, 3.2-47

360 ₽
13

9601-0-6002 Ball Bearing, 6002

Ball Bearing, 6002

2 440 ₽
14

369-64030-2 Bevel Gear C"

Bevel Gear C"

0 ₽
15

369-64032-0 Washer, 15.2-19-1.9

Washer, 15.2-19-1.9

630 ₽
16

910113-5616 Bolt

Bolt

120 ₽
17

369-64231-1 Thrust Holder, Propeller

Thrust Holder, Propeller

650 ₽
18

369-64514-1 Propeller ( 7) , 3 x 7.9 x 7.0
4C Std for Transom "S", "L"

Propeller ( 7) , 3 x 7.9 x 7.0
4C Std for Transom "S", "L"

9 630 ₽
18

369-64516-2 Propeller (8) , 3 X 7.9 X 7.3
5B/5BS Std for Transom "s","L", "UL"

Propeller (8) , 3 X 7.9 X 7.3
5B/5BS Std for Transom "s","L", "UL"

9 340 ₽
18

369-64518-1 Propeller ( 9) , 3 x 7.9 x 9.0

Propeller ( 9) , 3 x 7.9 x 9.0

9 630 ₽
19

369-64124-0 Washer, 10.5-28-2

Washer, 10.5-28-2

840 ₽
20

369-64121-0 Nut, Propeller

Nut, Propeller

1 230 ₽
21

951503-0318 Split Pin, 3-18

Split Pin, 3-18

240 ₽
22

3H6-60218-0 Anode
5B # 16748- 4C # 80467-

Anode
5B # 16748- 4C # 80467-

980 ₽
23

910103-0616 Bolt

Bolt

140 ₽
