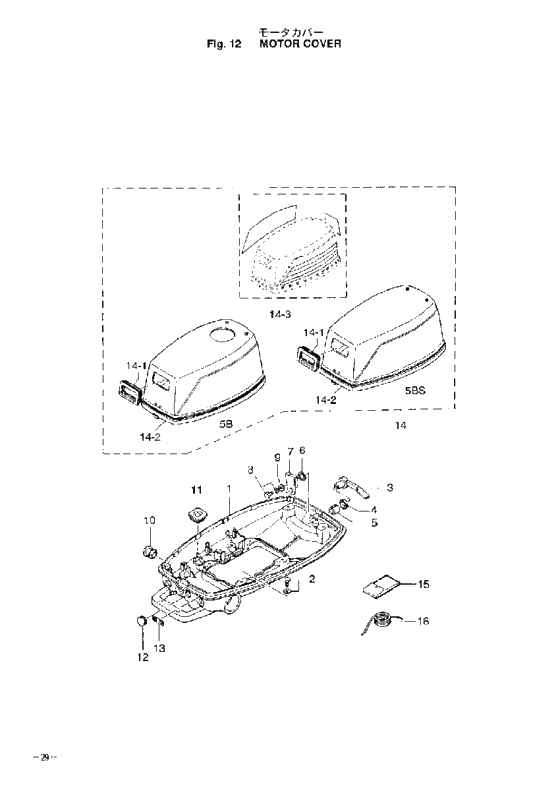

Motor cover для Tohatsu M4C - 2003 года выпуска
-
№АртикулНазвание
-
1369S67100-3 Motor cover lowerMotor cover lower
-
3369S67141-1 Hook leverHook lever
-
4338-67147-0 New partNew part
-
5369-67105-0 BushingBushing
-
6941403-1400 New partNew part
-
7369-67142-0 Cover HookCover Hook
-
8910103-6612 BoltBolt
-
93C8-66308-0 New part
or 3C8-66308-0New part
or 3C8-66308-0 -
10369-67187-0 Grommet throttle leverGrommet throttle lever
-
11369-67188-0 Grommet starter lock rodGrommet starter lock rod
-
12345-67117-0 New partNew part
-
13369-72016-0 Lable fuel cockLable fuel cock
-
14369S67500-3 Motor cover upper ass'y
Unique for Integral TankMotor cover upper ass'y
Unique for Integral Tank -
14-13B2-67503-0 Seal rubber staterSeal rubber stater
-
14-23F3-67501-0 Seal rubber upper motor coverSeal rubber upper motor cover
-
14-33GP-87801-0 Decal set mfs4c (aqua marine blue)Decal set mfs4c (aqua marine blue)
-
15369-72100-0 TOOL ASS'YTOOL ASS'Y
-
16312-72201-0 Safety Rope
тИЕ4-1000Safety Rope
тИЕ4-1000 -
1369S67100-3 Motor Cover LowerMotor Cover Lower
-
2910113-5616 BoltBolt
-
3369S67141-1 Hook LeverHook Lever
-
4338-67147-0 Seal Ring, Hook LeverSeal Ring, Hook Lever
-
5369-67105-0 Bushing, Hook LeverBushing, Hook Lever
-
6941403-1400 Wave Washer, d=14Wave Washer, d=14
-
7369-67142-0 Cover HookCover Hook
-
8910103-6612 BoltBolt
-
93R0-66308-0 Washer, 6-16-1.5
or 3C8-66308-0Washer, 6-16-1.5
or 3C8-66308-0 -
10369-67187-0 Grommet, Throttle LeverGrommet, Throttle Lever
-
11369-67188-0 Grommet, Starter Lock RodGrommet, Starter Lock Rod
-
12345-67117-0 Grommet, 17-2.7Grommet, 17-2.7
-
13369-72016-0 Label, Fuel CockLabel, Fuel Cock
-
14369S67500-3 Motor Cover Upper
UNIQUE for integral tankMotor Cover Upper
UNIQUE for integral tank -
14-13B2-67503-0 * Seal Rubber, Starter* Seal Rubber, Starter
-
14-23F3-67501-0 * Seal Ru bber, Motor Cover Upper* Seal Ru bber, Motor Cover Upper
-
14-33F9S87801-1 * Decal Set* Decal Set
-
15369-72100-0 ToolTool
-
16312-72201-0 Rope
<1> 4-1000Rope
<1> 4-1000
