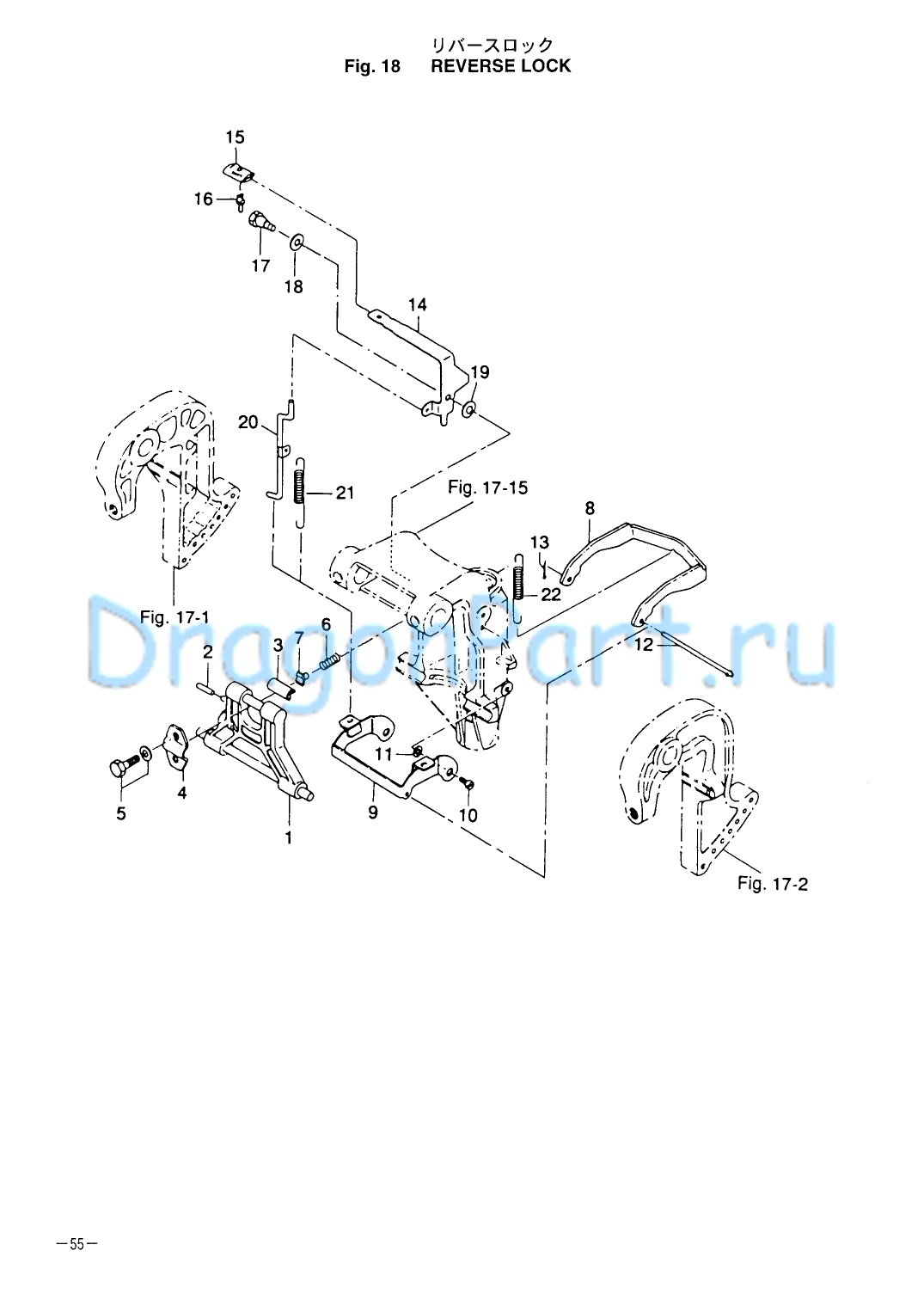

REVERSE LOCK для Tohatsu M40C - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    349S62993-1 Tilt Stopper
    #043187XC〜 Old Parts No. 349S62431-1
    Tilt Stopper
    #043187XC〜 Old Parts No. 349S62431-1
  • 2
    951403-0640 Spring Pin, 6-40
    Spring Pin, 6-40
  • 3
    346-62437-0 Bushing, 10.2-12-29.5
    Bushing, 10.2-12-29.5
  • 4
    346-62439-0 Set Plate, Tilt Stopper
    Set Plate, Tilt Stopper
  • 18*5
    910113-5820 Bolt
    Bolt
  • 6
    3C8-62421-1 Friction Spring, Tilt Stopper
    Friction Spring, Tilt Stopper
  • 7
    346-62438-0 Set Piece
    Set Piece
  • 8
    346-66322-0 Reverse Lock
    Reverse Lock
  • 9
    349-66313-0 Arm, Reverse Lock
    Arm, Reverse Lock
  • 10
    336-66319-1 Shaft, Reverse Lock Arm
    Shaft, Reverse Lock Arm
  • 11
    3R0-66308-0 Washer, 6-16-1.5
    Washer, 6-16-1.5
  • 12
    346-66321-0 Rod, Reverse Lock
    Rod, Reverse Lock
  • 13
    951503-0212 Split Pin, 2-12
    Split Pin, 2-12
  • 14
    349-66311-0 Lever, Reverse Lock
    Lever, Reverse Lock
  • 15
    346-66333-0 Grip, Reverse Lock Lever
    Grip, Reverse Lock Lever
  • 16
    346-66334-0 Stopper, Grip
    Stopper, Grip
  • 17
    345-05214-1 Shaft, Reverse Lock Lever
    Shaft, Reverse Lock Lever
  • 18
    941403-0800 Wave Washer, d二8
    Wave Washer, d二8
  • 19
    3R0-66308-0 Washer, 6-16~1.5
    Washer, 6-16~1.5
  • 20
    349-66312-0 Link, Reverse Lock
    Link, Reverse Lock
  • 21
    346-66323-1 Spring, Reverse Lock Lever
    Spring, Reverse Lock Lever
  • 22
    346-66331-0 Spring "S”，Reverse Lock
    for Transom "S"
    Spring "S”，Reverse Lock
    for Transom "S"
  • 22
    3R0-66332-0 Spring 11L , Reverse Lock
    for Transom "L", "UL”
    Spring 11L , Reverse Lock
    for Transom "L", "UL”
