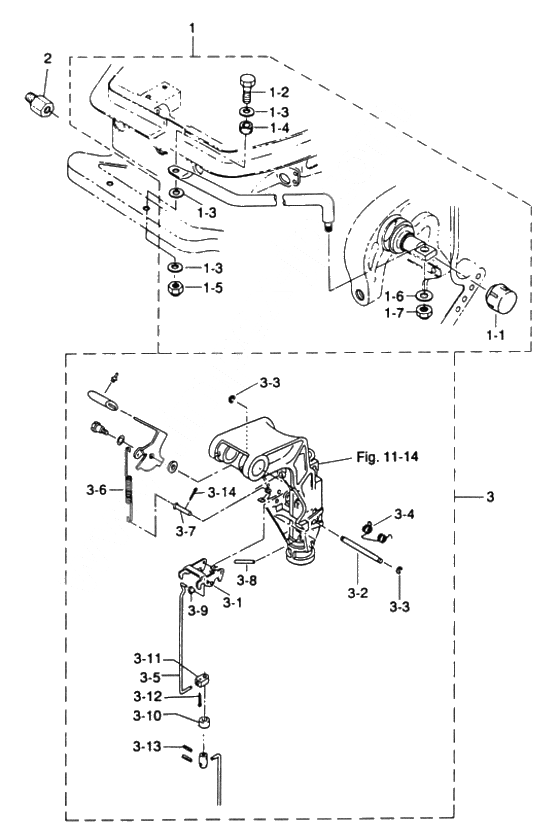

Optional parts drag link / reverse lock для Tohatsu M18E2 - 2003 года выпуска`
-
№АртикулНазвание
-
13G2-84905-0 Drag link g ass'yDrag link g ass'y
-
1-13F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
1-2910113-0840 BoltBolt
-
1-3940113-0800 WasherWasher
-
1-43G2-84914-0 Coler,8.1-10.5-6.5Coler,8.1-10.5-6.5
-
1-5930403-0800 Nylon NutNylon Nut
-
1-6353-84916-0 WasherWasher
-
1-7353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
2353-84904-0 Spacer Drag LinkSpacer Drag Link
-
33G2-66901-0 Shift lever,reverse lock kitShift lever,reverse lock kit
-
3-13B2-66322-0 Reverse lock b
TO BE PURCHASED AS AN ASSYReverse lock b
TO BE PURCHASED AS AN ASSY -
3-10350-66337-0 Spacer reverse lock link
TO BE PURCHASED AS AN ASSYSpacer reverse lock link
TO BE PURCHASED AS AN ASSY -
3-11350-66302-0 Joint reverse lock link
TO BE PURCHASED AS AN ASSYJoint reverse lock link
TO BE PURCHASED AS AN ASSY -
3-12951503-0212 Split Pin
TO BE PURCHASED AS AN ASSYSplit Pin
TO BE PURCHASED AS AN ASSY -
3-13951403-0312 Spring Washer
TO BE PURCHASED AS AN ASSYSpring Washer
TO BE PURCHASED AS AN ASSY -
3-14951503-1610 Split Pin
TO BE PURCHASED AS AN ASSYSplit Pin
TO BE PURCHASED AS AN ASSY -
3-23G2-66324-0 Shaft Reverse Lock B
TO BE PURCHASED AS AN ASSYShaft Reverse Lock B
TO BE PURCHASED AS AN ASSY -
3-3945303-0500 E-Ring
TO BE PURCHASED AS AN ASSYE-Ring
TO BE PURCHASED AS AN ASSY -
3-4369-62434-0 Spring Tilt Stopper
TO BE PURCHASED AS AN ASSYSpring Tilt Stopper
TO BE PURCHASED AS AN ASSY -
3-53G2-66305-0 Link reverse lock b
TO BE PURCHASED AS AN ASSYLink reverse lock b
TO BE PURCHASED AS AN ASSY -
3-63G2-62434-0 Spring b, reverse lock lever
TO BE PURCHASED AS AN ASSYSpring b, reverse lock lever
TO BE PURCHASED AS AN ASSY -
3-7350-66223-0 Pin shift rod lever
TO BE PURCHASED AS AN ASSYPin shift rod lever
TO BE PURCHASED AS AN ASSY -
3-8951403-0535 Spring Washer
TO BE PURCHASED AS AN ASSYSpring Washer
TO BE PURCHASED AS AN ASSY -
3-9345-05224-0 Rod snap,5-2.5
TO BE PURCHASED AS AN ASSYRod snap,5-2.5
TO BE PURCHASED AS AN ASSY
