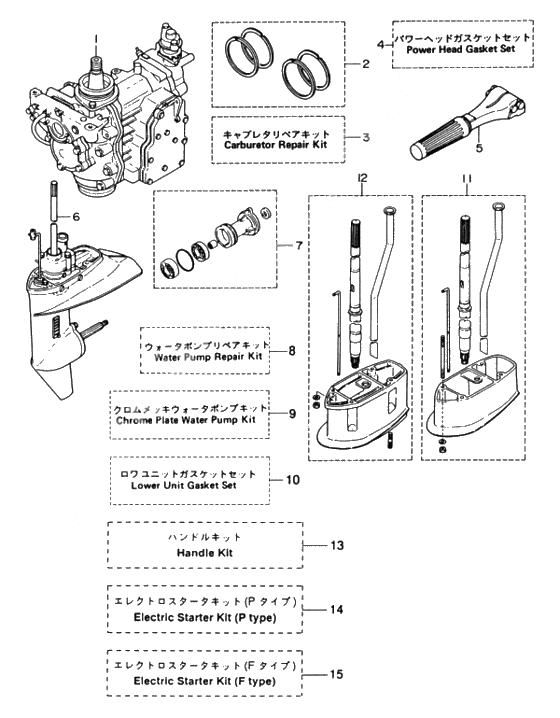

Assembly - kit для Tohatsu M18E2 - 2003 года выпуска`
-
№АртикулНазвание
-
13M4B87100-0 Short block 18e/2-stroke (cw nut9311211600m)
INCL. ENGINE BASE GASKET & SPARK PLUGShort block 18e/2-stroke (cw nut9311211600m)
INCL. ENGINE BASE GASKET & SPARK PLUG -
3M7B87090-B Short block 18e/2-stroke (cw nut9311211600m)Short block 18e/2-stroke (cw nut9311211600m)
-
2350-87123-0 Кольца поршневыеКольца поршневые
-
2350-00011-0 Кольцо поршняКольцо поршня
-
2350-87124-0 Кольца поршневыеКольца поршневые
-
2350-00014-0 Кольцо поршняКольцо поршня
-
33G2-87122-0 Carburetor Rerair KitCarburetor Rerair Kit
-
33C8-02011-0 Packing carburetorPacking carburetor
-
33C8-03169-0 PlugPlug
-
33E3-03147-0 Float ValveFloat Valve
-
33C8-03126-0 Float Arm PinFloat Arm Pin
-
33C8-03125-0 FloatFloat
-
33C8-03121-0 O-RingO-Ring
-
3922532-0412 ScrewScrew
-
922532-6412 ScrewScrew
-
33C8-03193-0 PackingPacking
-
33C8-03182-0 Gaket plate coverGaket plate cover
-
43G4-87121-0 Power Head Gasket SetPower Head Gasket Set
-
4350-01005-0 New partNew part
-
4346-01032-0 New partNew part
-
4350-02305-0 New partNew part
-
4350-02306-0 Gasket exhaust cover innerGasket exhaust cover inner
-
4350-00121-0 Oil Seal
UPPER SIDEOil Seal
UPPER SIDE -
4338-01403-0 O-RingO-Ring
-
4350-01215-5 Oil Seal
LOWER SIDEOil Seal
LOWER SIDE -
4350-02104-0 New partNew part
-
4350-02105-1 Gasket b inlet manifoldGasket b inlet manifold
-
43C8-03121-0 O-RingO-Ring
-
43C8-02011-0 Packing carburetorPacking carburetor
-
43C8-03193-0 PackingPacking
-
4350-61012-1 Gasket drive shaft housingGasket drive shaft housing
-
4350-01215-1 Oil Seal
MOTOR COVER LOWEROil Seal
MOTOR COVER LOWER -
4350-01303-1 Gasket engine baseGasket engine base
-
43G2-02414-0 Gasket air silencerGasket air silencer
-
5398S63003-0 Handle ass'yHandle ass'y
-
3M3S63005-0 Handle ass'yHandle ass'y
-
6398S87301-0 Lower unit ass'y s
FOR TRANSOM SLower unit ass'y s
FOR TRANSOM S -
6398S87302-0 Lower unit ass'y l
FOR TRANSOM LLower unit ass'y l
FOR TRANSOM L -
7362S87323-0 Propeller shaft housing ass'yPropeller shaft housing ass'y
-
8362-87322-0 ウォ-タ-ポンプリペアキットウォ-タ-ポンプリペアキット
-
8334-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
8350-65022-0 New partNew part
-
8350-65011-1 New partNew part
-
8350-65025-0 New partNew part
-
8910113-5652 New partNew part
-
9362-65231-0 Chrome Plate Water Pump KitChrome Plate Water Pump Kit
-
9334-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
9362-65238-0 Liner water pump case(chrome)Liner water pump case(chrome)
-
9362-65239-0 Guide Plate Water Pump(chrome)Guide Plate Water Pump(chrome)
-
10398-87321-0 Lower Unit Gasket SetLower Unit Gasket Set
-
10362-02312-0 Gasket, Exhaust PipeGasket, Exhaust Pipe
-
10332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
10121-32071-0 O-Ring
PROPELLER SHAFTO-Ring
PROPELLER SHAFT -
10346-65013-0 Oil' seal, 17-30-9
PROPELLER SHAFTOil' seal, 17-30-9
PROPELLER SHAFT -
10332-60223-0 Oil Seal
PUMP CASE LOWEROil Seal
PUMP CASE LOWER -
10336-62415-0 O-Ring
PUMP CASE LOWER / CAM ROD BUSHINGO-Ring
PUMP CASE LOWER / CAM ROD BUSHING -
10332-66021-0 O-Ring
CAM RODO-Ring
CAM ROD -
11398S87313-0 Extension housing kit ll
FOR TRANSOM LLExtension housing kit ll
FOR TRANSOM LL -
12398S87314-0 Extension housing ket ul
FOR TRANSOM ULExtension housing ket ul
FOR TRANSOM UL -
13398S63000-1 Handle kitHandle kit
-
13398S63003-0 Handle ass'yHandle ass'y
-
3M3S63005-0 Handle ass'yHandle ass'y
-
13346-63201-1 Bolt handle aBolt handle a
-
13345-63207-0 Collar, 9.8-12-7.5Collar, 9.8-12-7.5
-
13350-63064-0 Universal pinionUniversal pinion
-
13350-63061-1 Throttle shaft bThrottle shaft b
-
13945303-0600 E-RingE-Ring
-
13350-63063-0 Supporter, throttle shaftSupporter, throttle shaft
-
13910103-7630 Bolt
OR 910113-7630Bolt
OR 910113-7630 -
13345-66226-0 Grommet, 17-3Grommet, 17-3
-
13353-83728-0 Cable PinCable Pin
-
353-83728-1 Cable PinCable Pin
-
13930106-0600 New partNew part
-
13346-05234-0 New partNew part
-
13353-83719-0 WasherWasher
-
13951603-0800 R-PinR-Pin
-
13345-05224-0 Rod snap,5-2.5Rod snap,5-2.5
-
13398-63717-0 Link RodLink Rod
-
13346-67165-0 Grommet b motor cover lowerGrommet b motor cover lower
-
13353-67162-0 Grommet, Bater CordGrommet, Bater Cord
-
143G2-76100-2 Electric starter kit (p type)Electric starter kit (p type)
-
143G2-06091-1 Flywheel cup (with ring gear)Flywheel cup (with ring gear)
-
14350-76010-0 New partNew part
-
14350-76011-0 Bracket starter motorBracket starter motor
-
14916103-0830 BoltBolt
-
14941303-0800 Spring WasherSpring Washer
-
14346-76040-0 Starter SolenoidStarter Solenoid
-
14910103-6618 BoltBolt
-
14398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
143G2-76060-0 Rectifier completeRectifier complete
-
14921503-0525 Stud BoltStud Bolt
-
14941303-0500 Spring WasherSpring Washer
-
143B2-76120-0 Battery cable +/- (new style) 8.2 ft.
L=2000Battery cable +/- (new style) 8.2 ft.
L=2000 -
3V1-76120-2 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
143B2-76062-0 Fuse wire ass'y
L=355Fuse wire ass'y
L=355 -
143B2-76147-1 STARTER CORD
L=200STARTER CORD
L=200 -
143A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
143B7-76145-0 Terminal CapTerminal Cap
-
14309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
14353-84398-0 Band Lead WireBand Lead Wire
-
14398-76049-0 ПроводкаПроводка
-
143G2-76055-1 Bracket,choke solenoidBracket,choke solenoid
-
14921503-6512 Stud BoltStud Bolt
-
14361-76050-0 Choke SolenoidChoke Solenoid
-
14921503-6408 Stud BoltStud Bolt
-
143G2-76057-1 Hook,choke solenoidHook,choke solenoid
-
14951403-0312 Spring WasherSpring Washer
-
143C7-03271-0 O-RingO-Ring
-
14910103-0612 New partNew part
-
143G2-76142-0 Ground cordGround cord
-
153G2-76400-1 Electric starter kit (f type)Electric starter kit (f type)
-
153G2-06091-1 Flywheel cup (with ring gear)Flywheel cup (with ring gear)
-
15350-76010-0 New partNew part
-
15350-76011-0 Bracket starter motorBracket starter motor
-
15916103-0830 BoltBolt
-
15941303-0800 Spring WasherSpring Washer
-
15346-76040-0 Starter SolenoidStarter Solenoid
-
15910103-6618 BoltBolt
-
15398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
153G2-76060-0 Rectifier completeRectifier complete
-
15921503-0525 Stud BoltStud Bolt
-
15941303-0500 Spring WasherSpring Washer
-
153B2-76120-0 Battery cable +/- (new style) 8.2 ft.
L=2000Battery cable +/- (new style) 8.2 ft.
L=2000 -
3V1-76120-2 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
153B2-76062-0 Fuse wire ass'y
L=355Fuse wire ass'y
L=355 -
153B2-76147-1 STARTER CORD
L=200STARTER CORD
L=200 -
153A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
153B7-76145-0 Terminal CapTerminal Cap
-
15350-76081-0 Bracket neutral switchBracket neutral switch
-
15921503-6612 Stud BoltStud Bolt
-
15398-76080-0 Neutral Switch Ass'yNeutral Switch Ass'y
-
15398-76083-0 Actuator Neutral SwitchActuator Neutral Switch
-
153M4-76084-0 Spacer neutral switchSpacer neutral switch
-
153B7-63731-0 WasherWasher
-
15353-84398-0 Band Lead WireBand Lead Wire
-
15361-76026-0 Main Switch Ass'yMain Switch Ass'y
-
15910103-0612 New partNew part
-
153G2-76142-0 Ground cordGround cord
