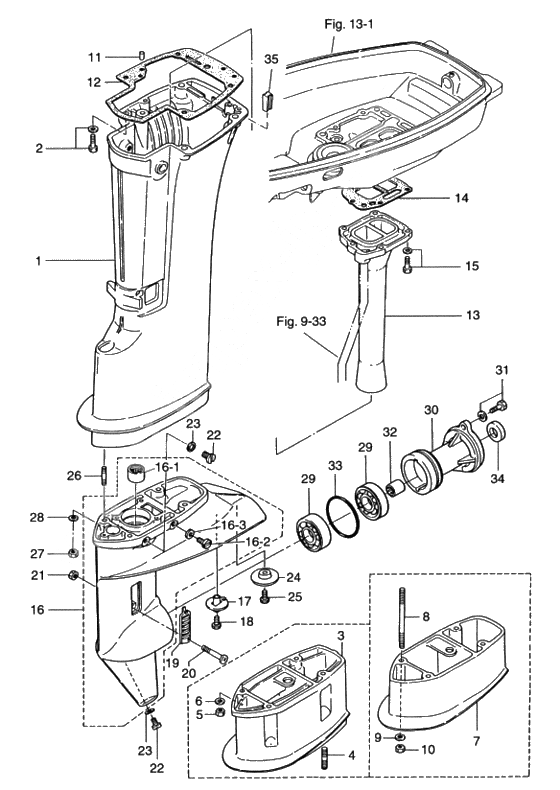

Drive shaft housing - gear case для Tohatsu M18E2 - 2003 года выпуска
-
№АртикулНазвание
-
1350S61020-3 Drive shaft housing (s)
FOR TRANSOM SDrive shaft housing (s)
FOR TRANSOM S -
1350S61030-3 Drive shaft housing l
FOR TRANSOM L ULDrive shaft housing l
FOR TRANSOM L UL -
2910113-5845 BoltBolt
-
3350S61110-0 Extension housing ul
FOR TRANSOM ULExtension housing ul
FOR TRANSOM UL -
4915313-0825 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL -
5930113-0800 NutNut
-
63P0-66233-0 New partNew part
-
7350S61120-0 Extension housing ll
FOR TRANSOM LLExtension housing ll
FOR TRANSOM LL -
8915313-8100 Stud Bolt
FOR TRANSOM LLStud Bolt
FOR TRANSOM LL -
93P0-66233-0 New partNew part
-
10930113-0800 NutNut
-
11345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
12350-61012-1 Gasket drive shaft housingGasket drive shaft housing
-
13362-02311-0 Exhaust PipeExhaust Pipe
-
14362-02312-0 Gasket, Exhaust PipeGasket, Exhaust Pipe
-
15910103-5625 Bolt
OR 910113-5625Bolt
OR 910113-5625 -
16398S60000-0 New partNew part
-
16-1350-60211-0 Needle BearingNeedle Bearing
-
16-2332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
16-3332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
17369-60206-0 Water StrainerWater Strainer
-
18921803-0620 Stud Bolt
OR 921803-0620Stud Bolt
OR 921803-0620 -
19362-60206-0 Water StrainerWater Strainer
-
20921513-0430 Stud Bolt
OR 921503-0430Stud Bolt
OR 921503-0430 -
21930406-0400 Nylon NutNylon Nut
-
22332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
23332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
243V9-60218-0 AnodeAnode
-
25910113-0616 Bolt
OR 910103-0616Bolt
OR 910103-0616 -
26915313-0825 Stud BoltStud Bolt
-
27930113-0800 NutNut
-
283P0-66233-0 New partNew part
-
299601-0-6205 Подшипник 25x52x15Подшипник 25x52x15
-
30362S60101-0 Housing propeller shaftHousing propeller shaft
-
31910113-5625 BoltBolt
-
32362-60211-0 Needle BearingNeedle Bearing
-
33121-32071-0 O-RingO-Ring
-
34346-65013-0 Oil' seal, 17-30-9Oil' seal, 17-30-9
-
35398-61207-0 Grommet idle portGrommet idle port
