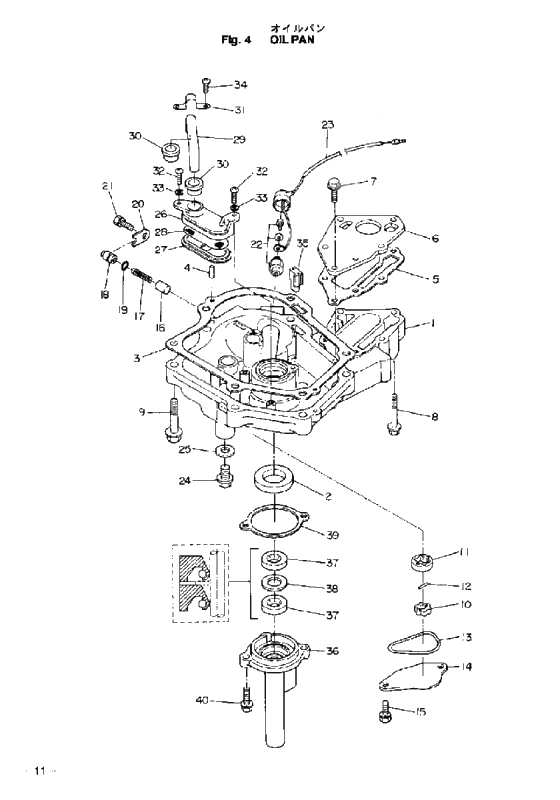

Oil pan для Tohatsu MFS6A - 2002 года выпуска`
-
№АртикулНазвание
-
13H6B07401-0 Oil pan comp.Oil pan comp.
-
2334-00122-0 Oil seal 25-40-8Oil seal 25-40-8
-
33H6-07402-0 Gasket, Oil PanGasket, Oil Pan
-
4345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
53H6-02305-0 Gasket, Exh.plateGasket, Exh.plate
-
63H6-02302-0 Elate, ExhaustElate, Exhaust
-
7910114-5620 BoltBolt
-
8910114-5640 BoltBolt
-
9910124-5840 BoltBolt
-
103H6-07601-0 Rotor, Oil PumpInnerRotor, Oil PumpInner
-
113H6-07602-0 Rotor,oil Pump OuterRotor,oil Pump Outer
-
123H6-07603-0 Pin, Oil PumpPin, Oil Pump
-
133H6-07605-0 O-ring,oil pumpO-ring,oil pump
-
143H6-07606-0 Cover, Oil PumpCover, Oil Pump
-
15910121-6616 BoltBolt
-
163H6-07621-0 Plunger, ControlPlunger, Control
-
173H6-07622-0 Spring, PressureSpring, Pressure
-
183H6-07623-0 Spring WasherSpring Washer
-
19345-66021-0 O-RingO-Ring
-
203H6-67115-0 Cover, PlungerCover, Plunger
-
223H6-07611-0 Switch, Oil PressureSwitch, Oil Pressure
-
233H6-07613-0 Lead wire,oil pressure switchLead wire,oil pressure switch
-
243H6-07405-0 Bolt, DrainBolt, Drain
-
253H6-07406-0 WasherWasher
-
263H6-07411-0 Body, StrainerBody, Strainer
-
273H6-07412-0 Cup, StrainerCup, Strainer
-
283H6-07413-0 Mesh StrainerMesh Strainer
-
293H6-07415-0 Pipe, StrainerPipe, Strainer
-
303H6-07416-0 Stopper, StrainerStopper, Strainer
-
313H6-07417-0 Stopper, StrainrStopper, Strainr
-
323C8-02420-0 Bolt 5-16 PrecoatedBolt 5-16 Precoated
-
33940121-0500 WasherWasher
-
34921521-6512 Stud BoltStud Bolt
-
353H6-07404-0 Gromet, Oil PanGromet, Oil Pan
-
36369-01210-4 Head, Crank CaseHead, Crank Case
-
37369-01215-0 Oil SealOil Seal
-
38369-01217-0 SpacerSpacer
-
39369-01214-0 Gasket Crank Case HeadGasket Crank Case Head
Все узлы модели:
- Accessories
- Assembly kit
- Bracket & reverse lock
- Camshaft, valve
- Carburetor, fuel pump
- Cylinder, cylinder head
- Drive shaft housing s
- Fuel tank (remote)
- Gear case (drive shaft)
- Gear case (propeller shaft)
- Handle, throttle
- Magneto
- Motor cover
- • Oil pan
- Piston & crank shaft
- Recoil starter, starter lock
- Remote control
- Shift
