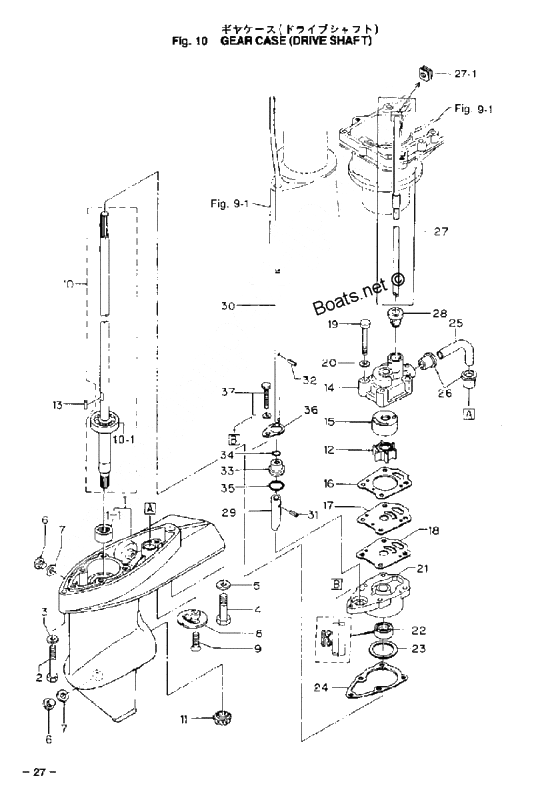

Gear case (drive shaft) для Tohatsu MFS6A - 2002 года выпуска`
-
№АртикулНазвание
-
19601-0-6300 Ball BearingBall Bearing
-
1369S60000-1 Gear case assyGear case assy
-
1-1369-60211-0 Needle BearingNeedle Bearing
-
3940103-0600 WasherWasher
-
4916103-0835 BoltBolt
-
5940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
6332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
7332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
8369-60206-0 Water StrainerWater Strainer
-
9921803-0620 Stud BoltStud Bolt
-
10369-64301-0 Drive Shaft SDrive Shaft S
-
10369-64302-0 Drive shaft lDrive shaft l
-
10369-64303-0 Drive Shaft ULDrive Shaft UL
-
11369-64020-2 Bevel Gear BBevel Gear B
-
12369-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
13369-65022-0 Key water pump impellerKey water pump impeller
-
14369-65016-0 Water Pump CaseWater Pump Case
-
15369-65011-0 Liner Water Pump CaseLiner Water Pump Case
-
16369-65018-0 Gasket water pump caseGasket water pump case
-
17369-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
18369-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
21369-65017-1 Pump Case LowerPump Case Lower
-
22369-60223-0 Oil SealOil Seal
-
23369-64081-1 Shim, 26. 5-34. 8-0.1Shim, 26. 5-34. 8-0.1
-
23369-64082-1 Shim, 26. 5-34. 8-0.15Shim, 26. 5-34. 8-0.15
-
24369-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
25369-65035-0 Water Pipe LowerWater Pipe Lower
-
26369-65036-0 Seal Rubber Water Pipe LowerSeal Rubber Water Pipe Lower
-
27369-65100-0 Water pipe sWater pipe s
-
27369-65110-0 Water Pipe LWater Pipe L
-
27369-65120-0 Water Pipe ULWater Pipe UL
-
27-1369-65195-0 Grommet, Water Pipe UpperGrommet, Water Pipe Upper
-
28369-65014-0 Seal rubber lower water pipeSeal rubber lower water pipe
-
29369-66011-0 Clutch CamClutch Cam
-
30369-66012-0 Cam rod sCam rod s
-
30369-66013-0 Cam Rod LCam Rod L
-
30369-66014-0 Cam Rod ULCam Rod UL
-
31951407-0310 Spring WasherSpring Washer
-
32951407-0312 Spring WasherSpring Washer
-
33369-66031-0 Bushing Cam RodBushing Cam Rod
-
34369-66021-1 O?????2.5-4.9O?????2.5-4.9
-
35332-66032-0 O?????2.4-15.4O?????2.4-15.4
-
36369-66033-0 Stopper Cam Rod BushingStopper Cam Rod Bushing
