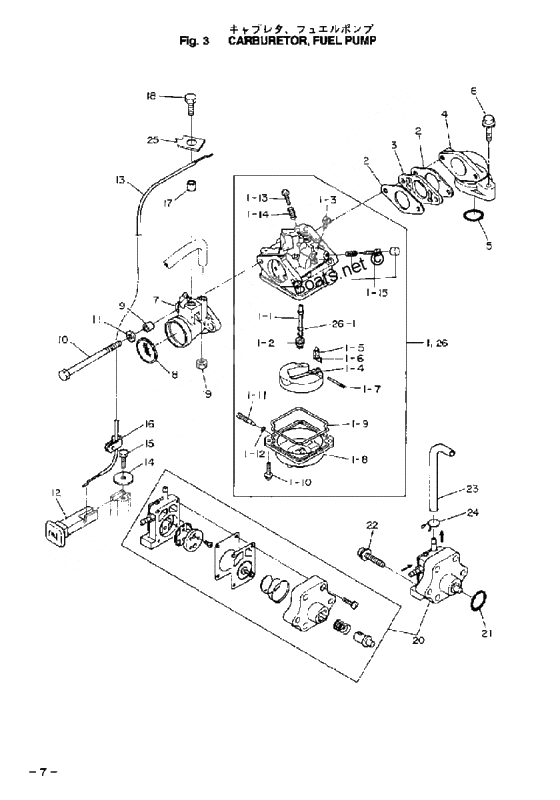

Carburetor, fuel pump для Tohatsu MFS6A - 2002 года выпуска`
-
№АртикулНазвание
-
13R4-03200-0 Carburetor ass'yCarburetor ass'y
-
1-13R4-03252-0 MAIN NOZZLE(6A)MAIN NOZZLE(6A)
-
1-10922503-6412 Stud BoltStud Bolt
-
1-113H6-03292-0 Drain ScrewDrain Screw
-
1-123H6-03293-0 O-ring,drain ScrewO-ring,drain Screw
-
1-133H6-03265-0 Stop ScrewStop Screw
-
1-143H6-03267-0 Spring,stop ScrewSpring,stop Screw
-
1-153H6-03266-0 Pilot screw setPilot screw set
-
1-23R4-03251-0 Main jet #75Main jet #75
-
1-33R4-03254-0 Pilot jet #45Pilot jet #45
-
1-43H6-03231-0 FloatFloat
-
1-53H6-03240-0 Float ValveFloat Valve
-
1-63H6-03244-0 ClipClip
-
1-73H6-03232-0 Aym Pin, FloatAym Pin, Float
-
1-83H6-03221-0 Float ChamberFloat Chamber
-
1-93H6-03222-0 Gasket,float ChamberGasket,float Chamber
-
23H6-02011-0 Gasket, carburetorGasket, carburetor
-
33H6-03952-1 InsulatorInsulator
-
43H6B02010-0 Inlet ManifoldInlet Manifold
-
53H6-02104-0 O-RingO-Ring
-
6910124-5625 BoltBolt
-
73H6-02411-0 Air SilencerAir Silencer
-
83H6-02603-0 Flam TrapFlam Trap
-
93A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
11940103-0600 WasherWasher
-
123H6-67151-0 Choke RodChoke Rod
-
133H6-67192-0 Wire,choke linkWire,choke link
-
14346-67115-0 WasherWasher
-
15910103-0612 New partNew part
-
16345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
173H6-76079-0 Collar 6.2-9-7Collar 6.2-9-7
-
18910103-0616 BoltBolt
-
19930103-0600 NutNut
-
203H6-04000-0 Fuel pumpFuel pump
-
213H6-07422-0 New partNew part
-
22921503-7630 Stud BoltStud Bolt
-
233H6-02204-0 Fuel pipe,4.5l-115Fuel pipe,4.5l-115
-
24338-02215-0 ClipClip
-
253H6-63505-0 Holder, CableHolder, Cable
