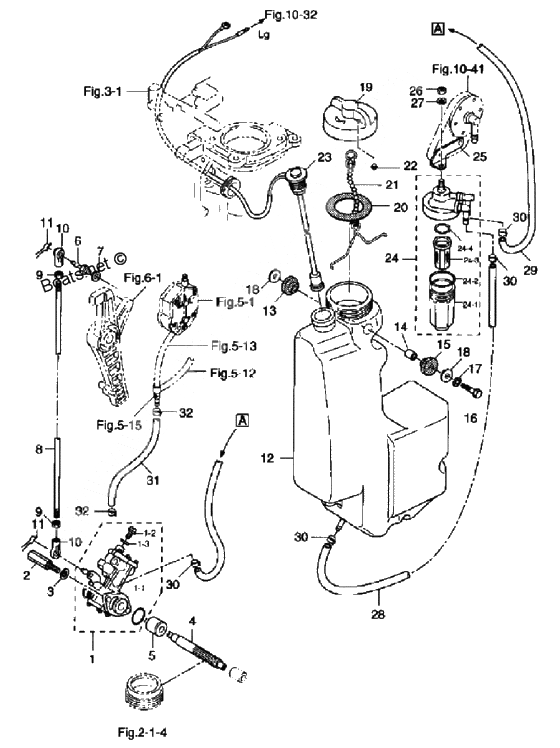

Oil pump (automixing) для Tohatsu M80A - 2002 года выпуска`
-
№АртикулНазвание
-
13B7-09000-1 Oil Pump Ass'y
, 80A #11088-, 90A # 18666-Oil Pump Ass'y
, 80A #11088-, 90A # 18666- -
1-13B7-09002-0 O-RingO-Ring
-
1-23B7-09004-0 Bolt, Air VentBolt, Air Vent
-
1-33B7-09006-0 WasherWasher
-
23B7-09050-0 Bolt, oil pumpBolt, oil pump
-
3941303-0600 New partNew part
-
43B7-09065-0 Driven gear, oil pumpDriven gear, oil pump
-
53B7-09069-0 BushingBushing
-
63B7-05244-0 Ball joint cBall joint c
-
83B7-09053-0 Link rod, oil pumpLink rod, oil pump
-
103B7-05243-0 New partNew part
-
11951703-0500 Snap RetainerSnap Retainer
-
123B7-71010-1 Oil tank 90a
80A #11163-, 90A # 19698-Oil tank 90a
80A #11163-, 90A # 19698- -
3B7-71010-2 Oil tank 90aOil tank 90a
-
133B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
14346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
15346-67113-0 Mount RubberMount Rubber
-
16910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
18346-67115-0 WasherWasher
-
193C8-71015-0 Cap Oil Tank
80A #11163-, 90A # 19698-Cap Oil Tank
80A #11163-, 90A # 19698- -
203C8-71016-0 Gasket 36-52-2Gasket 36-52-2
-
213C8-71017-0 Hook Tank CapHook Tank Cap
-
223C8-71018-0 Check Valve Oil TankCheck Valve Oil Tank
-
233B7-71020-0 Oil Level SensorOil Level Sensor
-
3B7-71020-1 Oil Level SensorOil Level Sensor
-
243C7-71030-0 Filter Ass'yFilter Ass'y
-
24-13B7-02237-0 CupCup
-
24-23B7-02235-0 O-Ring AO-Ring A
-
24-33C7-71033-0 FilterFilter
-
24-43B7-02236-0 O???? bO???? b
-
253B7-71035-0 Plate, oil filterPlate, oil filter
-
27941303-0800 Spring WasherSpring Washer
-
303B7-09054-0 Clip @ 9.5Clip @ 9.5
-
3AB-35143-0 Clip @ 9.5Clip @ 9.5
-
323C7-09056-0 Clip 8.5Clip 8.5
