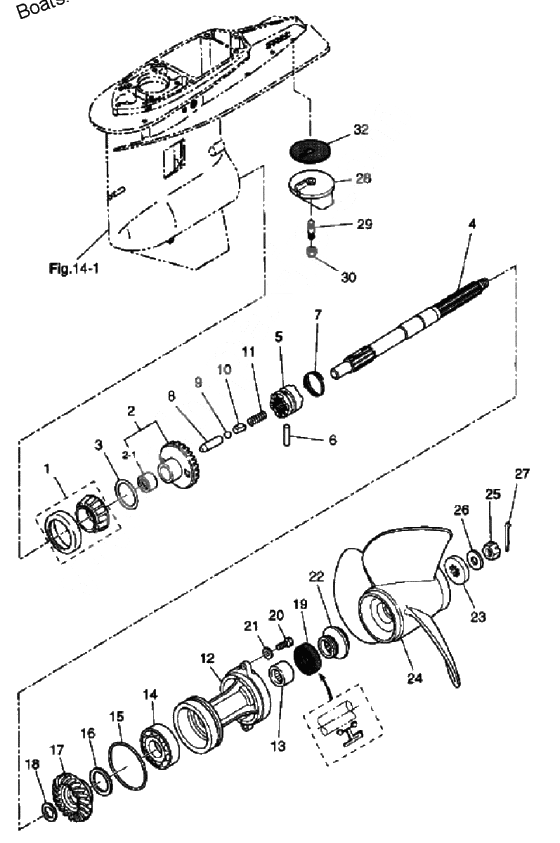

Gear case (propeller shaft) для Tohatsu M80A - 2002 года выпуска

№

Артикул

Название
1

3C7-60215-0 Bearing, 30209

Bearing, 30209
2

3D8-64010-0 Bevel Gear A Ass'y
80A #11181-, 90A #21080-

Bevel Gear A Ass'y
80A #11181-, 90A #21080-
2-1

3B7-64011-0 Needle Bearing, 25-32-26

Needle Bearing, 25-32-26
3

3B7-64015-0 Shim, 47-57-0.15

Shim, 47-57-0.15
3

3B7-64016-0 Shim, 47-57-0.1

Shim, 47-57-0.1
4

3B7-64211-0 Propeller Shaft

Propeller Shaft
5

3C7-64215-0 Clutch
80A #11181-, 90A #21080-

Clutch
80A #11181-, 90A #21080-
6

3B7-64218-0 Clutch Pin

Clutch Pin
7

3B7-64219-1 Snap, Clutch Pin
for R & L Rotation

Snap, Clutch Pin
for R & L Rotation
8

3B7-64223-0 Push rod, clutch

Push rod, clutch
9

965002-1609 Ball

Ball
10

3B7-64222-0 Spring Holder, Clutch

Spring Holder, Clutch
11

346-64221-0 Spring Clutch

Spring Clutch
12

3B7S60101-1 Housing propeller shaft

Housing propeller shaft
13

3B7-60211-0 Needle Bearing, 30-40-30

Needle Bearing, 30-40-30
14

9601-0-6208 Ball bearing, 6208

Ball bearing, 6208
15

3B7-60103-0 O-Ring

O-Ring
16

3B7-64036-0 Shim , 42-50-0.15

Shim , 42-50-0.15
16

3B7-64037-0 Shim, 42-50-0.1

Shim, 42-50-0.1
17

3C7-64093-0 Bevel Gear C
80A #11181-, 90A #21080-

Bevel Gear C
80A #11181-, 90A #21080-
18

3B7-64032-0 Washer, t=3.2

Washer, t=3.2
18

3B7-64034-0 Washer, t=3.0

Washer, t=3.0
18

3B7-64035-0 Washer, t=3.0

Washer, t=3.0
19

3B7-60111-0 Oil seal, 30-50-12

Oil seal, 30-50-12
20

3C7-60108-0 Bolt 8-30 precoated

Bolt 8-30 precoated
21

940203-0800 Washer

Washer
22

3B7-64231-1 Thrust holder, propeller

Thrust holder, propeller
23

3B7-64233-0 Stopper Propeller

Stopper Propeller
24

3C7-64541-0 Prop m-17 70c 90a 115a2 120a2 140a2 (13.25 x 17 pitch)
or A19 3B7-64541-1

Prop m-17 70c 90a 115a2 120a2 140a2 (13.25 x 17 pitch)
or A19 3B7-64541-1
24

3C7-64549-0 Prop m-19 70c 90a 115a2 120a2 140a2 (13.0 x 19 pitch)
or A23 3B7-64549-0

Prop m-19 70c 90a 115a2 120a2 140a2 (13.0 x 19 pitch)
or A23 3B7-64549-0
3N4W64541-1 Prop m-19 70c 90a 115a2 120a2 140a2 (13.0 x 19 pitch)

Prop m-19 70c 90a 115a2 120a2 140a2 (13.0 x 19 pitch)
24

3C7-64554-0 Propeller v2100(3x330x521)
or A25 3B7-64554-0

Propeller v2100(3x330x521)
or A25 3B7-64554-0
24

3B7-64523-1 Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)

Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)
3N4B64523-1 Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)

Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)
24

3B7-64527-1 Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)

Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)
3N4B64527-1 Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)

Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)
24

3B7-64532-1 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)

Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
3N4B64532-1 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)

Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
24

3C7-64536-0 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
or A17 3B7-64536-1

Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
or A17 3B7-64536-1
3N4B64532-1 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)

Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
25

353-64121-0 Nut Propeller

Nut Propeller
26

345-64124-0 Washer

Washer
27

951503-0325 Split Pin

Split Pin
28

3B7-60217-1 Trim Tab

Trim Tab
30

930403-0800 Nylon Nut
80A #11202-, 90A #21576-

Nylon Nut
80A #11202-, 90A #21576-
32

3B7-60219-0 Packing, Trim Tab

Packing, Trim Tab
