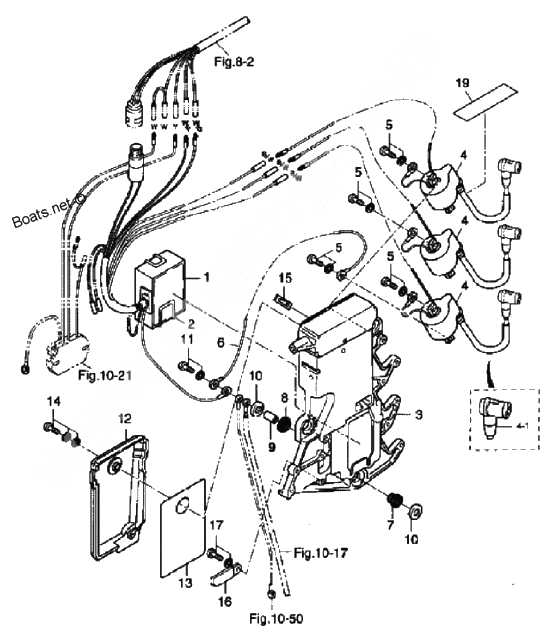

Electric parts (c.d. unit) для Tohatsu M80A - 2002 года выпуска`
-
№АртикулНазвание
-
13B7-06160-1 C.D. Unit
80A #11176-, 90A #20995-C.D. Unit
80A #11176-, 90A #20995- -
23B7-06165-0 Band, c.d. unitBand, c.d. unit
-
33B7-06901-0 Electric bracket
80A #11214-, 90A #22365-Electric bracket
80A #11214-, 90A #22365- -
43B7-06050-1 Ignition coil w/ resistanceIgnition coil w/ resistance
-
3B7-06048-0 Ignition coil w/ resistanceIgnition coil w/ resistance
-
4-13C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
63B7-76142-0 Ground cordGround cord
-
73B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
8346-67113-0 Mount RubberMount Rubber
-
15353-76213-0 Fuse(20ah)Fuse(20ah)
-
16353-06972-0 ClampClamp
-
17910103-6612 BoltBolt
-
193C8-72181-0 Caution labelCaution label
