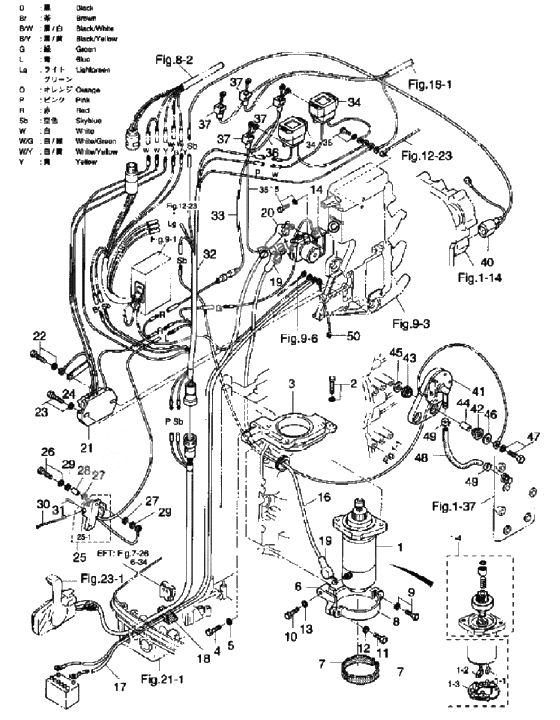

Electric parts (starter motor) для Tohatsu M80A - 2002 года выпуска`
-
№АртикулНазвание
-
1353-76010-3 Starter motor
80A #11163-, 90A #20755-Starter motor
80A #11163-, 90A #20755- -
353-76010-4 Starter motorStarter motor
-
1-1353-76012-2 Brush (+)Brush (+)
-
1-2353-76013-2 Brush (-)Brush (-)
-
1-3353-76017-0 Brush SpringBrush Spring
-
1-4353-76015-0 Pinion Ass'yPinion Ass'y
-
2910103-6835 BoltBolt
-
33B7-05101-0 Bracket upper starter motorBracket upper starter motor
-
4916114-0845 BoltBolt
-
5941322-0800 Spring WasherSpring Washer
-
6353S76006-1 Bracket starter motorBracket starter motor
-
7353-76007-1 Rubber Starter MotorRubber Starter Motor
-
8353-76009-2 Band Starter MotorBand Starter Motor
-
10910114-0845 BoltBolt
-
11910103-0820 BoltBolt
-
12940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
13941303-0800 Spring WasherSpring Washer
-
14346-76040-0 Starter SolenoidStarter Solenoid
-
15910103-6616 BoltBolt
-
163B7-76141-0 STARTER CORDSTARTER CORD
-
173B7-76120-0 Battery CordBattery Cord
-
183B7-76116-0 Grommet, cordGrommet, cord
-
193A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
203B7-76145-0 Terminal CapTerminal Cap
-
213B7-76065-3 Rectifier completeRectifier complete
-
23910114-5620 BoltBolt
-
24309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
25353-76050-2 Choke SolenoidChoke Solenoid
-
25-1353-76073-0 Plunger,Choke SolenoidPlunger,Choke Solenoid
-
26910103-6625 BoltBolt
-
27122-35083-0 Mount RubberMount Rubber
-
28353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
29346-67115-0 WasherWasher
-
30353-76057-2 Hook choke solenoidHook choke solenoid
-
31951403-0312 Spring WasherSpring Washer
-
323B7-76110-0 Cord ass'y aCord ass'y a
-
333C7-76062-1 Fuse wire ass'yFuse wire ass'y
-
343C8-72580-0 Solenoid switch a, ptt (up)
UP for New PTTSolenoid switch a, ptt (up)
UP for New PTT -
343C8-72581-0 Solenoid switch b, ptt (dn)
DN for New PTTSolenoid switch b, ptt (dn)
DN for New PTT -
34353-72580-0 Solenoid switch, power trim & tilit
for Old PTTSolenoid switch, power trim & tilit
for Old PTT -
343C8-72583-1 Cord B Solenoid Switch (L=130)
L = 130 for New PTTCord B Solenoid Switch (L=130)
L = 130 for New PTT -
353B7-72582-1 Cord a, solenoid switch(l=150)
for Old PTT, L = 150 for New PTTCord a, solenoid switch(l=150)
for Old PTT, L = 150 for New PTT -
363C7-72583-0 Cord B Solenoid Switch (L=150)
for Old PTT, L = 150 for New PTTCord B Solenoid Switch (L=150)
for Old PTT, L = 150 for New PTT -
403B7-76172-0 Over-heat sensor ass'yOver-heat sensor ass'y
-
413B7-76180-2 Pressur switch ass'yPressur switch ass'y
-
42346-67113-0 Mount RubberMount Rubber
-
433B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
44346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
47910103-6630 BoltBolt
-
49345-70114-0 ClipClip
-
503B7-76142-0 Ground cordGround cord
