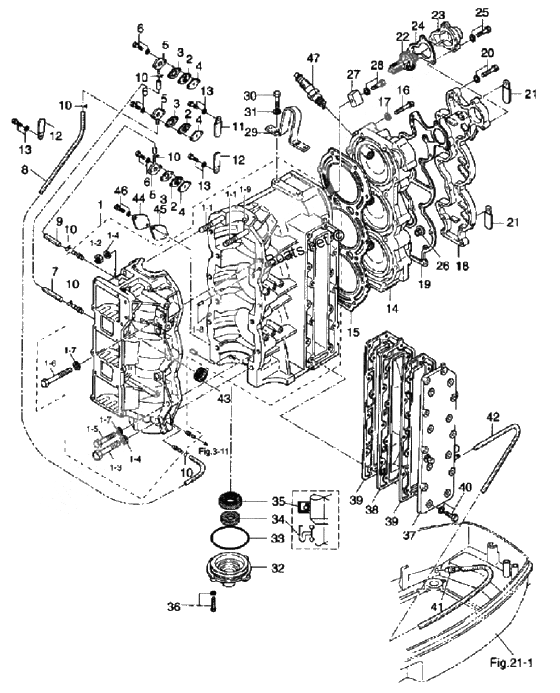

Cylinder - crank case assembly для Tohatsu M80A - 2002 года выпуска`
-
№АртикулНазвание
-
13B7B01100-0 Cylinder & Crank Case Ass'yCylinder & Crank Case Ass'y
-
1915324-1065 Stud BoltStud Bolt
-
2930121-1000 NutNut
-
23C7-01151-0 Check valve b
90A #17475-Check valve b
90A #17475- -
3916129-1065 BoltBolt
-
33C7-01153-0 Gasket a, check valve
90A #17475-Gasket a, check valve
90A #17475- -
43C7-01154-0 Gasket b, check valve
90A #17475-Gasket b, check valve
90A #17475- -
43B7-01116-0 WasherWasher
-
5353-01152-0 Cap,check valveCap,check valve
-
5916124-0850 BoltBolt
-
6916124-0865 BoltBolt
-
6910103-5525 BoltBolt
-
7345-01015-0 WasherWasher
-
8345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
9345-00117-0 Dowel PinDowel Pin
-
10338-01133-0 ClipClip
-
11353-06972-0 ClampClamp
-
12309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
13910103-6612 BoltBolt
-
143B7B01001-0 Головка цилиндровГоловка цилиндров
-
153B7-01005-0 Gasket, cylinder headGasket, cylinder head
-
183B7S01021-0 Cover Cylinder HeadCover Cylinder Head
-
3B7B01021-0 Cover Cylinder HeadCover Cylinder Head
-
193B7-01024-0 Gasket, cylinder head coverGasket, cylinder head cover
-
223B7-01030-1 サーモスタットサーモスタット
-
233B7S01031-0 Cap thermostatCap thermostat
-
3B7B01031-0 Cap thermostatCap thermostat
-
24353-01032-0 Прокладка крышки термостатаПрокладка крышки термостата
-
25910103-6640 BoltBolt
-
263B7-01046-0 PlugPlug
-
273B7-60218-1 AnodeAnode
-
28910103-5630 BoltBolt
-
293B7-01513-0 3B7-01513-03B7-01513-0
-
30910114-0820 BoltBolt
-
31941322-0800 Spring WasherSpring Washer
-
323B7-01291-1 Head lower, crank case
80A #11176-, 90A #20995-Head lower, crank case
80A #11176-, 90A #20995- -
33171-00053-0 O-RingO-Ring
-
343C7-01215-0 Oil Seal, 19.6-35-10
80A #11176-, 90A #20995-Oil Seal, 19.6-35-10
80A #11176-, 90A #20995- -
353B7-00121-0 Oil seal, 35-58-9Oil seal, 35-58-9
-
373B7-02300-0 Exhaust cover, outerExhaust cover, outer
-
383B7-02302-0 Exhaust cover, innerExhaust cover, inner
-
393B7-02305-0 Gasket, exhaust coverGasket, exhaust cover
-
41353-01138-0 Water NippleWater Nipple
-
433B7-76093-0 Grommet, 25-5Grommet, 25-5
-
443C8-09081-1 Blind plate
for Pre-Mixing TypeBlind plate
for Pre-Mixing Type -
453C8-09082-0 Gasket blind plate
80A #11171-, 90A #20945-Gasket blind plate
80A #11171-, 90A #20945- -
46910103-6616 Bolt
80A #11171-, 90A #20945-Bolt
80A #11171-, 90A #20945- -
479701-0-1009 New part
NGK B8HS-10New part
NGK B8HS-10
