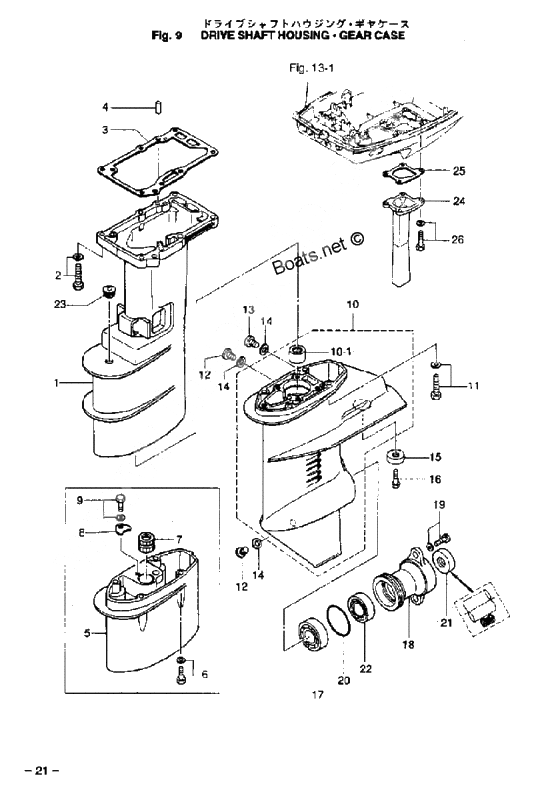

Drive shaft housing - gear case для Tohatsu M6B - 2002 года выпуска`
-
№АртикулНазвание
-
13B2S61020-0 Drive shaft housing sDrive shaft housing s
-
13B2S61030-0 Drive shaft housing lDrive shaft housing l
-
33B2-61012-0 Gasket,Drive Shaft HousingGasket,Drive Shaft Housing
-
43B2-01111-0 СтопорСтопор
-
53B2S61110-0 Extension housing ul
for Transom ULExtension housing ul
for Transom UL -
3B2S61110-2 Extension housing ulExtension housing ul
-
73B2-60003-0 Bushing Drive Shaft Housing
for Transom ULBushing Drive Shaft Housing
for Transom UL -
8353-66024-0 Stopper
for Transom ULStopper
for Transom UL -
9910103-6612 Bolt
for Transom ULBolt
for Transom UL -
103B2S60000-0 Gear case assyGear case assy
-
3AAS60000-0 Gear case assyGear case assy
-
10-13B2-60211-0 Needle bearing 15-21-16Needle bearing 15-21-16
-
12332-60005-1 Oil plugOil plug
-
332-60005-2 Oil plugOil plug
-
13332-60005-0 Oil plugOil plug
-
14332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
15338-60218-2 New partNew part
-
16910103-0616 BoltBolt
-
179601-0-6204 Ball BearingBall Bearing
-
183B2S60101-0 Housing, Propeller ShaftHousing, Propeller Shaft
-
19910103-5820 BoltBolt
-
20345-65015-0 O-RingO-Ring
-
21369-60111-0 Oil SealOil Seal
-
229601-0-6004 Ball BearingBall Bearing
-
23369-66043-0 Grommet, cam rodGrommet, cam rod
-
243B2-02311-0 Exhaust PipeExhaust Pipe
-
253B2-02312-0 Gasket exhaust pipeGasket exhaust pipe
-
26910103-5618 BoltBolt
