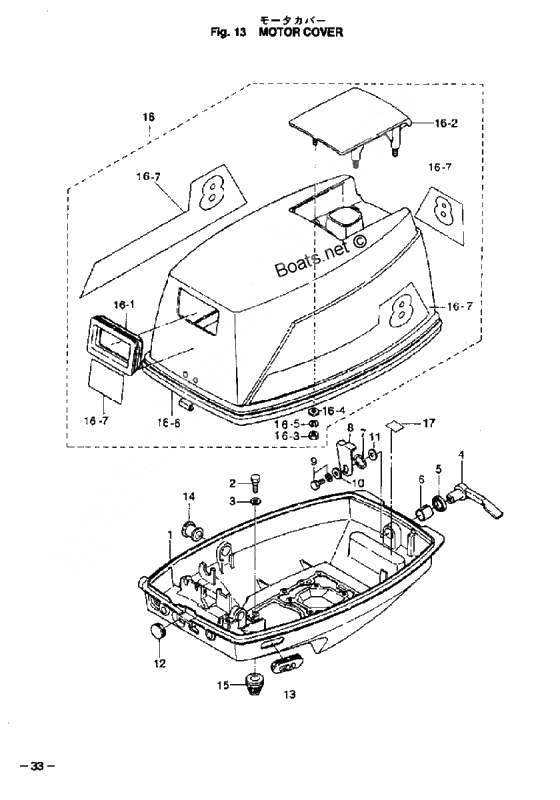

Motor cover для Tohatsu M6B - 2002 года выпуска`
-
№АртикулНазвание
-
13B2S67100-1 Motor cover lower
18B #36551-Motor cover lower
18B #36551- -
2910114-0620 BoltBolt
-
3940103-0600 WasherWasher
-
4369S67141-1 Hook leverHook lever
-
5338-67147-0 New part
тИЕ13.8 - тИЕ22 - 3.7mmNew part
тИЕ13.8 - тИЕ22 - 3.7mm -
6369-67105-0 BushingBushing
-
7941403-1400 New partNew part
-
8369-67142-0 Cover HookCover Hook
-
9910103-6612 BoltBolt
-
103C8-66308-0 New partNew part
-
113C8-67146-0 WasherWasher
-
12345-67117-0 New partNew part
-
13353-67162-0 Grommet, Bater Cord
8B #39751-Grommet, Bater Cord
8B #39751- -
143B2-67187-0 Grommet Throttle Shaft
for MF/EF TypeGrommet Throttle Shaft
for MF/EF Type -
15345-66226-0 Grommet, 17-3Grommet, 17-3
-
163R4Q67560-1 Motor cover upper mfs5/6b (aqua marine blue)
UniqueMotor cover upper mfs5/6b (aqua marine blue)
Unique -
3ASQ67645-2 Motor cover upper mfs5/6b (aqua marine blue)Motor cover upper mfs5/6b (aqua marine blue)
-
16-13B2-67503-0 Seal rubber staterSeal rubber stater
-
16-23B2-67521-0 Tilt handleTilt handle
-
16-3930103-0600 NutNut
-
16-5941303-0600 New partNew part
-
16-63B2-67501-0 Seal rubber, motor cover assySeal rubber, motor cover assy
-
16-73R4Q87801-1 Decal set mfs6b (aqua marine blue)
, UniqueDecal set mfs6b (aqua marine blue)
, Unique -
3R4-87801-1 Decal set mfs6b (aqua marine blue)Decal set mfs6b (aqua marine blue)
-
17369-72025-0 Label,spark plugLabel,spark plug
Все узлы модели:
- Bracket & reverse lock
- Carburetor
- Cylinder - crank case assembly
- Drive shaft housing - gear case
- Electric starter
- Fuel tank (remote)
- Gauges, linkage, & maintenance
- Gear shift
- Inlet - reed valve
- Magneto
- • Motor cover
- Piston & crank shaft
- Recoil starter - starter lock
- Remote control
- Steering handle (mf-ef type)
- Throttle mechanism
- Transmission - water pump
