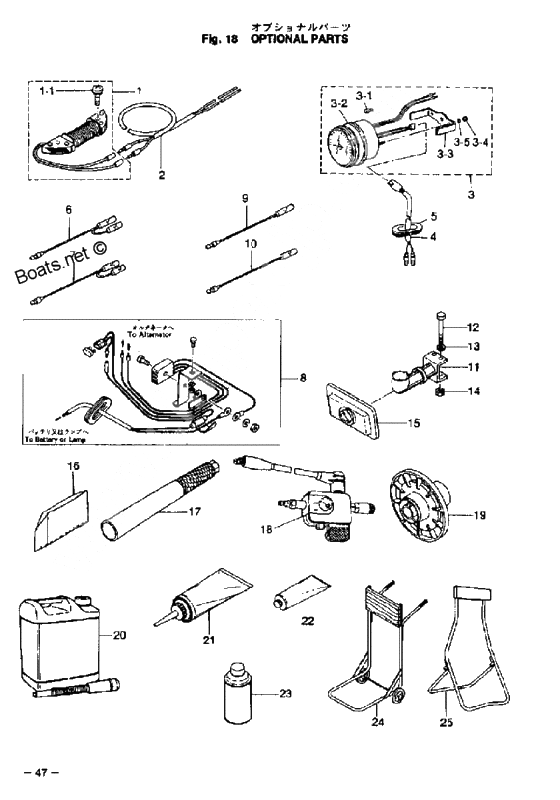

Gauges, linkage, & maintenance для Tohatsu M6B - 2002 года выпуска`
-
№АртикулНазвание
-
13B2-06123-1 Alternator set
for MF Type 12V-80WAlternator set
for MF Type 12V-80W -
1-1921521-6625 Stud BoltStud Bolt
-
2369-76167-0 Extension cord lightExtension cord light
-
33B7-72530-1 Tachometer Ass'y
UniqueTachometer Ass'y
Unique -
3-13B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
3-23B7-72656-0 Damper, MeterDamper, Meter
-
3-33B7-72661-0 Plate, FittingPlate, Fitting
-
3-4930203-0500 NutNut
-
3-5941303-0500 Spring WasherSpring Washer
-
4361-72539-0 Lead Wire TachometerLead Wire Tachometer
-
5345-67169-0 Grommet lighting cordGrommet lighting cord
-
8346-76160-1 Rectifier kit aRectifier kit a
-
113B2-05911-0 Vertical starter elbowVertical starter elbow
-
13940103-0600 WasherWasher
-
14930103-0600 NutNut
-
153B2-05912-0 Seal rubber virtical starting accessorySeal rubber virtical starting accessory
-
16375-72311-0 Vinyl motor cover
UniqueVinyl motor cover
Unique -
183F3-72540-0 Ignition CheckerIgnition Checker
-
193B2-64111-0 Test PropellerTest Propeller
-
203Y9-72304-0 Engine oil, 4.0l
Engine Oil N.A.F.N.Engine oil, 4.0l
Engine Oil N.A.F.N. -
203AC-72300-0 Tohatsu super gold (1.0 liter)
Engine Oil N.A.F.N.Tohatsu super gold (1.0 liter)
Engine Oil N.A.F.N. -
21332-72305-0 Gear oil (260cc)
30 Tubes/Case N.A.F.N.Gear oil (260cc)
30 Tubes/Case N.A.F.N. -
21332-72306-0 Gear oil (500ml)
20 Tubes/Case N.A.F.N.Gear oil (500ml)
20 Tubes/Case N.A.F.N. -
22332-72309-0 Grease (250g)
24 Tubes/Case N.A.F.N.Grease (250g)
24 Tubes/Case N.A.F.N. -
233B7-72326-0 Paint tohatsu (92-05) - nissan (00-05) 12 oz spray -silver-gray
12 Cans/Case N.A.F.N.Paint tohatsu (92-05) - nissan (00-05) 12 oz spray -silver-gray
12 Cans/Case N.A.F.N. -
24332-72401-0 Outboard stand casterOutboard stand caster
-
25332-72402-0 StandStand
Все узлы модели:
- Bracket & reverse lock
- Carburetor
- Cylinder - crank case assembly
- Drive shaft housing - gear case
- Electric starter
- Fuel tank (remote)
- • Gauges, linkage, & maintenance
- Gear shift
- Inlet - reed valve
- Magneto
- Motor cover
- Piston & crank shaft
- Recoil starter - starter lock
- Remote control
- Steering handle (mf-ef type)
- Throttle mechanism
- Transmission - water pump
