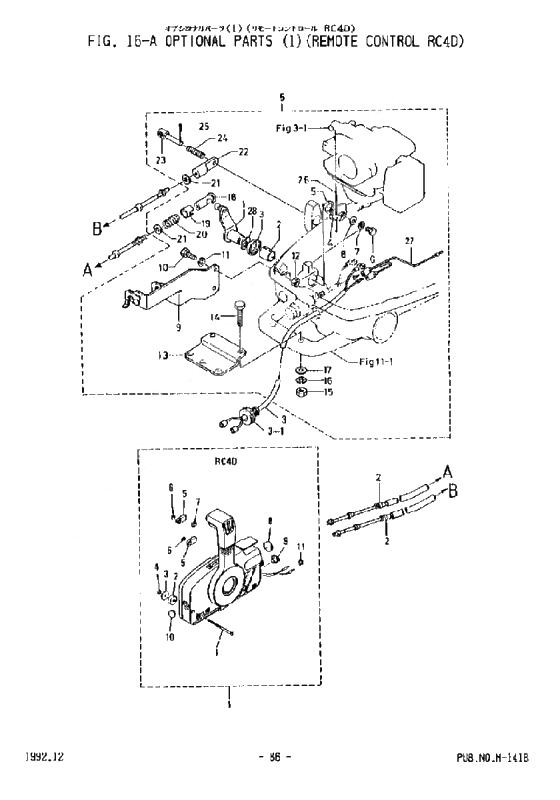

Remote control (rc4d) для Tohatsu M5B - 2002 года выпуска`
-
№АртикулНазвание
-
1373-84360-1 Single remote control box assy
-79758Single remote control box assy
-79758 -
1373-84360-2 Single remote control box ass'y (rc8d)
Gray, Not Interchangeable, 79759-Single remote control box ass'y (rc8d)
Gray, Not Interchangeable, 79759- -
13A3-84375-0 Stud BoltStud Bolt
-
1345-66226-0 Grommet, 17-3
for 5.0M R.C. CableGrommet, 17-3
for 5.0M R.C. Cable -
1369-83726-0 Throttle leverThrottle lever
-
2369-67105-0 BushingBushing
-
23A3-84374-0 SpacerSpacer
-
3369-83843-0 R.c. stop cord 3.2m
for 2-3M R.C. CableR.c. stop cord 3.2m
for 2-3M R.C. Cable -
3338-67147-0 New partNew part
-
3369-83853-0 R.c. stop cord 3.9m
for 3.5-4.5M R.C. CableR.c. stop cord 3.9m
for 3.5-4.5M R.C. Cable -
3369-83858-0 R.c. Stop Cord 5.9m
CableR.c. Stop Cord 5.9m
Cable -
3353-84371-0 WasherWasher
-
4369-83887-0 Lever throttle wireLever throttle wire
-
4369-83880-1 S.r.c. fitting parts assyS.r.c. fitting parts assy
-
4930103-0600 NutNut
-
53A3-83314-0 Terminal EyeTerminal Eye
-
5369-83888-0 Collar throttle wire leverCollar throttle wire lever
-
6945-33060-0 E-RingE-Ring
-
6910121-0612 BoltBolt
-
73A3-84376-0 GrommetGrommet
-
7941303-0600 New partNew part
-
8332-66308-0 Washer, fuel tankWasher, fuel tank
-
8369-84416-0 Grommet CGrommet C
-
9369-83820-0 Cable clip ass'yCable clip ass'y
-
9353-84321-0 GrommetGrommet
-
10910103-0616 BoltBolt
-
10361-84414-0 Grommet AGrommet A
-
11369-84418-0 Grommet EGrommet E
-
13369-83830-0 Steering Hook PlateSteering Hook Plate
-
14910114-0830 BoltBolt
-
15930103-0800 NutNut
-
16941303-0800 Spring WasherSpring Washer
-
17940-13080-0 WasherWasher
-
18332-83722-0 Ball holderBall holder
-
19332-83723-0 Cap ball jointCap ball joint
-
20332-83724-0 Spring ball jointSpring ball joint
-
21332-83725-0 WasherWasher
-
22369-83715-0 Sleeve B GuideSleeve B Guide
-
23332-83728-0 Lock PinLock Pin
-
24332-83729-0 Spring WasherSpring Washer
-
26369-83863-0 Throttle WireThrottle Wire
-
27369-83883-0 Separate Cord
for Dual Stop SwitchSeparate Cord
for Dual Stop Switch -
28941-43140-0 Wave WasherWave Washer
