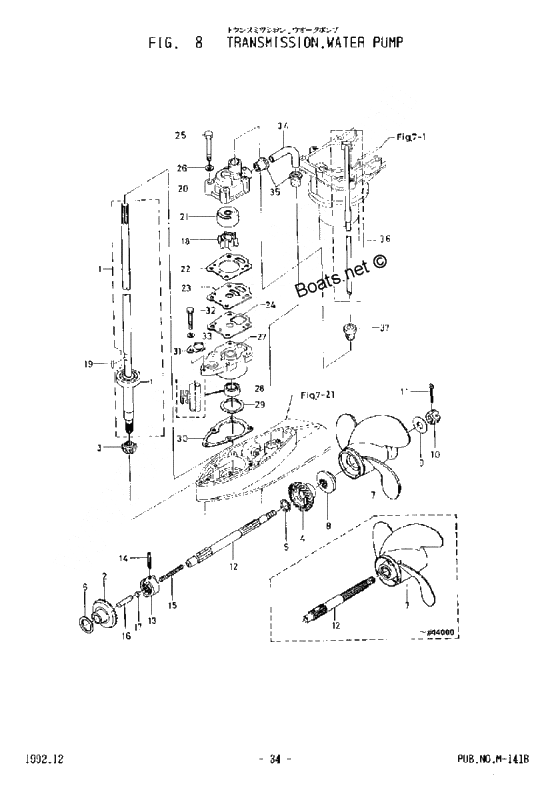

Transmission, water pump для Tohatsu M5B - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    369-64301-0 Drive Shaft S
    (w/Bearing)
    Drive Shaft S
    (w/Bearing)
  • 1
    369-64302-0 Drive shaft l
    (w/Bearing)
    Drive shaft l
    (w/Bearing)
  • 1
    369-64303-0 Drive Shaft UL
    (w/Bearing)
    Drive Shaft UL
    (w/Bearing)
  • 1
    9601-0-6300 Ball Bearing
    (#6300)
    Ball Bearing
    (#6300)
  • 2
    369-64010-0 Bevel gear a (with bushing)
    -57900
    Bevel gear a (with bushing)
    -57900
  • 2
    369-64010-1 Bevel gear a assy (with busing)
    Only New Parts are Interchangeable with Older Parts, 57901-
    Bevel gear a assy (with busing)
    Only New Parts are Interchangeable with Older Parts, 57901-
  • 3
    369-64020-0 Bevel Gear B
    Bevel Gear B
  • 4
    369-64030-0 Bevel gear c (with bushing)
    -57900
    Bevel gear c (with bushing)
    -57900
  • 4
    369-64030-1 Bevel gear c (with bushing)
    Only New Parts are Interchangeable with Older Parts, 57901-
    Bevel gear c (with bushing)
    Only New Parts are Interchangeable with Older Parts, 57901-
  • 5
    369-64032-0 Washer
    Washer
  • 6
    369-64012-0 T=0.1.0.15
    T=0.1.0.15
    T=0.1.0.15
    T=0.1.0.15
  • 7
    369-64516-1 Propeller (8) 7.9 x 7.9 x 3
    Standard Propeller for S, L, and XL T, Only New Part are Interchangeable with Older Parts, -44000
    Propeller (8) 7.9 x 7.9 x 3
    Standard Propeller for S, L, and XL T, Only New Part are Interchangeable with Older Parts, -44000
  • 7
    369-64518-0 Propeller (9) 7.9 x 9.0 x 3
    -44000
    Propeller (9) 7.9 x 9.0 x 3
    -44000
  • 7
    369-64518-1 Prop 4/5/6hp (7.9 dia. x 9 pitch)
    Only New Parts are Interchangeable with Older Parts, 44001-
    Prop 4/5/6hp (7.9 dia. x 9 pitch)
    Only New Parts are Interchangeable with Older Parts, 44001-
  • 369B64518-1 Prop 4/5/6hp (7.9 dia. x 9 pitch)
    Prop 4/5/6hp (7.9 dia. x 9 pitch)
  • 7
    369-64514-0 Propeller (7) 7.9 x 7.0 x 3
    -44000
    Propeller (7) 7.9 x 7.0 x 3
    -44000
  • 7
    369-64514-1 Prop 4/5/6hp (7.7 dia. x 7 pitch)
    Only New Parts are Interchangeable with Older Parts, 44001-
    Prop 4/5/6hp (7.7 dia. x 7 pitch)
    Only New Parts are Interchangeable with Older Parts, 44001-
  • 3R1B64514-1 Prop 4/5/6hp (7.7 dia. x 7 pitch)
    Prop 4/5/6hp (7.7 dia. x 7 pitch)
  • 7
    369-64516-0 Propeller (8) 7.9 x 7.9 x 3
    Standard Propeller for S, L, and XL T, -44000
    Propeller (8) 7.9 x 7.9 x 3
    Standard Propeller for S, L, and XL T, -44000
  • 8
    369-64231-0 Thrust holder, propeller
    Thrust holder, propeller
  • 9
    369-64124-0 Washer
    Washer
  • 10
    369-64121-0 Nut Propeller
    Nut Propeller
  • 11
    951503-0318 New part
    Only New Parts are Interchangeable with Older Parts, 64801-
    New part
    Only New Parts are Interchangeable with Older Parts, 64801-
  • 12
    369-64211-0 Propeller Shaft
    -44000
    Propeller Shaft
    -44000
  • 12
    369-64211-1 Propeller Shaft
    Not Interchangeable, 44001-
    Propeller Shaft
    Not Interchangeable, 44001-
  • 13
    301-64215-1 Clutch
    Interchangeable with Older and Newer Parts, 57901-
    Clutch
    Interchangeable with Older and Newer Parts, 57901-
  • 14
    301-64217-0 Pin Clutch
    Pin Clutch
  • 15
    369-64221-0 Spring Clutch
    Spring Clutch
  • 16
    369-64223-0 Push Rod Clutch
    Push Rod Clutch
  • 17
    369-64222-0 Spring holder clutch
    Spring holder clutch
  • 18
    369-65021-0 Impeller, water pump
    Impeller, water pump
  • 19
    369-65022-0 Key water pump impeller
    Key water pump impeller
  • 20
    369-65016-0 Water Pump Case
    Water Pump Case
  • 21
    369-65011-0 Liner Water Pump Case
    Liner Water Pump Case
  • 22
    369-65018-0 Gasket water pump case
    Gasket water pump case
  • 23
    369-65025-0 Guide Plate Water Pump
    Guide Plate Water Pump
  • 24
    369-65029-0 Gasket Pump Guide Plate
    Gasket Pump Guide Plate
  • 25
    916-13064-5 Bolt, front
    Bolt, front
  • 26
    940-13060-0 Washer
    Washer
  • 27
    369-65017-0 Pump Case Lower
    Pump Case Lower
  • 28
    369-60223-0 Oil Seal
    D10-D24-8MM
    Oil Seal
    D10-D24-8MM
  • 29
    369-64023-0 Shim
    T=0.1.0.15
    Shim
    T=0.1.0.15
  • 30
    369-65020-0 Gasket Water Pump Case Lower
    Gasket Water Pump Case Lower
  • 31
    369-66033-0 Stopper Cam Rod Bushing
    Stopper Cam Rod Bushing
  • 32
    910114-0625 Bolt
    Bolt
  • 34
    369-65035-0 Water Pipe Lower
    Water Pipe Lower
  • 35
    369-65036-0 Seal Rubber Water Pipe Lower
    Seal Rubber Water Pipe Lower
  • 36
    369-65100-0 Water pipe s
    Water pipe s
  • 36
    369-65110-0 Water Pipe L
    Grommet Upper GU
    Water Pipe L
    Grommet Upper GU
  • 36
    369-65120-0 Water Pipe UL
    Grommet Upper GU
    Water Pipe UL
    Grommet Upper GU
  • 37
    369-65014-0 Seal rubber lower water pipe
    Seal rubber lower water pipe
