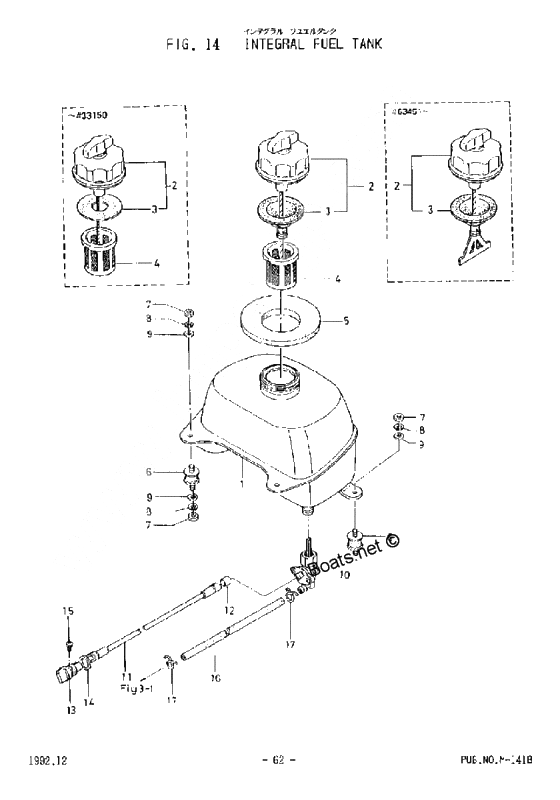

Fuel tank (integral) для Tohatsu M5B - 2002 года выпуска`
-
№АртикулНазвание
-
1369-70056-0 Fuel tank completeFuel tank complete
-
4369-70012-0 Strainer, tank cap
-63450Strainer, tank cap
-63450 -
5369-70036-0 Seal rubber fuel tankSeal rubber fuel tank
-
6369-70057-0 Mount rubber fuel tankMount rubber fuel tank
-
7930103-0600 NutNut
-
8941303-0600 New partNew part
-
9332-66308-0 Washer, fuel tank
D6.5-D16-1.5MMWasher, fuel tank
D6.5-D16-1.5MM -
11369-70061-0 Rod fuel cockRod fuel cock
-
12353-72544-0 Tube,fuel cock rodTube,fuel cock rod
-
13369-70062-0 Knob fuel cock rodKnob fuel cock rod
-
14369-70063-0 Rubber Fuel Cock Rod KnobRubber Fuel Cock Rod Knob
-
15921-53641-0 Screw (with spring washer)Screw (with spring washer)
-
169810-5-0210 Fuel pipe
D5-D10-210MMFuel pipe
D5-D10-210MM -
17338-02215-0 ClipClip
Все узлы модели:
- Bracket & reverse lock
- Carburetor
- Cylinder, crank case assy
- Drive shaft housing, gear case
- • Fuel tank (integral)
- Fuel tank (remote)
- Gear shift
- Handle, throttle
- Magneto
- Motor cover (for domestic)
- Motor cover (for export)
- Piston & crank shaft
- Recoil starter, starter lock
- Remote control (rc4d)
- Remote control box
- Remote control
- Tools
- Transmission, water pump
