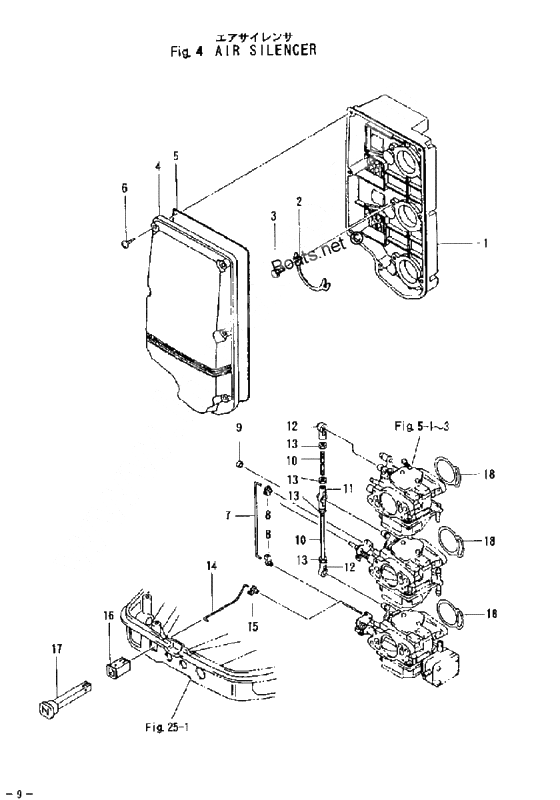

Air silencer для Tohatsu M50D2 - 2002 года выпуска`
-
№АртикулНазвание
-
13E3-02411-0 Air SilencerAir Silencer
-
23C8-02417-0 Lock plate air silencerLock plate air silencer
-
33C8-02420-0 Bolt 5-16 PrecoatedBolt 5-16 Precoated
-
43C8-02415-0 Cover air silencerCover air silencer
-
53C8-02418-0 РезинаРезина
-
63F3-02423-0 Screw 5-30Screw 5-30
-
73C8-67191-0 C-link 3-90C-link 3-90
-
8346-67196-1 Rod Snap 3-bRod Snap 3-b
-
9353-03271-0 Stopper choke solenoid hook
E TYPEStopper choke solenoid hook
E TYPE -
10348-63717-0 Handle link rodHandle link rod
-
113B7-05229-0 Cap b, ball jointCap b, ball joint
-
123B7-05243-0 New partNew part
-
143C8-67192-0 Rod choke linkRod choke link
-
15346-67196-1 Rod Snap 3-bRod Snap 3-b
-
163C8-67153-0 Bushing, choke knobBushing, choke knob
-
173C8-67151-0 Choke knobChoke knob
-
3C8-67151-1 Choke knobChoke knob
-
183E3-02011-0 Packing carburetorPacking carburetor
